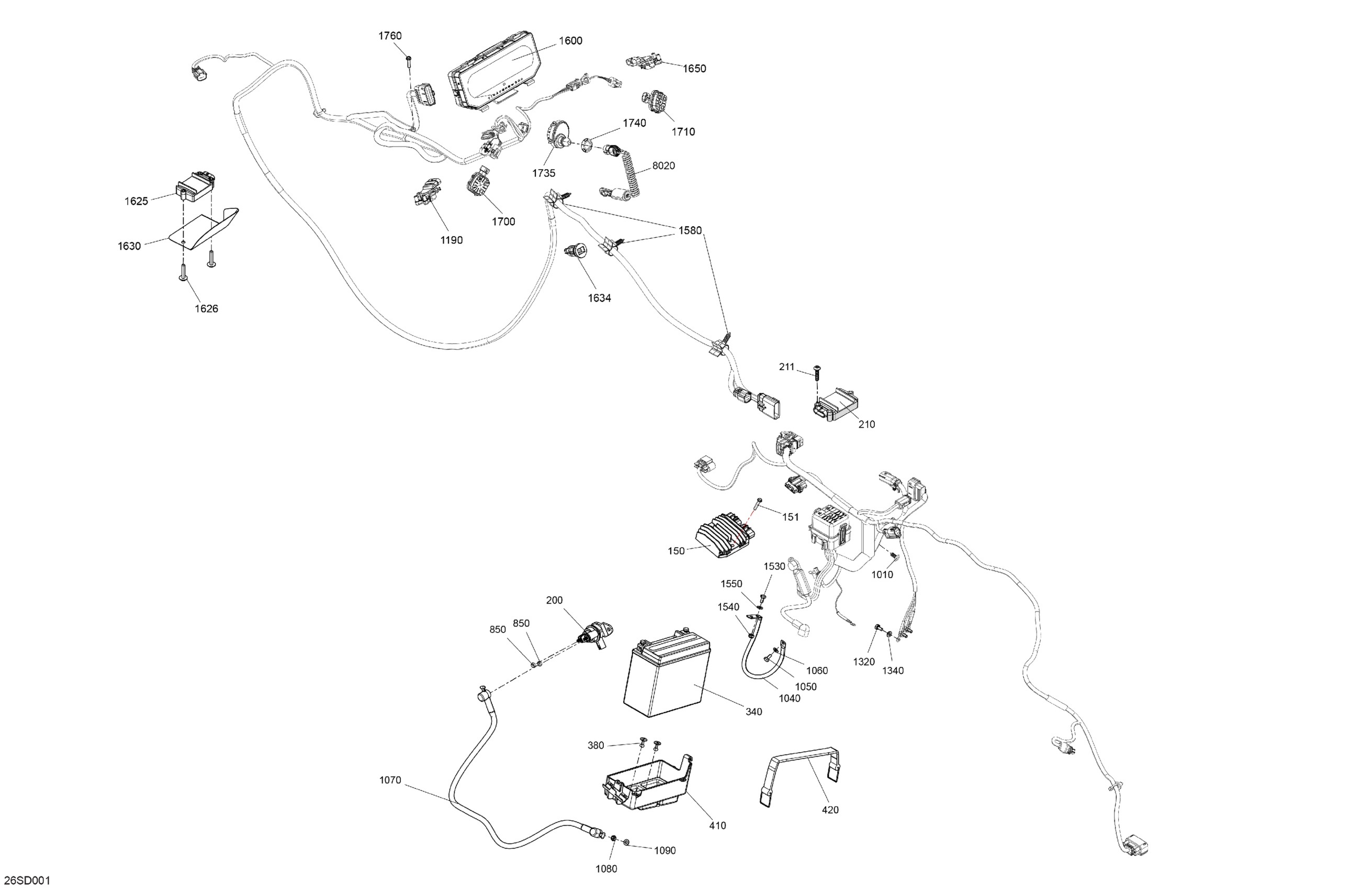

Sea-doo RXT X 325 - 10RA - X package - Fiery Red Metallic - Audio,2024 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

151

Hex. Flange Screw K50 X 25

250000680

$1.72

200

Starter Relay

278003012

$35.07

210

Relay

278004052

$92.28

211

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

340

Battery 12 Volt 18AH

296000449

$126.07

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1010

Black Dart

293730010

$0.81

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.92

1600

Multifunction Gauge Full Size Color

278004181

$925.57

1625

GPS

278004506

$85.77

1626

Hexagonal Cap Screw M6 X35

250000399

$3.61

1630

Bent Deflector

278003976

$10.03

1634

Wiring Grommet

293720121

$3.59

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1731

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

1732

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

1735

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

1740

Specialized Nut

278004274

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

8020

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$58.47
