Description

Price

10b

Rivet | Model-T3

293150067

$2.29

10c

Strap Retaining

270000933

$5.47

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10d1

Hex. Flange Nut M8

233181600

$0.86

10h

Strap Anchor

270000854

$5.30

10j

Pop Rivet 3/16

293150186

$1.63

20

Hull Insert

293450384

$28.57

40

Hex. Flange Screw M6.81 x 20

243162060

$3.30

50

Reinforcement

291004907

$1.86

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

120

Rubber Washer

293830037

$2.75

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

RH Sponson

292002391

$36.37

210

LH Sponson

292002392

$36.37

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

300a

Through Hull Fitting

292002765

$6.08

300c

Floating Ball

293830080

$5.56

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

300f2

O-Ring

293300067

$0.85

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$9.30

320a

Through Hull Fitting

292002765

$6.08

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

340

Ladder Trim Fastener

292002697

$6.59

350

Truss Cone Torx Screw M6 X 30

250000924

$6.15

360

Stainless Flat Washer M6

234061600

$0.25

370

Flat Washer M6.6 X 22

250200022

$1.87

380

Elastic Stop Nut M6, Brass

232561200

$3.51

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

510

Fitting Elbow 90°

293710152

$14.92

540

Plate

292002935

$11.00

630

Avdel Rivet 3/16"

293150037

$0.47

810

Cooler Float

292002028

$28.57

930

Strap Anchor

270000988

$8.46

940

Hexagonal Cap Screw M6 X35

250000399

$3.61

1000

U-Clamp

292000933

$32.47

1010

Flat Washer M8.5 x 18

293050001

$1.29

1020

Rubber Washer

293830037

$2.75

1030

Flat Washer 8 mm, Stainless

250200175

$1.29

1040

Hex. Elastic Nut M8 Brass

232581200

$1.29

1100a

Torx Head Screw M8 X 35

250001215

$4.84

1200

LH Trim Tab

292002102

$14.27

1210

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1220

RH Trim Tab

292002103

$14.27

1230

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1240

Gasket

277002171

$3.48

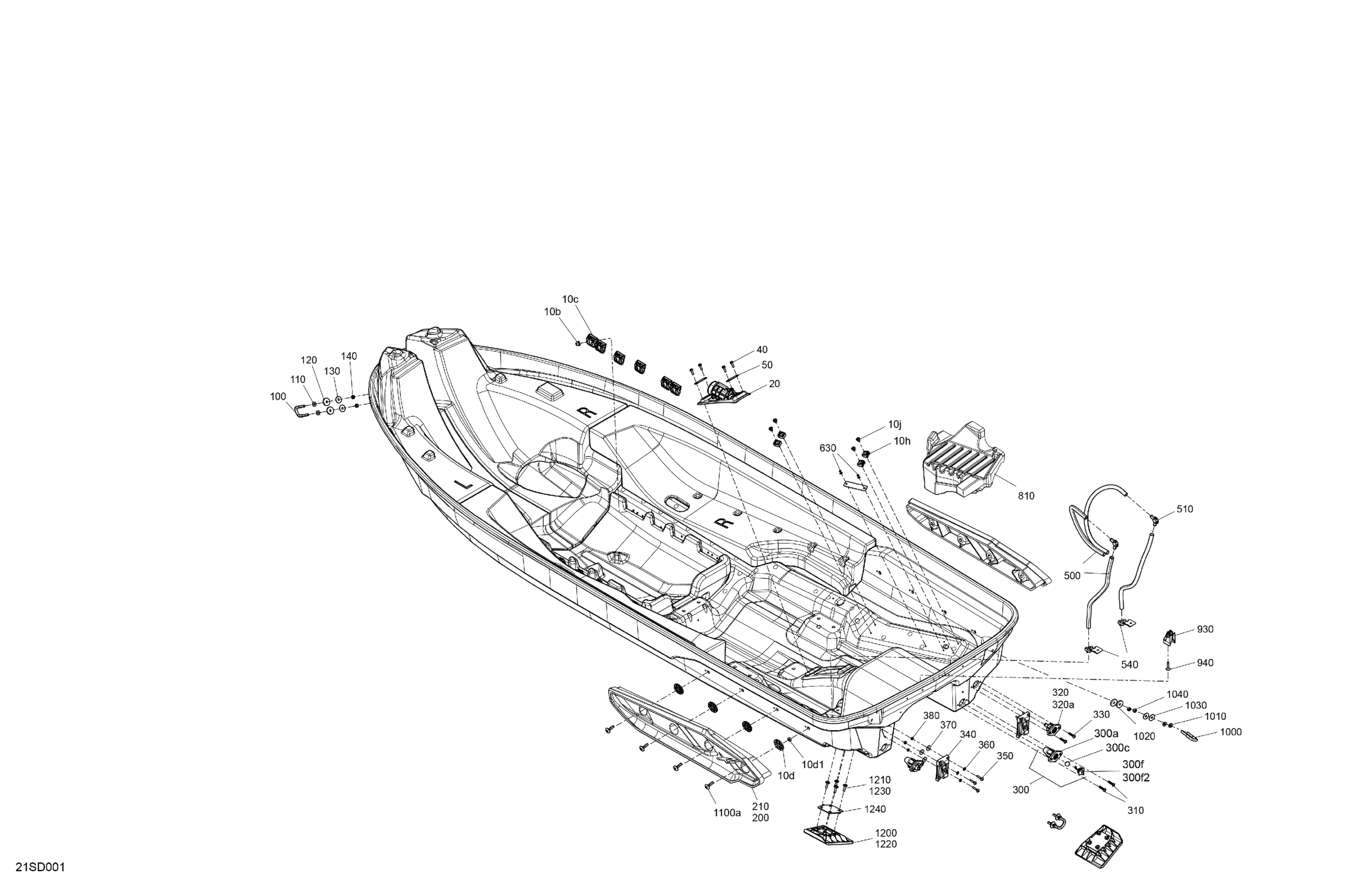

Sea-doo RXT X 325 - 10RA - X package - Fiery Red Metallic - Audio,2024 Body - Hull Diagram

Rivet | Model-T3

Strap Retaining

Housing Nut M8 | Includes 400a1m to 400a1m1

Hex. Flange Nut M8

Strap Anchor

Pop Rivet 3/16

Hull Insert

Hex. Flange Screw M6.81 x 20

Reinforcement

U-Clamp

Flat Washer M8.5 x 18

Rubber Washer

Flat Washer 8 mm, Stainless

Hex. Elastic Nut M8 Brass

RH Sponson

LH Sponson

Through Hull Fitting Ass'y | Includes 300 to 300f2

Through Hull Fitting

Floating Ball

Plug Ass'y | Includes 300f to 300f2

O-Ring

Plastite Torx Screw M6.81X30 | Not Shown

Through Hull Fitting Ass'y | Includes 320 to 320a

Through Hull Fitting

Plastite Torx Screw M6.81X30 | Not Shown

Ladder Trim Fastener

Truss Cone Torx Screw M6 X 30

Stainless Flat Washer M6

Flat Washer M6.6 X 22

Elastic Stop Nut M6, Brass

Polyurethane Hose 1000Mm Long | Not Shown

Fitting Elbow 90°

Plate

Avdel Rivet 3/16"

Cooler Float

Strap Anchor

Hexagonal Cap Screw M6 X35

U-Clamp

Flat Washer M8.5 x 18

Rubber Washer

Flat Washer 8 mm, Stainless

Hex. Elastic Nut M8 Brass

Torx Head Screw M8 X 35

LH Trim Tab

Hexagonal Cap Screw M6 X 25

RH Trim Tab

Hexagonal Cap Screw M6 X 25

Gasket
