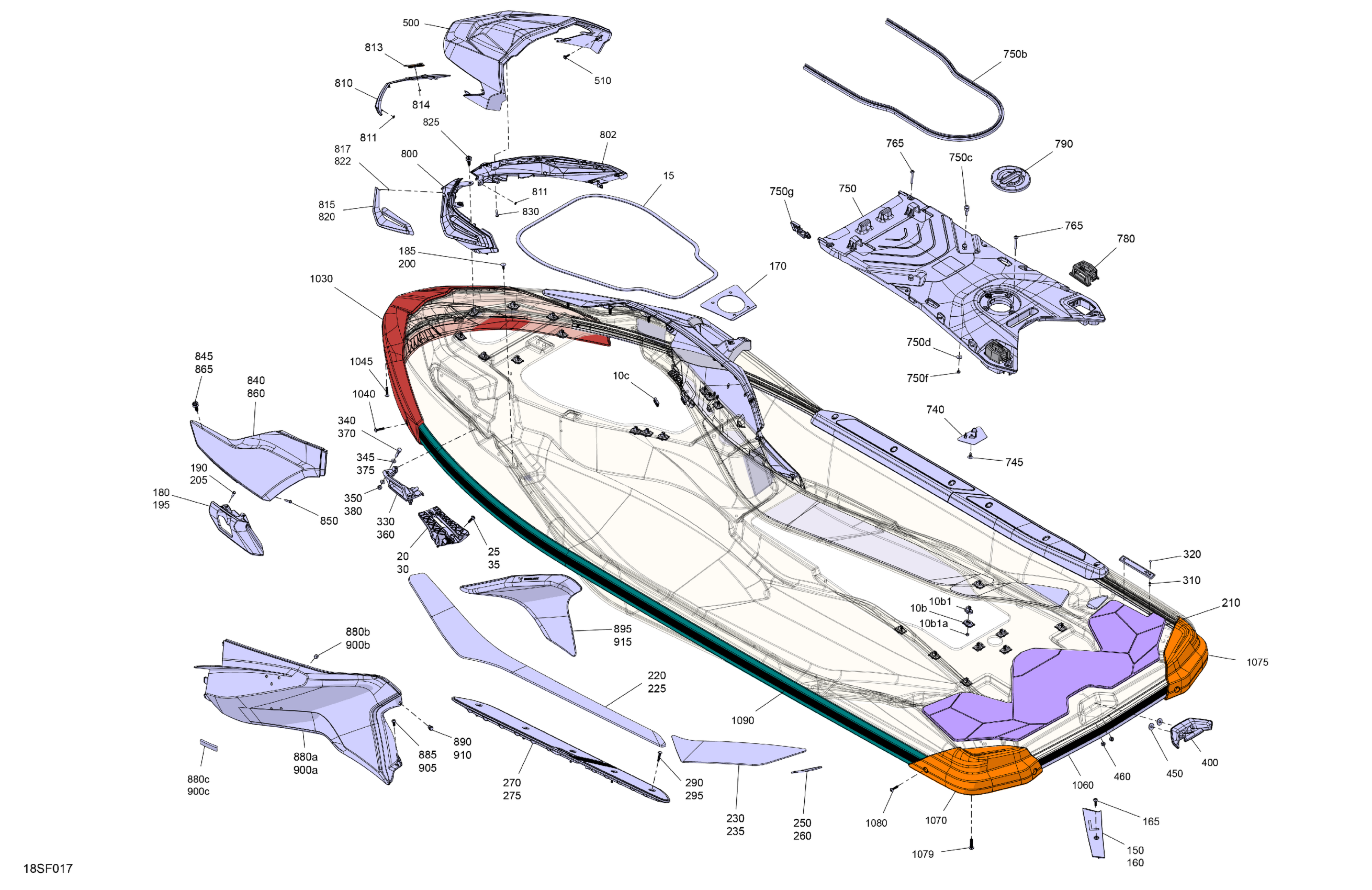

Sea-doo RXT - 325 - X - 22TE - Ice Metal - Audio, 2026 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

Elastic Stop Nut M6, Brass

232561200

$4.23

Anchorage Tie Wrap

293750109

$1.25

Gasket

293250401

$12.11

LH Support

291004714

$10.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

RH Support

291004715

$12.49

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

LH Shim

291005176

$16.49

RH Shim

291005177

$16.49

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Gasket

293250451

$23.99

LH Shell Cleat

291004661

$10.99

Black, Dart

293730011

$0.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

RH Shell Cleat

291004719

$10.99

Black, Dart

293730011

$0.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Rear Plat-Form Carpet

291005077

$142.99

LH Front Anti Slip Mat

291005349

$33.99

RH Front Anti Slip Mat

291005348

$33.99

LH Rear Anti Slip Mat

291005353

$17.20

RH Rear Anti Slip Mat

291005352

$17.20

LH Anti Slip Mat

291005883

$5.50

RH Anti Slip Mat

291005884

$5.50

Dragon Red, LH Footrest

291004786

$51.99

Dragon Red, RH Footrest

291004787

$51.99

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

LH Cleat

291004559

$9.79

Hex. Screw M8 X 35

207083560

$1.47

Stainless, Flat Washer 8 mm

234081600

$0.55

Hex. Elastic Nut M8 Brass

232581200

$2.22

RH Cleat

291004720

$9.79

Hex. Screw M8 X 35

207083560

$1.47

Stainless, Flat Washer 8 mm

234081600

$0.55

Hex. Elastic Nut M8 Brass

232581200

$2.22

Cleat

291004597

$24.99

Flat Washer 8 mm, Stainless

234082600

$2.43

Hex. Elastic Nut M8 Brass

232581200

$2.22

Iceland Grey, Hood

291005304

$104.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Hose Protector

291004941

$4.69

Black, Dart

293730011

$0.99

Access Cover Ass'y | Includes 750 to 750g

291006468

$219.99

Was 293200062 Seal

219704366

$76.49

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Seal

291004717

$12.99

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Linq Bases Kit

295100858

$13.30

Access Cap Ass'y

291004481

$10.99

LH Front Hood Grille Ass'y

291005911

$29.99

RH Front Hood Grille Ass'y

291005913

$29.99

Deep Black, Front Trim

291006091

$28.99

Push Nut

250100206

$1.01

Emblem X

502008454

$9.99

Push Nut

250100206

$1.01

Manta Green, LH Trim

291006200

$28.99

Push Nut

250100206

$1.01

Manta Green, RH Trim

291006201

$28.99

Push Nut

250100206

$1.01

Dard

293730071

$1.15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Iceland Grey, LH Front Body Panel

291004676

$75.99

Dard

293730071

$1.15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Iceland Grey, RH Front Body Panel

291004775

$75.99

Dard

293730071

$1.15

Iceland Grey, LH Central Body Panel Drilled

291004781

$164.99

Rubber Bumper

293830005

$8.09

Stopper

278003618

$0.74

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

Tuflok Plastic Rivet

293150230

$1.47

Swift Silver, LH Knee Pad

291004773

$110.99

Iceland Gray, RH Central Body Panel

291004784

$164.99

Rubber Bumper

293830005

$8.09

Stopper

278003618

$0.74

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

Tuflok Plastic Rivet

293150230

$1.47

Swift Silver, RH Knee Pads

291004800

$110.99

Front Bumper

291004452

$77.49

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Bumper 2775±25mm

291004468

$134.99

LH Rear Bumper

291004465

$30.49

RH Rear Bumper

291004466

$30.49

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Lateral Bumper

291006726

$142.99
