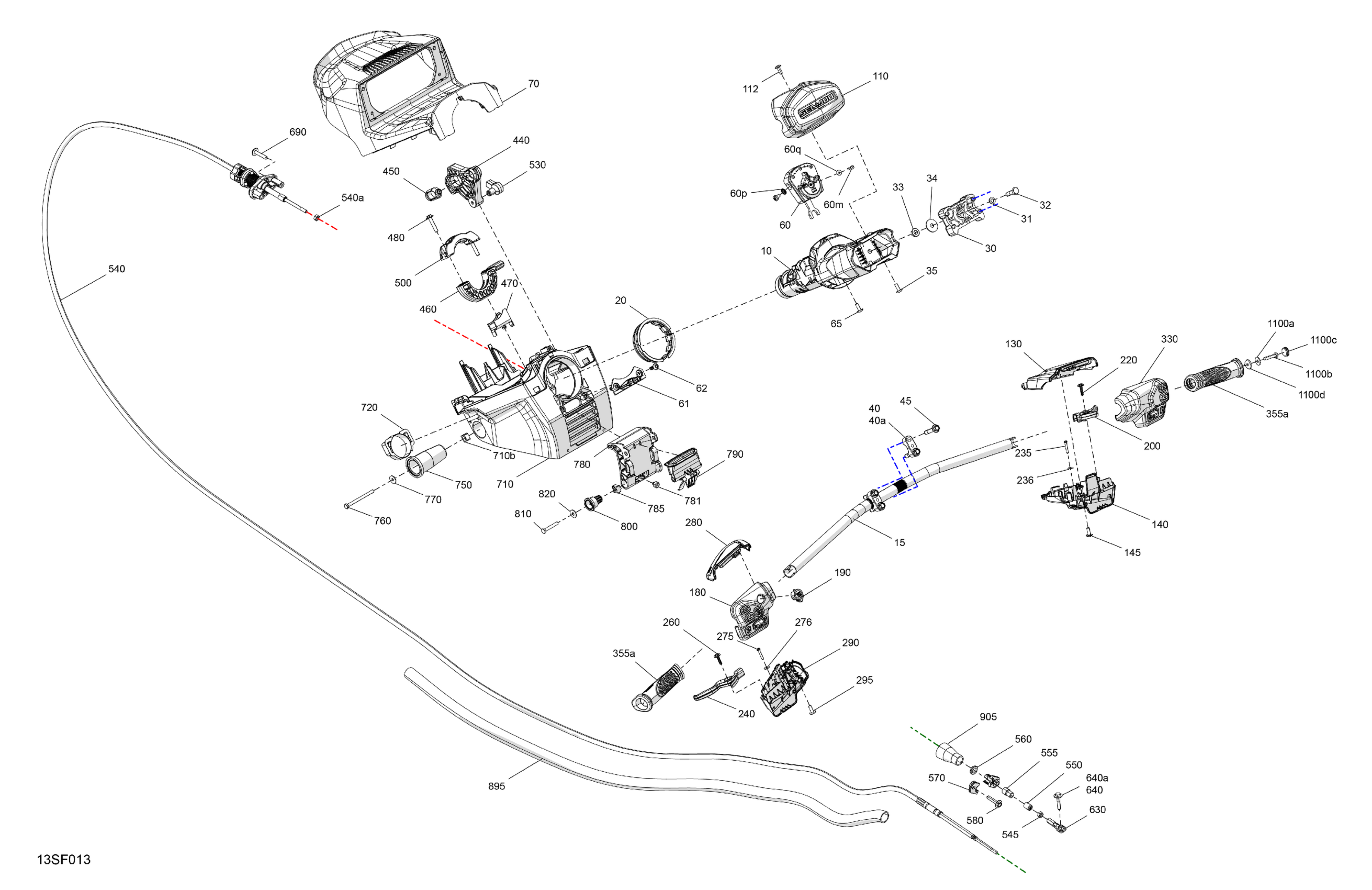

Sea-doo RXT - 325 - X - 22TD - Gulfstream Blue - Audio, 2026 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002416

$211.91

15

Deep Black, Handlebar

277002180

$83.82

20

Wear Ring

277001874

$9.74

30

Anodized Lower Handlebar Support

277002231

$58.93

31

Flat Washer M8, Stainless

234080600

$1.25

32

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

33

Hex. Flange Nut M8

233181600

$0.86

34

Flat Washer 8 mm, Stainless

250200175

$1.29

35

Torx Truss Screw M6 X 16

250000922

$1.56

40

Steering Support | Includes 40 to 40a

506152751

$10.09

40a

Not Available As Spare Parts

XXX

Unavailable

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.25

60

Damper | Includes 70 to 70q

506153412

$249.22

60m

Socket Head Screw M4 X 16

250001237

$9.64

60p

Sealing Washer

250200114

$3.61

60q

Flat Washer 4 mm, Stainless

234042600

$0.92

61

Damper Support

277002265

$4.58

62

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

65

Torx Truss Screw M6 X 16

250000922

$1.56

70

Gauge Support

277002299

$35.72

110

Deep Black / Can-Am Red, Steering Pad

277002380

$22.07

112

Torx Truss Screw M6 X 16

250000922

$1.56

130

RH Upper Lever Trim

277002349

$85.77

140

RH Lower Lever Trim

277002350

$79.92

145

Torx Truss Screw M6 X 16

250000922

$1.56

180

LH Front Lever Trim Ass'y

277002398

$314.57

190

Red, Switch Button

277002368

$10.00

200

Hand Lever Accelerator

277002138

$30.52

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

280

LH Upper Lever Trim

277002351

$85.77

290

LH Lower Lever Trim

277002352

$79.92

295

Torx Truss Screw M6 X 16

250000922

$1.56

330

RH Front Lever Trim Ass'y

277002399

$314.57

355a

Handlebar Grip

277002286

$14.92

440

Steering Arm Kit

295501183

$7.01

450

Steering Arm Kit

295501183

$7.01

460

Arm

277001987

$7.01

470

Spacer

277001654

$11.40

480

Hexagonal Cap Screw M6 X35

250000399

$3.61

500

C Clamp

277002085

$7.19

530

End Fitting Cable

277002119

$16.87

540

Steering Cable | Includes 540 to 540b

277002448

$223.57

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

640a

Hex Screw SEMS M6X35, SS

250000969

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$90.32

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

720

Wear Ring

277002318

$12.43

750

Steering Support Pivot

277001605

$14.92

760

Hex Screw M6 X 80

207168060

$6.36

770

Flat Washer M6, Stainless

234062600

$0.64

780

Adjustment Handle

277001996

$7.05

781

Rubber Bumper

293830005

$5.33

785

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

790

Lock

277002010

$5.04

800

Pivot

277001652

$12.43

810

Hex. Screw M6 X 40

207064060

$1.40

820

Flat Washer M6, Stainless

234062600

$0.64

895

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

905

Rope Guide

277002150

$0.75

1100a

Flat Washer M6, Stainless

234062600

$0.64

1100b

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

1100c

Black, Cap

277000203

$7.48

1100d

Insert Grip Handle

277001863

$7.70
