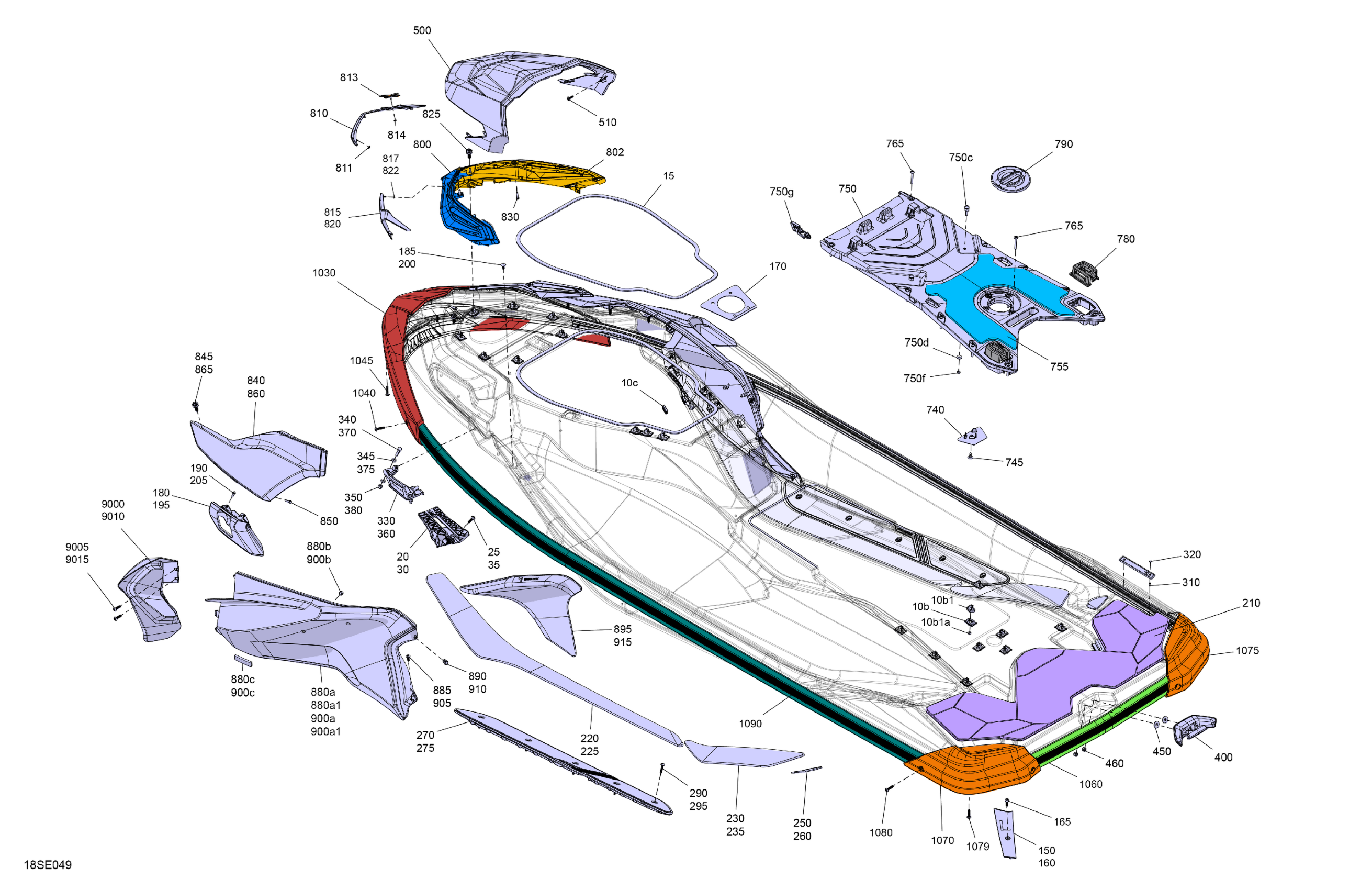

Sea-doo RXT - 325 - X - 22SJ - Eclipse Black, 2025 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

10b1a

Elastic Stop Nut M6, Brass

232561200

$4.23

10c

Anchorage Tie Wrap

293750109

$1.25

15

Gasket

293250401

$12.11

20

LH Support

291004714

$10.99

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

30

RH Support

291004715

$12.49

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

150

LH Shim

291005176

$16.49

160

RH Shim

291005177

$16.49

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

170

Gasket

293250451

$23.99

180

LH Shell Cleat

291004661

$10.99

185

Black, Dart

293730011

$0.99

190

Hex. Screw 10-14 X 7/8”

211000023

$3.59

195

RH Shell Cleat

291004719

$10.99

200

Black, Dart

293730011

$0.99

205

Hex. Screw 10-14 X 7/8”

211000023

$3.59

210

Rear Plat-Form Carpet

291005077

$142.99

220

LH Front Anti Slip Mat

291005349

$33.99

225

RH Front Anti Slip Mat

291005348

$33.99

230

LH Rear Anti Slip Mat

291005353

$17.20

235

RH Rear Anti Slip Mat

291005352

$17.20

250

LH Anti Slip Mat

291005883

$5.50

260

RH Anti Slip Mat

291005884

$5.50

270

Dragon Red, LH Footrest

291004786

$51.99

275

Dragon Red, RH Footrest

291004787

$51.99

290

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

295

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

330

LH Cleat

291004559

$9.79

340

Hex. Screw M8 X 35

207083560

$1.47

345

Stainless, Flat Washer 8 mm

234081600

$0.55

350

Hex. Elastic Nut M8 Brass

232581200

$2.22

360

RH Cleat

291004720

$9.79

370

Hex. Screw M8 X 35

207083560

$1.47

375

Stainless, Flat Washer 8 mm

234081600

$0.55

380

Hex. Elastic Nut M8 Brass

232581200

$2.22

400

Cleat

291004597

$24.99

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

500

Deep Black, Hood

291005579

$97.99

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

740

Hose Protector

291004941

$4.69

745

Black, Dart

293730011

$0.99

750

Acces Cover Ass'y | Includes 750 to 750g

291005876

$219.99

750c

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

$25.99

750d

Flat Washer M6, Stainless

234062600

$0.77

750f

Elastic Stop Nut M6, Brass

232561200

$4.23

750g

Seal

291004717

$12.99

755

Deep Black, Rear Mat

291005861

$39.99

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

780

Cargo Base

291005157

Unavailable

790

Access Cap Ass'y

291004481

$10.99

800

LH Front Hood Grille Ass'y

291005911

$29.99

802

RH Front Hood Grille Ass'y

291005913

$29.99

810

Deep Black, Front Trim

291006091

$28.99

811

Push Nut

250100206

$1.01

813

Emblem X

502008454

$9.99

814

Push Nut

250100206

$1.01

815

Deep Black, LH Molded Trim

291006196

$27.99

817

Push Nut

250100206

$1.01

820

Deep Black, RH Molded Trim

291006197

$28.99

822

Push Nut

250100206

$1.01

825

Dard

293730071

$1.15

830

Hex. Screw 10-14 X 7/8”

211000023

$3.59

840

Iceland Grey, LH Front Body Panel

291004676

$75.99

845

Dard

293730071

$1.15

850

Hex. Screw 10-14 X 7/8”

211000023

$3.59

860

Iceland Grey, RH Front Body Panel

291004775

$75.99

865

Dard

293730071

$1.15

880a

Iceland Grey, LH Central Body Panel Drilled

291004781

$164.99

880a1

Iceland Grey, LH Central Body Panel

291004556

$164.99

880b

Rubber Bumper

293830005

$8.09

880c

Stopper

278003618

$0.74

885

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

890

Tuflok Plastic Rivet

293150230

$1.47

895

Deep Black, LH Knee Pad Ass'y

291005051

$121.99

900a

Iceland Gray, RH Central Body Panel

291004784

$164.99

900a1

Iceland Grey, RH Central Body Panel

291004558

$164.99

900b

Rubber Bumper

293830005

$8.09

900c

Stopper

278003618

$0.74

905

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

910

Tuflok Plastic Rivet

293150230

$1.47

915

Deep Black, RH Knee Pad Ass'y

291005052

$121.99

1030

Front Bumper

291004452

$77.49

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1060

Bumper 2775±25mm

291004468

$134.99

1070

LH Rear Bumper

291004465

$30.49

1075

RH Rear Bumper

291004466

$30.49

1079

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1090

Bumper 2775±25mm

291004468

$134.99

9000

LH Side Grille

291004455

$11.49

9005

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

9010

RH Side Grille

291004456

$11.49

9015

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30
