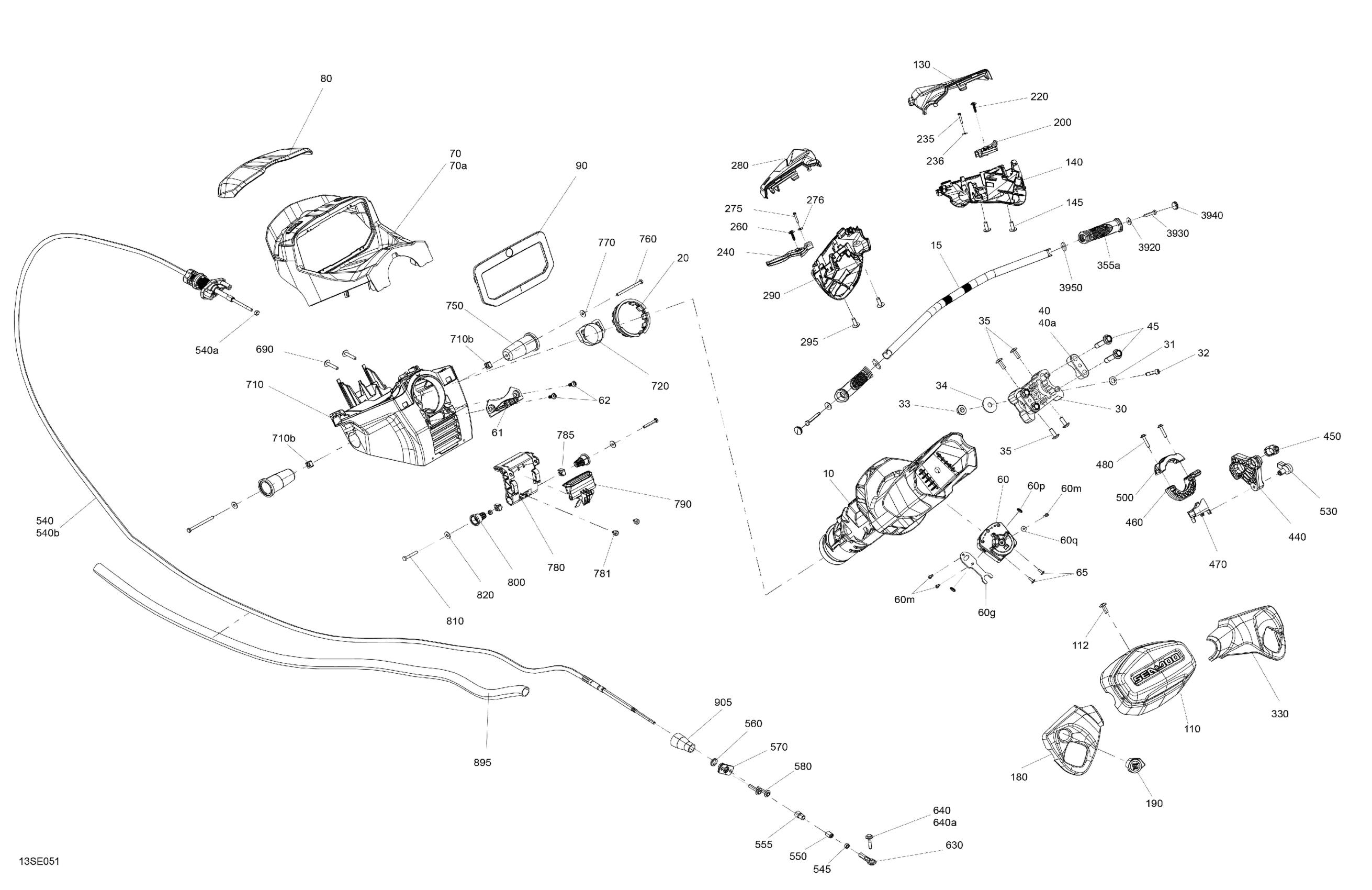

Sea-doo RXT - 325 - X - 22SJ - Eclipse Black, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002416

$239.99

15

Deep Black, Handlebar

277002180

$103.99

20

Wear Ring

277001874

$12.17

30

Anodized Lower Handlebar Support

277002231

$65.99

31

Flat Washer M8, Stainless

234080600

$1.48

32

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

33

Hex. Flange Nut M8

233181600

$1.05

34

Flat Washer 8 mm, Stainless

250200175

$3.06

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

40a

Steering Support | Includes 40 to 40a

506152751

$13.99

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

60

Damper | Includes 60 to 60q

506153382

$279.99

60g

Arm

277002427

$9.19

60m

Socket Head Screw M4 X 16

250001237

$10.49

60p

Sealing Washer

250200114

$4.44

60q

Flat Washer 4 mm, Stainless

234042600

$1.15

61

Damper Support

277002265

$5.09

62

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

65

Torx Truss Screw M6 X 16

250000922

$1.90

70

Gauge Support | Includes 70 to 70a

277002417

$43.99

70a

Gauge Support

277002198

$45.99

80

Cluster Cover

277002160

$28.99

90

Speed Gauge Trim

705015381

$22.49

110

Deep Black / Lava Grey, Steering Pad

277002330

$28.99

112

Torx Truss Screw M6 X 16

250000922

$1.90

130

RH Upper Housing

277002040

$109.99

140

RH Lower Housing

277002036

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002314

$18.99

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

280

LH Upper Housing

277002041

$109.99

290

LH Lower Housing

277002035

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover

277002315

$18.99

355a

Handlebar Grip

277002286

$19.99

440

Steering Arm Kit

295501183

$10.99

450

Steering Arm Kit

295501183

$10.99

460

Arm

277001987

$10.99

470

Spacer

277001654

$15.99

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

500

C Clamp

277002085

$9.19

530

End Fitting Cable

277002119

$20.99

540

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$114.99

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

781

Rubber Bumper

293830005

$8.09

785

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

790

Lock

277002010

$6.49

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

905

Rope Guide

277002150

$0.93

3920

Flat Washer M6, Stainless

234062600

$0.77

3930

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

3940

Black, Cap

277000203

$9.39

3950

Insert Grip Handle

277001863

$8.83
