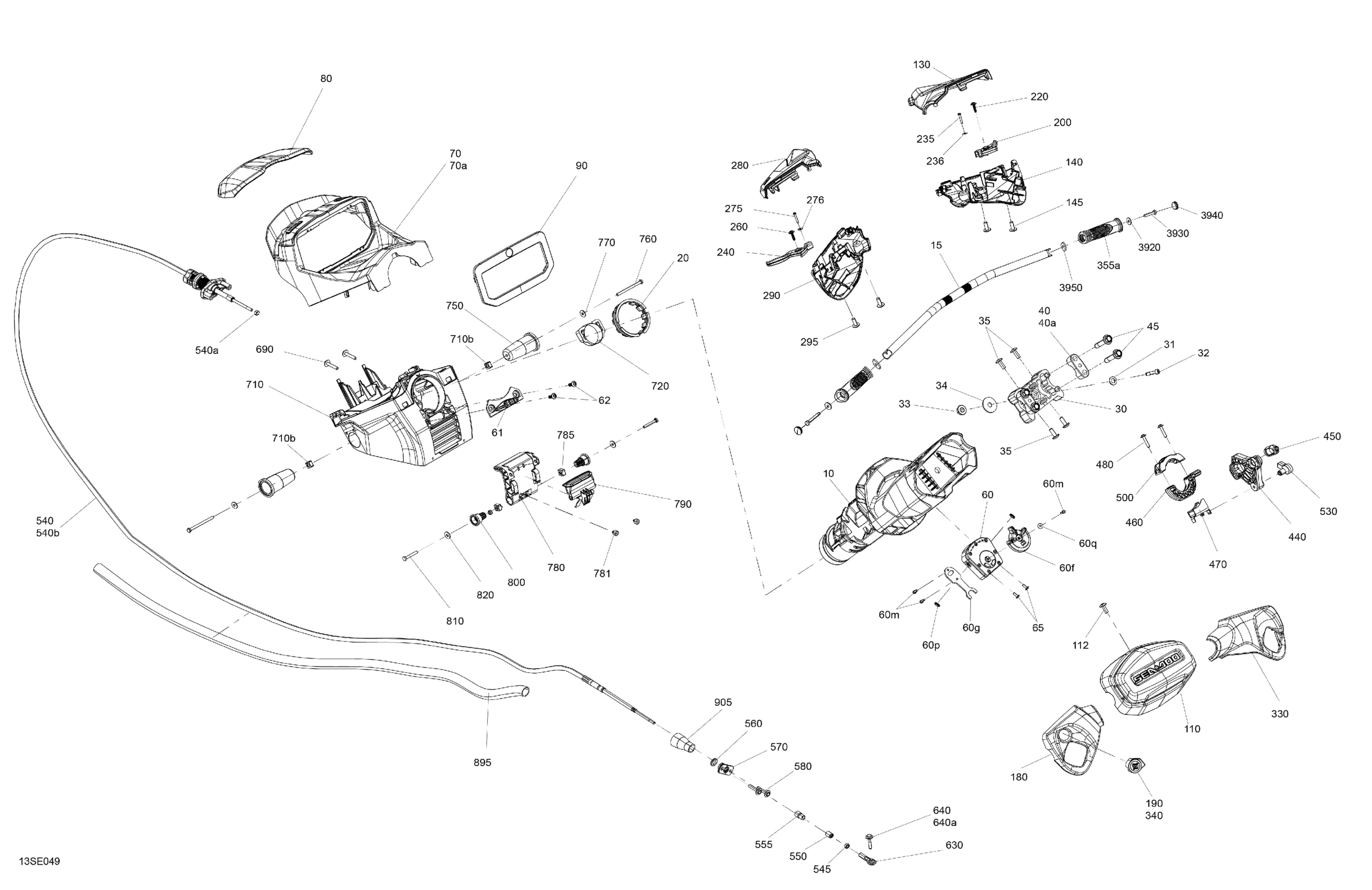

Sea-doo RXT - 325 - X - 22SG - Metallic Tan - Audio, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002416

$211.91

15

Deep Black, Handlebar

277002180

$96.24

20

Wear Ring

277001874

$11.18

30

Anodized Lower Handlebar Support

277002231

$58.93

31

Flat Washer M8, Stainless

234080600

$1.43

32

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

33

Hex. Flange Nut M8

233181600

$0.99

34

Flat Washer 8 mm, Stainless

250200175

$1.48

35

Torx Truss Screw M6 X 16

250000922

$1.79

40

Steering Support | Includes 40 to 40a

506152751

$11.58

40a

Steering Support | Includes 40 to 40a

506152751

$11.58

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.73

60

Damper | Includes 70 to 70q

506153381

$249.22

60f

Suspension Adjuster

277002226

$16.39

60g

Arm

277002427

$8.25

60m

Socket Head Screw M4 X 16

250001237

$9.64

60p

Sealing Washer

250200114

$4.15

60q

Flat Washer 4 mm, Stainless

234042600

$1.06

61

Damper Support

277002265

$4.58

62

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

65

Torx Truss Screw M6 X 16

250000922

$1.79

70

Gauge Support | Includes 70 to 70a

277002417

$39.52

70a

Gauge Support

277002198

$41.01

80

Cluster Cover

277002160

$23.85

90

Speed Gauge Trim

705015381

$20.12

110

Deep Black / Can-Am Red, Steering Pad

277002380

$25.34

112

Torx Truss Screw M6 X 16

250000922

$1.79

130

RH Upper Housing

277002040

$98.48

140

RH Lower Housing

277002036

$91.76

145

Torx Truss Screw M6 X 16

250000922

$1.79

180

LH Cover

277002314

$15.64

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

275

Hex. Flange Screw K40 X 25

241142560

$2.49

276

Flat Washer 4 mm, Stainless

234042600

$1.06

280

LH Upper Housing

277002041

$98.48

290

LH Lower Housing

277002035

$91.76

295

Torx Truss Screw M6 X 16

250000922

$1.79

330

RH Cover

277002316

$15.64

340

Button Switch

277002320

$8.34

355a

Handlebar Grip

277002286

$17.13

440

Steering Arm Kit

295501183

$8.04

450

Steering Arm Kit

295501183

$8.04

460

Arm

277001987

$8.04

470

Spacer

277001654

$13.09

480

Hexagonal Cap Screw M6 X35

250000399

$4.15

500

C Clamp

277002085

$8.25

530

End Fitting Cable

277002119

$19.37

540

Steering Cable | Includes 540 to 540b

277002448

$256.69

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

545

Hex. Nut 1/4"-28

211100056

$0.64

550

Wiper Rod

277001582

$10.13

555

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Hexagonal Cap Screw M6 X35

250000399

$4.15

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

640a

Hex Screw SEMS M6X35, SS

250000969

$2.00

690

Hexagonal Cap Screw M6 X35

250000399

$4.15

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$103.70

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

720

Wear Ring

277002318

$14.27

750

Steering Support Pivot

277001605

$17.13

760

Hex Screw M6 X 80

207168060

$6.36

770

Flat Washer M6, Stainless

234062600

$0.73

780

Adjustment Handle

277001996

$8.09

781

Rubber Bumper

293830005

$6.12

785

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

790

Lock

277002010

$5.79

800

Pivot

277001652

$14.27

810

Hex. Screw M6 X 40

207064060

$1.61

820

Flat Washer M6, Stainless

234062600

$0.73

895

Corrugated Sheath 22MM - 1250MM

276000520

$24.60

905

Rope Guide

277002150

$0.87

3920

Flat Washer M6, Stainless

234062600

$0.73

3930

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

3940

Black, Cap

277000203

$8.58

3950

Insert Grip Handle

277001863

$8.83
