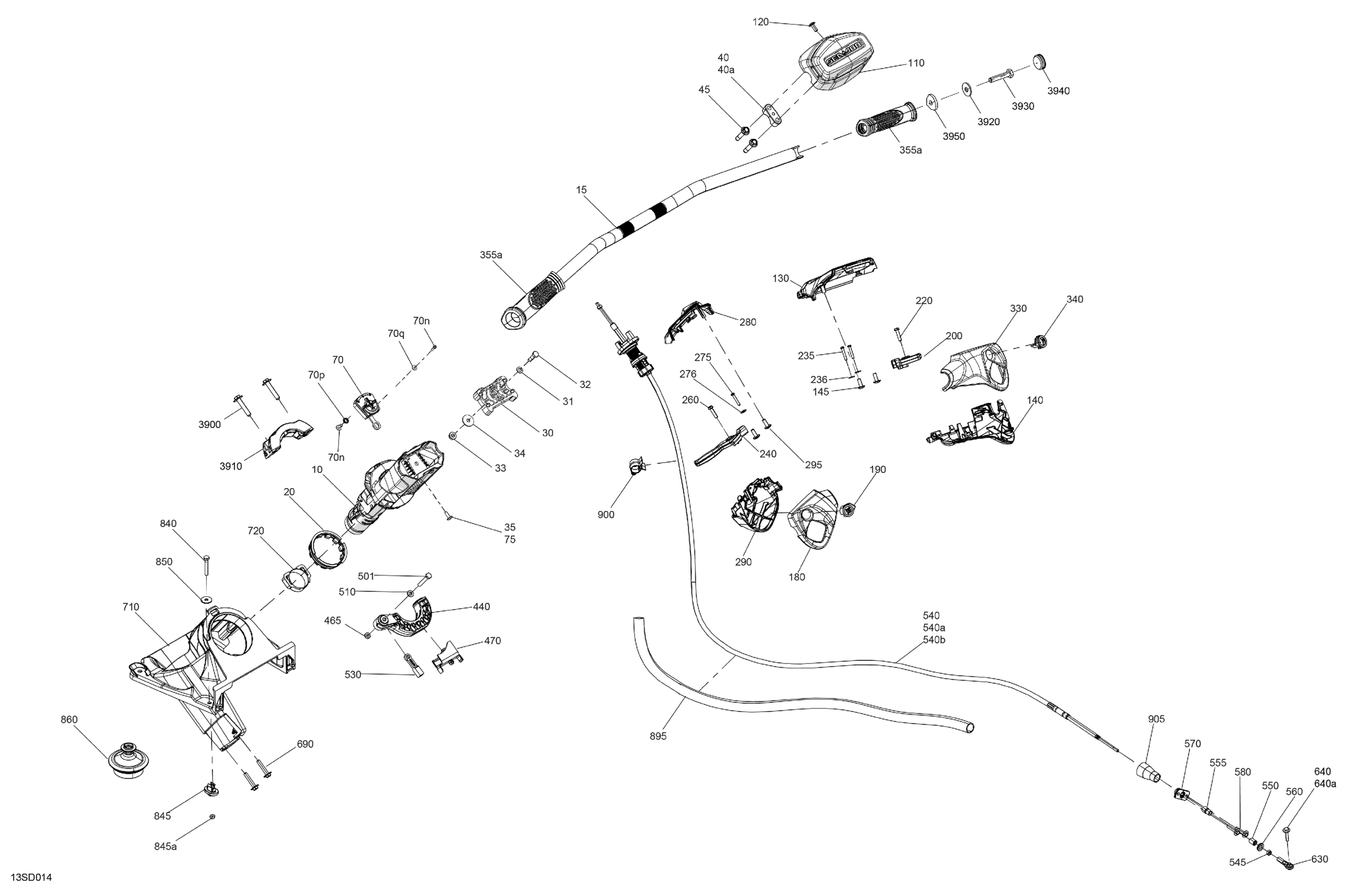

Sea-doo RXP X 325 - 21RE - X package - Fiery Red Metallic - Audio,2024 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002208

$239.99

15

Liquid Titan, Handlebar This part replaces 277002345.

277002424

Unavailable

20

Wear Ring

277001874

$12.17

30

Anodized Lower Handlebar Support

277002231

$65.99

31

Flat Washer M8, Stainless

234080600

$1.48

32

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

33

Hex. Flange Nut M8

233181600

$1.05

34

Flat Washer 8 mm, Stainless

250200175

$3.06

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

40a

Steering Support | Includes 40 to 40a

506152751

$13.99

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

70

Damper | Includes 70 to 70q

506153328

$299.99

70n

Torx Screw M6 X 14

250000384

$7.51

70p

Sealing Washer

250200114

$4.44

70q

Flat Washer 4 mm, Stainless

234042600

$1.15

75

Torx Truss Screw M6 X 16

250000922

$1.90

110

Deep Black / Lava Grey, Steering Pad

277002330

$28.99

120

Torx Truss Screw M6 X 16

250000922

$1.90

130

RH Upper Housing

277002040

$109.99

140

RH Lower Housing

277002036

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002314

$18.99

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

280

LH Upper Housing

277002041

$109.99

290

LH Lower Housing

277002035

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover

277002316

$18.99

340

Button Switch

277002320

$9.00

355a

Handlebar Grip

277002286

$19.99

440

Steering Arm

277002319

$9.19

465

Nut Flange Elastic M6

233261200

$0.99

470

Spacer

277001654

$15.99

501

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540b

277002167

$121.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Column Support

277002209

$51.99

720

Wear Ring

277002318

$15.99

840

Hex. Screw M6 X 40

207164060

$3.38

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

845a

Elastic Stop Nut M6, Brass

232561200

$4.23

850

Flat Washer M6.6 X 22

250200022

$2.72

860

Cable Boot

293720116

$4.49

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

900

Cable Retainer

275500527

$2.68

905

Rope Guide

277002150

$0.93

3900

Hexagonal Cap Screw M6 X35

250000399

$4.44

3910

C Clamp

277002085

$9.19

3920

Flat Washer M6, Stainless

234062600

$0.77

3930

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

3940

Black, Cap

277000203

$9.39

3950

Insert Grip Handle

277001863

$8.83
