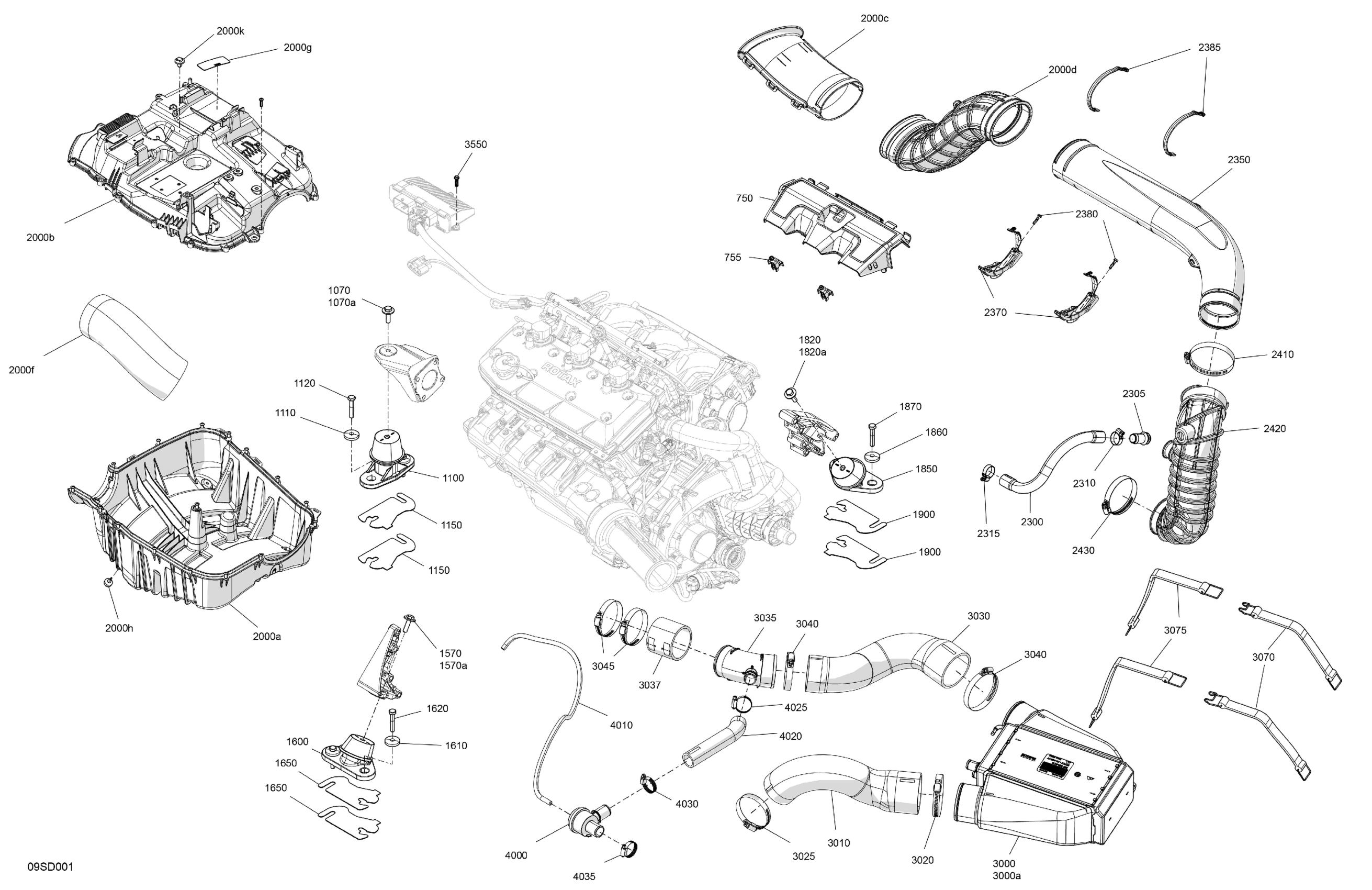

Sea-doo RXP X 325 - 21RC - X package - Fiery Red Metallic,2024 Engine - System Diagram

#

Description
Price

750

Engine Cover

270001130

$74.99

755

Snap Fastener

293730112

$2.19

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1070a

Hexagonal Screw M8 X 30

250000888

$3.17

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1570a

Hexagonal Screw M8 X 30

250000888

$3.17

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1820a

Hexagonal Screw M8 X 30

250000888

$3.17

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Lower Intake Silencer

273000422

$71.99

2000b

Upper Intake Silencer

273000423

$71.99

2000c

Intake Duct Silencer Int

273000424

$49.99

2000d

Intake Duct Silencer Out

273000428

$45.99

2000f

Intake Duct Silencer In

273000425

$48.99

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000k

Mount Dart

710008294

$1.04

2300

Formed Hose

270000950

$10.99

2305

Breather Valve

273000234

$14.49

2310

Gear Clamp

293650284

$4.44

2315

Gear Clamp

293650284

$4.44

2350

Central Intake Duct

273000426

$48.99

2370

Duct Support

273000431

$48.99

2380

Hex. Flange Screw K50 X 20

241152060

$1.99

2385

Retaining Strap

273000437

$15.35

2410

Tridon Gear Clamp

293650244

$9.29

2420

Molded Compressor Hose IN

273000427

$30.49

2430

Tridon Clamp

293650179

$11.49

3000

Intercooler | Includes 3000 to 3000a

276000335

$625.49

3000a

Anode Zinc

271001942

$18.76

3010

Formed Compressor Hose Out

273000420

$76.49

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Formed Throttle Body Hose IN

273000449

$92.99

3035

Intake Duct

273000448

$20.99

3037

Duct Fitting

273000469

$28.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850094

$22.49

3075

Fuel Tank Strap

293850093

$21.99

3550

Flange Torx Screw K40 X 16

250000287

$2.11

4000

Purge Valve

273000453

$224.99

4010

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

4020

Formed Check Valve Hose

273000450

$12.99

4025

Gear Clamp

293650323

$4.44

4030

Gear Clamp

293650323

$4.44

4035

Gear Clamp

293650323

$4.44
