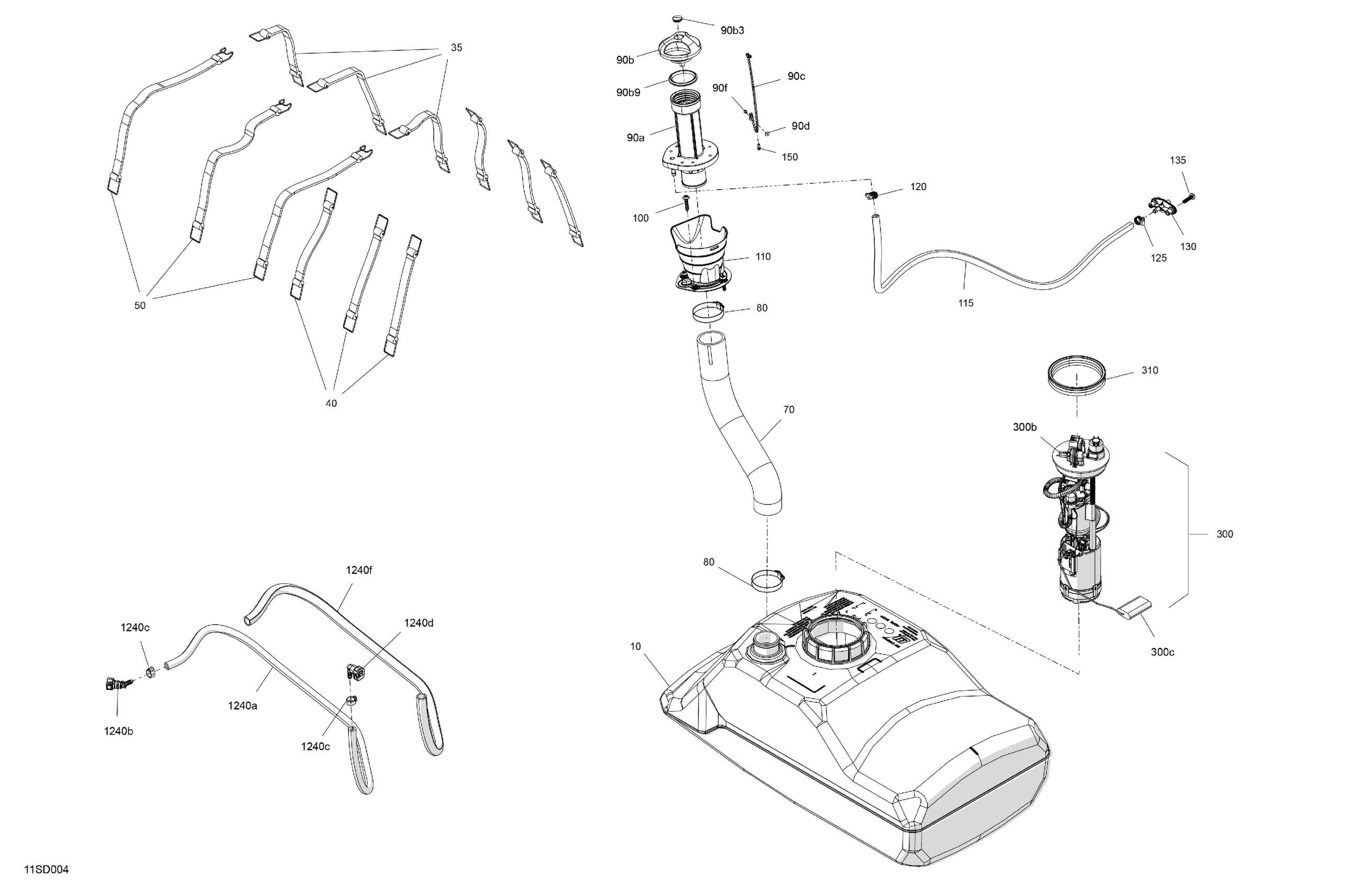

Sea-doo RXP X 325 - 21RC - X package - Fiery Red Metallic,2024 Engine - Fuel Diagram

Description

Price

Fuel Tank

275501144

$279.47

Holding Strap

293850112

$14.27

Holding Strap

293850112

$14.27

Holding Strap

293850134

$16.87

Fuel Tank Hose

275501025

$39.97

Norma Clamp

293650081

$9.87

90a

Filler Neck

275501005

$31.82

90b

Fuel Cap Ass'y | Includes 90b to 90b9

275501094

$48.07

90b3

Black, Snap Cap

293000034

$7.48

90b9

Gasket

293250417

$3.17

90c

Fuel Cap Chain

275500972

$16.12

90d

Flat Washer M3, Stainless

234032600

$0.54

90f

Pop Rivet 1/8"

390407900

$1.17

100

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

110

Gas, Deflector

293250480

$9.29

115

Hose I.D. 7.9Mm 3000Mm Long

219704359

$318.43

120

Clamp Gear

293650285

$2.68

125

Clamp Gear

293650285

$2.68

130

Fitting Sub Ass'y

275501022

$5.54

135

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

150

Screw K40 X 10

241140060

$1.25

300

Fuel Pump Ass'y | Includes 300 to 300c

275501036

$585.62

300a

Fuel Filter

275501162

$39.97

300b

Pressure Sensor

275501164

$49.37

300c

Fuel Level Sensor

275501163

$85.77

310

Gasket

293250173

$15.57

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$318.43

1240b

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

1240c

Crimp Clamp

293650053

$2.42

1240d

Quick Disconnect

275500921

$12.61

1240f

Tubing 16 Mm 1000Mm Long

219704408

$6.23
