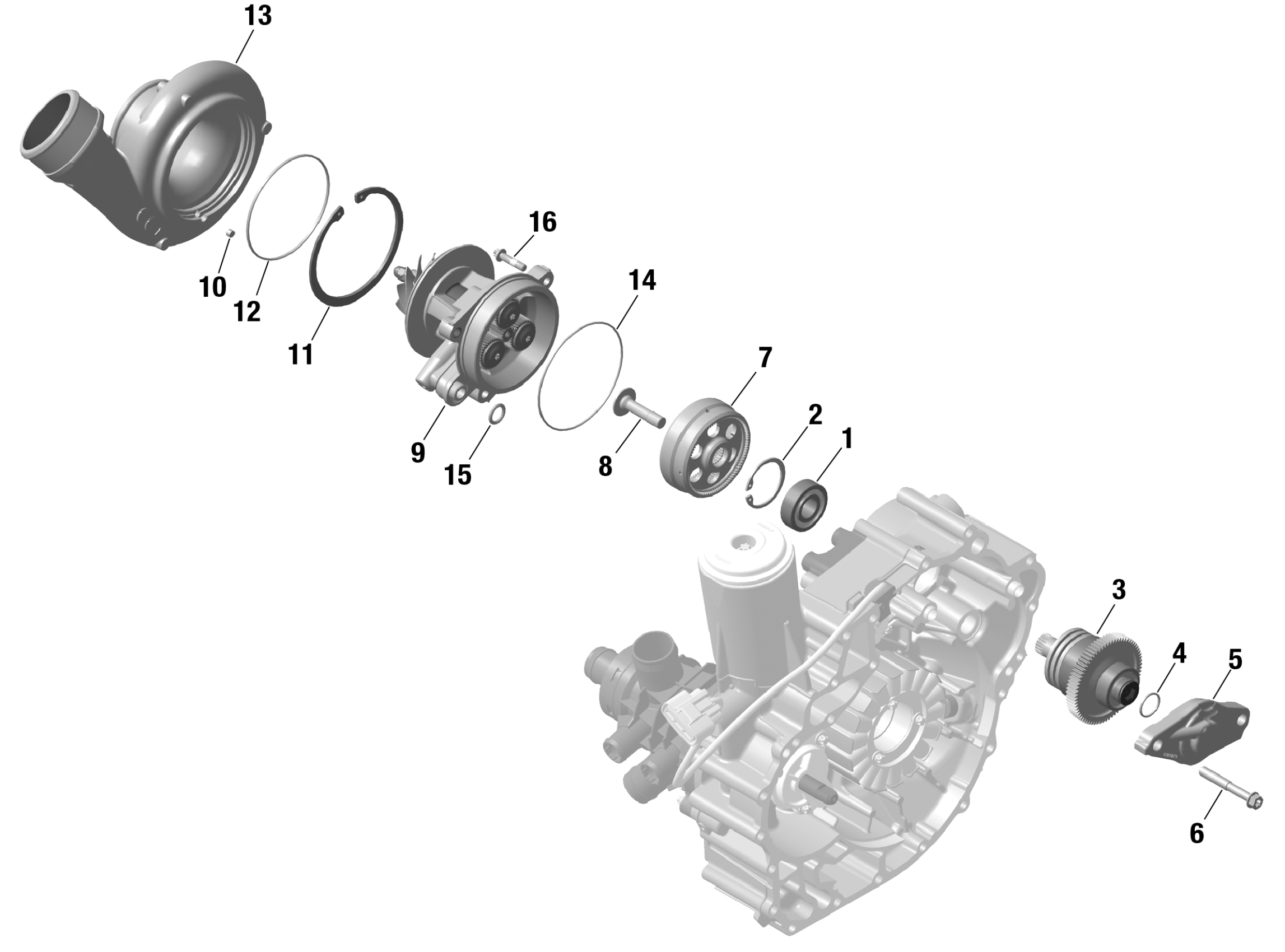

Sea-doo RXP X 325 - 21RC - X package - Fiery Red Metallic,2024 ROTAX - Supercharger Diagram

Description

Price

Balll Bearing

420232855

$27.58

Lock Ring

420945880

$4.15

Clutch Shaft Ass'y | Includes no. 3-4

420937397

$497.73

Gasket Ring

420230410

$18.63

Bearing Bracket

420210869

$56.69

Torx Flange Screw M8 X 55

420641213

$7.01

Hollow Wheel 91 Teeth

420940826

$82.49

Flat Head Screw M10X1

420242421

$6.88

Compressor Ass'y | Includes no. 9-13

420868017

$1,814.15

Needle Pin

420629320

$4.30

Retaining Ring

420651867

$77.58

O-Ring This part replaces 420850540.

293300026

$3.06

Not Available As Spare Parts

XXX

Unavailable

O-Ring

420650275

$5.90

O-ring

420250290

$7.60

Torx Flange Screw M6 X 25

420641238

$3.07
