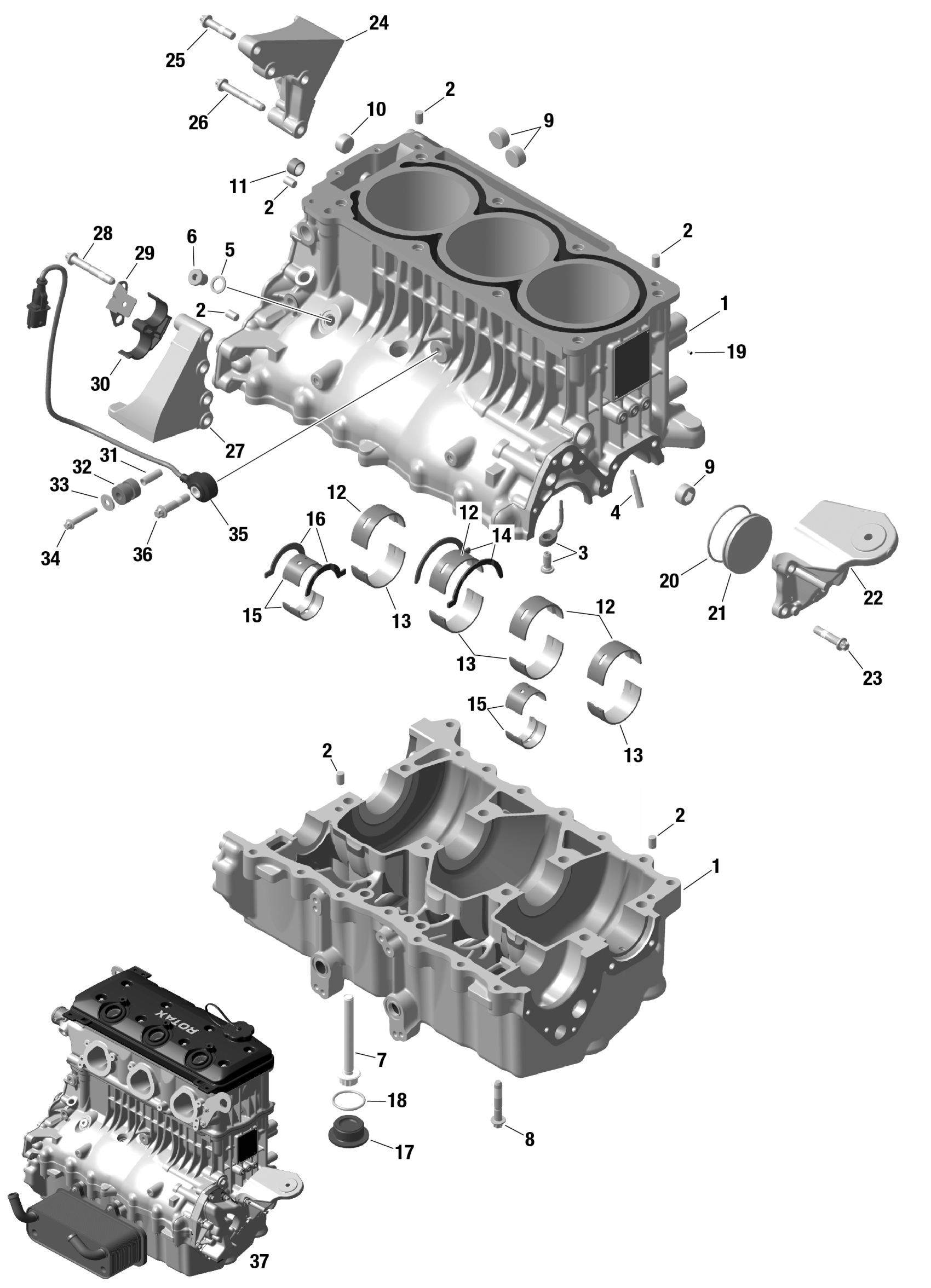

Sea-doo RXP X 325 - 21RC - X package - Fiery Red Metallic,2024 ROTAX - Crankcase Diagram

#

Description
Price

1

Engine Block Ass'y | Includes no. 1-11

420894345

$2,031.49

2

Center Pin 8 X 12

420632010

$3.52

3

Oil Spray Nozzle

420956773

$33.55

4

Not Available As Spare Parts

XXX

Unavailable

5

Aluminum Sealing Ring

420250016

$5.06

6

Plug Screw M12

420841923

$14.90

7

Torx Flange Screw M10 X 1.25

420641121

$6.88

8

Hex. Flange Screw M8 X 45

420641208

$7.09

9

Plug Screw M20 X 1.5

420641317

$12.15

10

Screw

420441051

$12.01

11

Needle Bushing

420232482

$17.88

12

Plain Half-Bearing

420933456

$13.90

13

Plain Half-Bearing

420933466

$13.90

14

Half-Ring

420933475

$10.76

15

Plain Bearing Half

420933442

$17.13

16

Half-Ring

420933470

$7.01

17

Plug Screw M30 X 1.5 | Includes no. 16-17

420641174

$17.88

18

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$9.03

19

Grooved Pin

420249073

$1.79

20

O-Ring 57-3 Cylinder Bloc Plug Cover | Included in gasket kit

420430411

$13.18

21

Plug Cover

420660110

$7.01

22

Front Engine Bracket

420811794

$46.24

23

Torx Flange Screw M8 X 35

420641188

$7.01

24

Engine Bracket PTO, Exhaust

420811788

$66.39

25

Torx Flange Screw M8 X 35

420641188

$7.01

26

Torx Flange Screw M8 X 55

420641213

$7.01

27

Engine Bracket PTO, Exhaust

420811784

$62.66

28

Torx Flange Screw M8 X 55

420641213

$7.01

29

Retaining Plate

420851740

$17.88

30

Hose Bracket

420660290

$14.90

31

Spacer

420847971

$6.99

32

Rubber Bracket

420660090

$3.88

33

Flat Washer M6

420827968

$1.79

34

Torx Flange Screw M6 X 35

420641258

$3.19

35

Noise Sensor

420664031

$58.18

36

Torx Flange Screw M8 X 35

420641188

$7.01

37

Engine 1603 Sxho

420160357

$5,229.99
