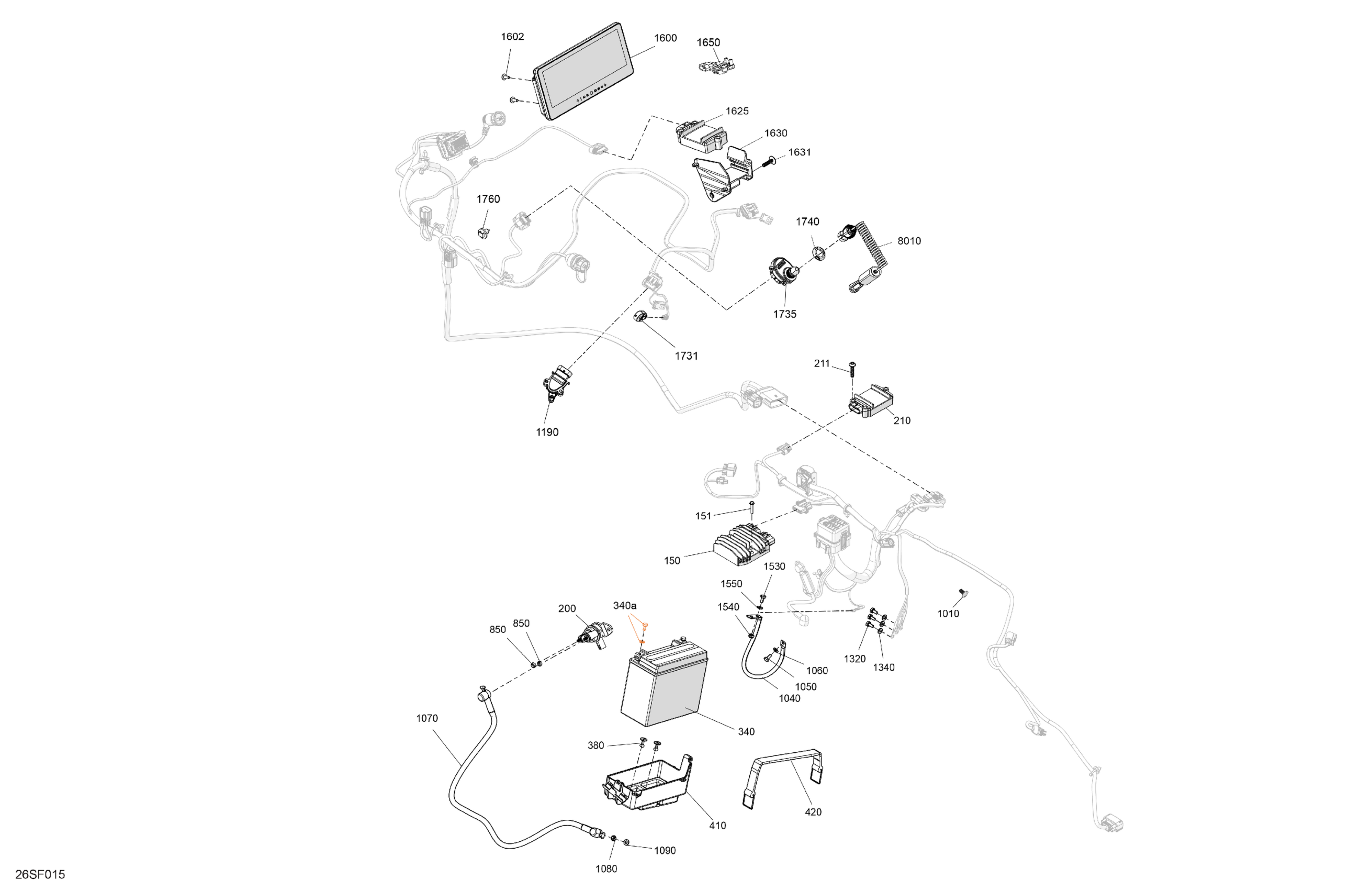

Sea-doo North America - RXP - 325 - X - 23TD - Gulfstream Blue - Audio, 2026 08- Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

151

Hex. Flange Screw K50 X 25

250000680

$1.89

200

Starter Relay

278003012

$42.49

210

Relay

278004052

$95.49

211

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

340a

Battery Bolt Kit

250000282

$7.29

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1010

Black Dart

293730010

$0.99

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1600

Multifunction Gauge 10

710010374

$2,039.99

1602

Torx Truss Screw M6 X 16

250000922

$1.90

1625

GPS

278004506

$109.99

1630

GPS Support

278003957

$14.49

1631

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

1650

Throttle Position Sensor

278002283

$119.99

1731

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

1735

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

1740

Specialized Nut

278004274

$3.28

1760

Mount Dart

710008294

$1.04

4700

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

4710

Insert

291003793

$3.56

8010

Cut Off Switch Tether Cord

278004669

$72.99
