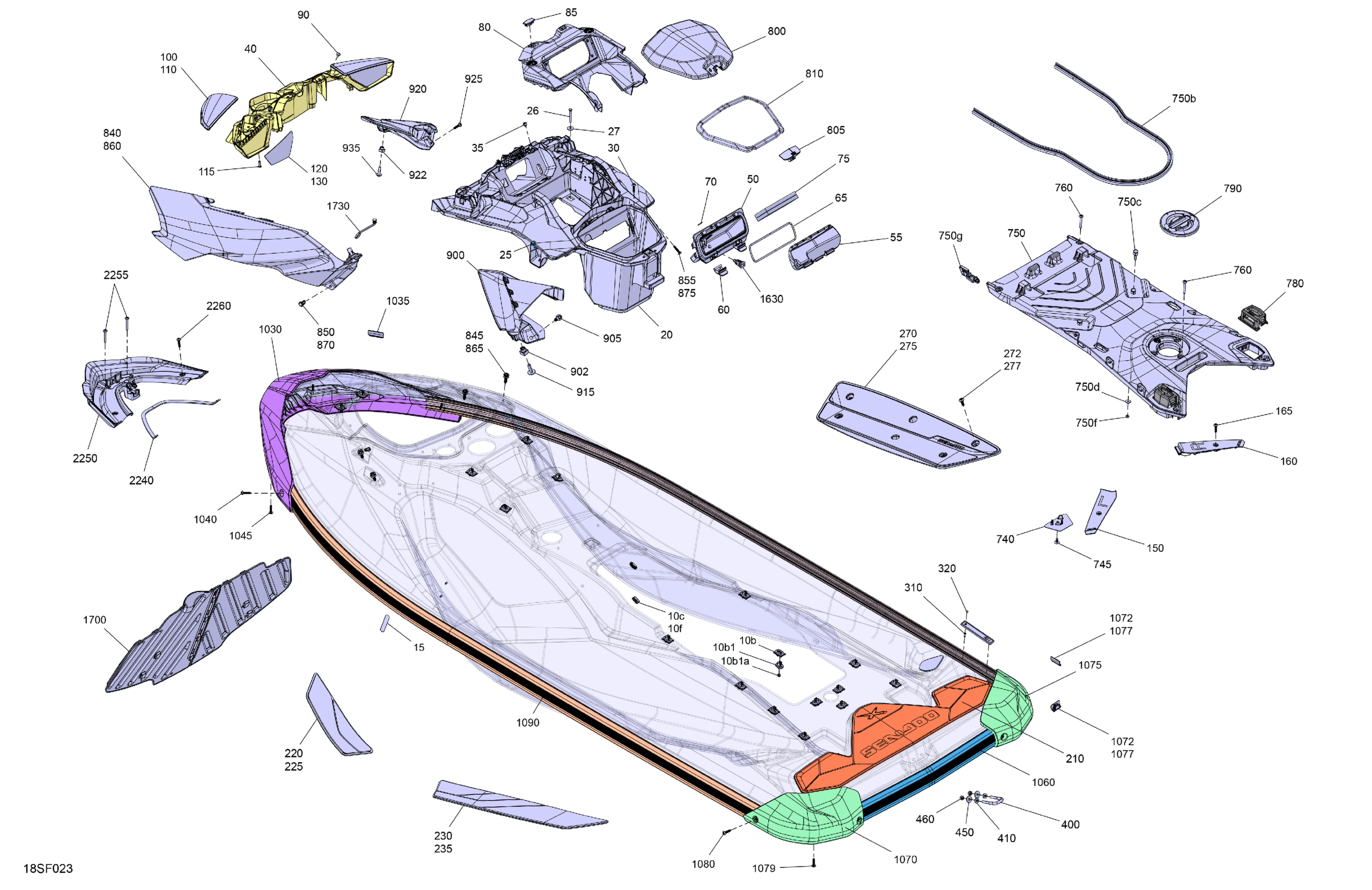

Sea-doo RXP - 325 - X - 23TD - Gulfstream Blue - Audio, 2026 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

10b1a

Elastic Stop Nut M6, Brass

232561200

$4.23

10c

Anchorage Tie Wrap

293750109

$1.25

10f

Anchorage Tie Wrap

293750109

$1.25

15

Decal

291005381

$1.09

20

Console

291005315

$184.99

25

Hex Screw SEMS M6X35, SS

250000969

$2.11

26

Hex. Screw M6 X 50

207165060

$0.92

27

Flat Washer M6.6 X 22

250200022

$2.72

30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

35

Rubber Bumper

293830005

$8.09

40

Mirror Support

291005178

$68.99

50

Deep Black, Storage Box

291006491

$24.49

55

Box Cover

264000158

$14.49

60

Clip

269501718

$15.89

65

Gasket

293250591

$17.99

70

Vent Membrane

264000137

$12.99

75

Sealed Compartment Foam

264000135

$12.99

80

Deep Black, Console Panel

291006453

$57.99

85

Cap

708400856

$12.49

90

Rubber Bumper

293830005

$8.09

100

Monolith Black, LH Miror Cover

269502561

$55.99

110

Monolith Black, RH Miror Cover

269502562

$55.99

115

Hex. Screw 10-14 X 7/8”

211000023

$3.59

120

LH Mirror Glass

269502274

$88.99

130

RH Mirror Glass

269502276

$88.99

150

LH Spacer

291005127

$20.99

160

RH Spacer

291005182

$20.99

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

210

RH Anti Slip Deck Mat

291006314

$142.99

220

LH Front Anti Slip Mat

291006316

$29.49

225

RH Front Anti Slip Mat

291006318

$29.49

230

LH Rear Anti Slip Mat

291006319

$127.99

235

RH Rear Anti Slip Mat

291006320

$127.99

270

Can-Am Red, LH Front Footrest Ass'y

291005799

$47.99

272

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

275

Can-Am Red, RH Front Footrest Ass'y

291005800

$47.99

277

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

740

Hose Protector

291004941

$4.69

745

Black, Dart

293730011

$0.99

750

Access Cover Ass'y | Includes 750 to 750g

291006468

$219.99

750b

Was 293200062 Seal

219704366

$76.49

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.77

750f

Elastic Stop Nut M6, Brass

232561200

$4.23

750g

Seal

291004717

$12.99

760

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

780

Linq Bases Kit

295100858

$13.30

790

Access Cap Ass'y

291004481

$10.99

800

Deep Black, Glove Box Cover

291005346

$67.99

805

Black, Latch

264000164

$15.99

810

Cover Gasket

293250715

$30.99

840

Gulfsream Blue, LH Front Body Panel

291006545

$184.99

845

Dard

293730071

$1.15

850

Tuflok Plastic Rivet

293150230

$1.47

855

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

860

Gulfsream Blue, RH Front Body Panel

291006544

$184.99

865

Dard

293730071

$1.15

870

Tuflok Plastic Rivet

293150230

$1.47

875

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

900

LH Front Grille Panel

291005330

$12.49

902

Insert

291003793

$3.56

905

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

915

Hexagonal Cap Screw M6 X 25

250000978

$4.44

920

RH Front Grille Panel

291005331

$12.49

922

Insert

291003793

$3.56

925

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

935

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1030

Bumper Front

291005082

$104.99

1035

Plastite Housing

291005701

$8.59

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1060

Lateral Bumper

291005510

$56.99

1070

LH Rear Bumper Corner

291005083

$20.49

1072

Plastite Housing

291005701

$8.59

1075

RH Rear Bumper Corner

291005084

$20.49

1077

Plastite Housing

291005701

$8.59

1079

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1090

Lateral Bumper

291006724

$56.99

1100a

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1100b

Tuflok Plastic Rivet

293150230

$1.47

1100c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1100d

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

1630

Wiring Grommet

293720121

$4.59

1700

Separation Panel Ass'y

291005587

$104.99

1730

Holding Strap

269502111

$18.49

2240

Gasket, Neoprene 2000Mm Long

219704476

$15.36

2250

Body Deflector

291005108

$57.99

2255

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

2260

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66
