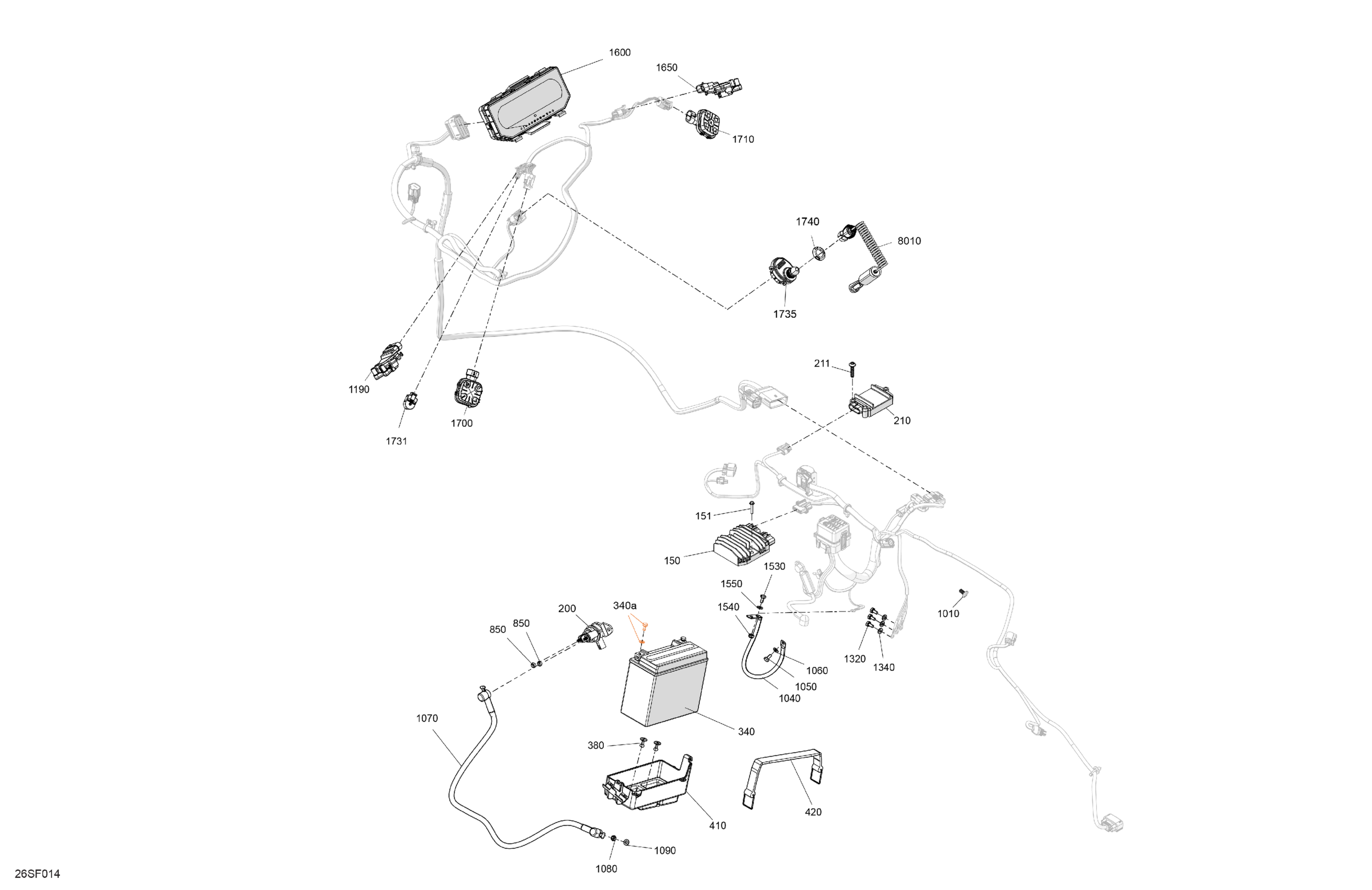

Sea-doo RXP - 325 - X - 23TC - Gulfstream Blue, 2026 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Hex. Flange Screw K50 X 25

250000680

$1.67

Starter Relay

278003012

$35.07

Relay

278004052

$88.78

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Pop Rivet 3/16"

293150123

$3.43

Battery Support

278003473

$22.72

Fuel Tank Strap

293850095

$14.27

Elastic Stop Nut M6, Brass

232561200

$3.51

Black Dart

293730010

$0.81

Ground Battery Cable

278003451

$31.17

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Starter Cable

278003369

$31.17

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

Full Size Multifunction Mono Gauge

278003432

$729.07

Throttle Position Sensor

278002283

$94.22

LH Switch Keypad

278003726

$101.37

RH Switch Keypad

278003474

$101.37

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

Specialized Nut

278004274

$2.72

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Insert

291003793

$2.44

Cut Off Switch Tether Cord

278004669

$58.47
