03- Mechanic - Steering

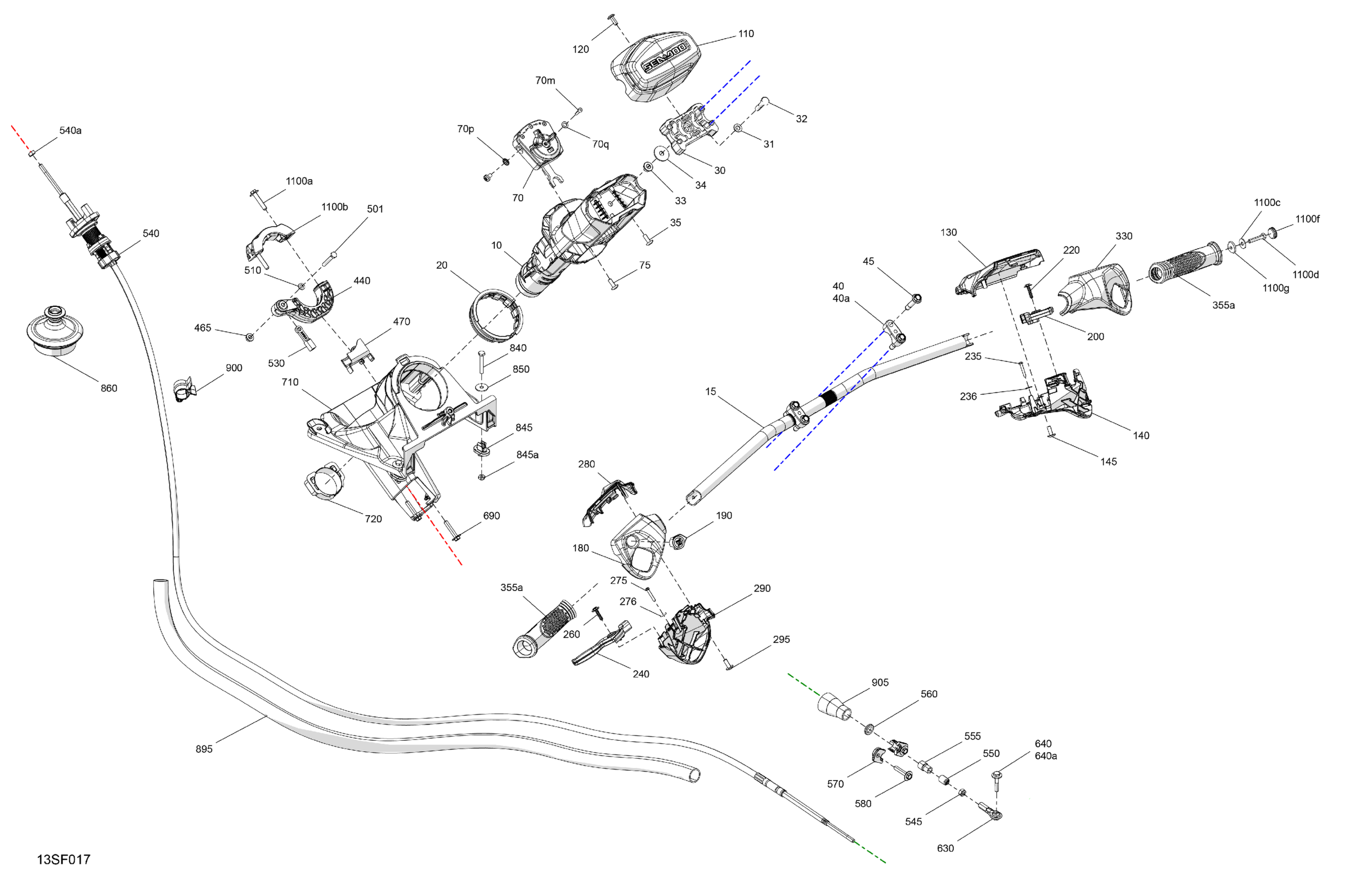

Sea-doo North America - RXP - 325 - X - 23TC - Gulfstream Blue, 2026 03- Mechanic - Steering Diagram
#
10
Steering Column
277002416
$239.99
15
Deep Black, Handlebar
277002180
$103.99
20
Wear Ring
277001874
$12.17
30
Anodized Lower Handlebar Support
277002231
$65.99
31
Flat Washer M8, Stainless
234080600
$1.48
32
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
33
Hex. Flange Nut M8
233181600
$1.05
34
Flat Washer 8 mm, Stainless
250200175
$3.06
35
Torx Truss Screw M6 X 16
250000922
$1.90
40
Steering Support | Includes 40 to 40a
506152751
$13.99
40a
Not Available As Spare Parts
XXX
Unavailable
45
Hex. Screw Flange DIN.6921 S.Grip
250000834
$3.91
70
Damper | Includes 70 to 70q
506153412
$279.99
70m
Socket Head Screw M4 X 16
250001237
$10.49
70p
Sealing Washer
250200114
$4.44
70q
Flat Washer 4 mm, Stainless
234042600
$1.15
75
Torx Truss Screw M6 X 16
250000922
$1.90
110
Deep Black / Can-Am Red, Steering Pad
277002380
$28.99
120
Torx Truss Screw M6 X 16
250000922
$1.90
130
RH Upper Housing
277002040
$109.99
140
RH Lower Housing
277002036
$104.99
145
Torx Truss Screw M6 X 16
250000922
$1.90
180
LH Cover
277002314
$18.99
190
Red Button Switch
277002327
$9.21
200
Hand Lever Accelerator
277002138
$38.99
220
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
235
Hex. Flange Screw K40 X 25
241142560
$2.64
236
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
260
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
275
Hex. Flange Screw K40 X 25
241142560
$2.64
276
Flat Washer 4 mm, Stainless
234042600
$1.15
280
LH Upper Housing
277002041
$109.99
290
LH Lower Housing
277002035
$104.99
295
Torx Truss Screw M6 X 16
250000922
$1.90
330
RH Cover
277002315
$18.99
355a
Handlebar Grip
277002286
$19.99
440
Steering Arm
277002319
$9.19
465
Nut Flange Elastic M6
233261200
$0.99
470
Spacer
277001654
$15.99
501
Hex. Screw M6 X 40
207064060
$1.69
510
Stainless Flat Washer M6
234061600
$0.33
530
Ball Joint
277001180
$35.99
540
Steering Cable | Includes 540 to 540b
277002450
$121.49
540a
Hex. Nut 1/4"-28
211100056
$0.69
540b
Wiper Rod
277001582
$11.11
545
Hex. Nut 1/4"-28
211100056
$0.69
550
Wiper Rod
277001582
$11.11
555
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Ring Halves
277001856
$12.99
580
Hexagonal Cap Screw M6 X35
250000399
$4.44
630
Ball Joint
277000775
$51.99
640
Hex Sems Screw M6X35
250000970
$2.11
640a
Hex Screw SEMS M6X35, SS
250000969
$2.11
690
Hexagonal Cap Screw M6 X35
250000399
$4.44
710
Steering Column Support
277002209
$51.99
720
Wear Ring
277002318
$15.99
840
Hex. Screw M6 X 40
207164060
$3.38
845
Housing Nut Overmolded | Includes 2060 to 2060a
291004662
$2.00
845a
Elastic Stop Nut M6, Brass
232561200
$4.23
850
Flat Washer M6.6 X 22
250200022
$2.72
860
Cable Boot
293720116
$4.49
895
Corrugated Sheath 22MM - 1250MM
276000520
$26.49
900
Cable Retainer
275500527
$2.68
905
Rope Guide
277002150
$0.93
1100a
Hexagonal Cap Screw M6 X35
250000399
$4.44
1100b
C Clamp
277002085
$9.19
1100c
Flat Washer M6, Stainless
234062600
$0.77
1100d
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
1100f
Black, Cap
277000203
$9.39
1100g
Insert Grip Handle
277001863
$8.83
