Description

Price

1

Timing/Drive Cover Ass'y | Includes no. 1-9

420912427

$762.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Oil Seal

420650316

$11.65

5

Rotary Seal

420650371

$43.49

6

Dowel 11.8X13

420229155

$11.60

7

Needle Pin

420929070

$1.90

8

Balll Bearing

420232855

$30.49

9

Lock Ring

420945880

$4.44

10

Stator Plate

420889728

$319.49

11

Torx Flange Screw M6 X 35

420641258

$3.38

12

Torx Flange Screw M6 X 16

420641048

$2.96

13

Retaining Plate

420926303

$1.39

14

Magneto Flywheel

420296900

$461.99

15

Trigger Wheel

420966851

$18.49

16

Starter Double Gear 160/86 T

420834916

$285.99

17

Hex Screw

295501162

$15.28

18

Oil Collector Shell

420201401

$71.99

19

Torx Flange Screw M6 X 20

420440207

$3.06

20

Stop Sleeve

420660280

$14.75

21

Output Sleeve

420947773

$121.99

22

Needle Bushing

420232482

$20.99

23

Starter Drive

420888041

$274.99

24

Spring Disk | Includes no. 18-19

420238307

$28.49

25

Thrust Washer

420827280

$8.47

26

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

27

O-Ring

420631310

$4.44

28

Carbon Brush Set

420881340

$67.99

29

Starter Gear, 9 Teeth

420834522

$74.99

30

Retaining Ring

420845601

$4.55

31

Torx Flange Screw M6 X 25

420641238

$3.27

32

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

33

O-Ring

420431580

$14.83

34

Torx Flange Screw M6 X 16

420641048

$2.96

35

Timing Drive Cover Gasket (1603 SXHO) | Timing drive cover (1603 SXHO)

420230066

$20.49

36

Clamp

420853414

$18.49

37

Torx Flange Screw M6 X 35

420641258

$3.38

38

Torx Flange Screw M6 X 85

420641228

$7.41

39

Ball Bearing With Bellows Ass'y | Includes no. 33-35

420832643

$142.99

40

O-Ring

420631612

$4.33

41

Gear Clamp 46.8-50.0MM

420853023

$7.41

42

Gear Clamp

420851653

$7.41

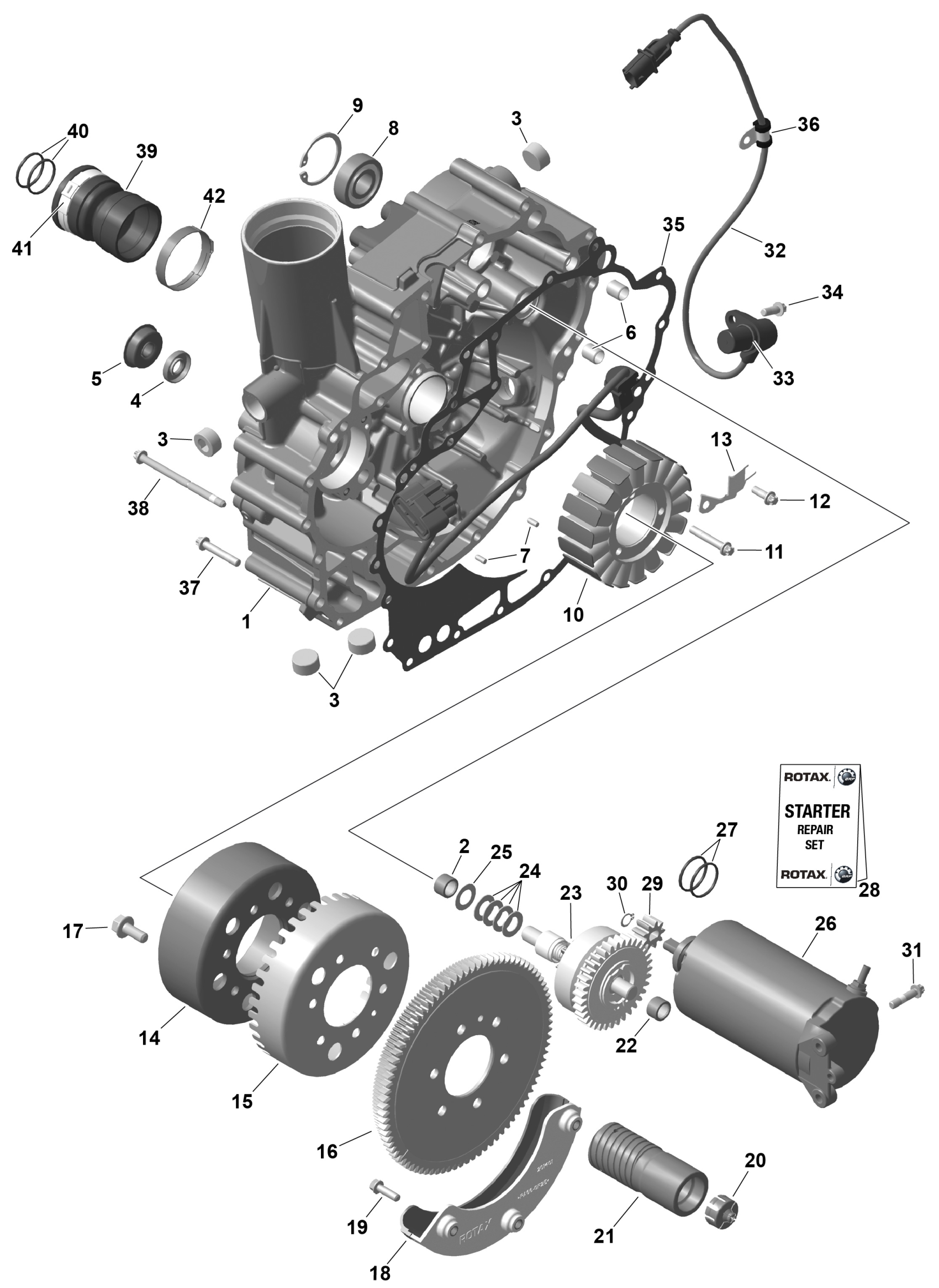

Sea-doo North America - RXP - 325 - X - 23TC - Gulfstream Blue, 2026 01- ROTAX - Magneto and Electric Starter Diagram
