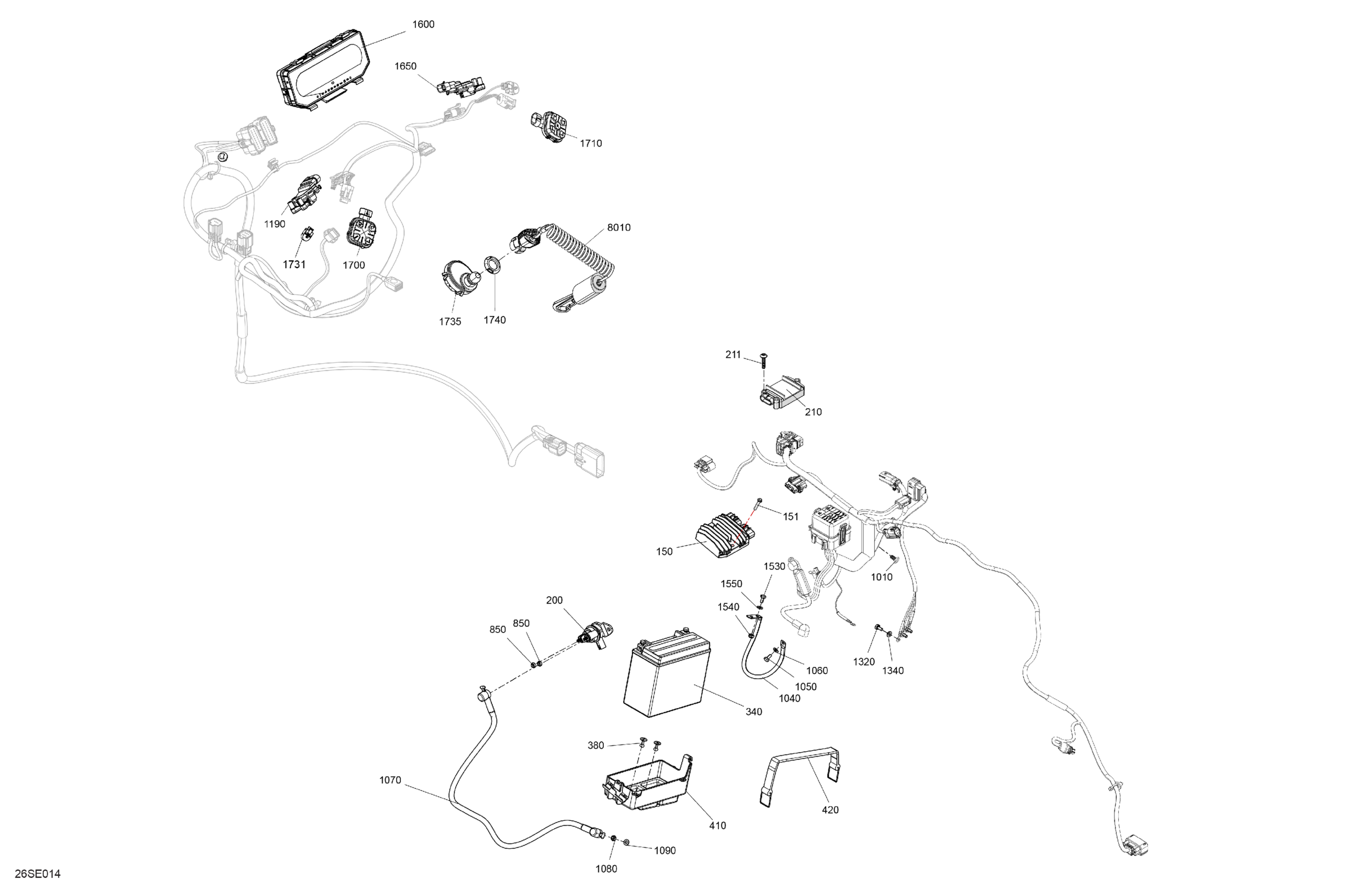

Sea-doo RXP - 325 - X - 23SD - Metallic Tan, 2025 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

151

Hex. Flange Screw K50 X 25

250000680

$1.67

200

Starter Relay

278003012

$40.27

210

Relay

278004052

$88.78

211

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

380

Pop Rivet 3/16"

293150123

$3.94

410

Battery Support

278003473

$26.09

420

Fuel Tank Strap

293850095

$16.39

850

Elastic Stop Nut M6, Brass

232561200

$4.03

1010

Black Dart

293730010

$0.93

1040

Ground Battery Cable

278003451

$35.79

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1060

Stainless Flat Washer M6

234061600

$0.28

1070

Starter Cable

278003369

$35.79

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1540

Elastic Stop Nut M6, Brass

232561200

$4.03

1550

Stainless Flat Washer M6

234061600

$0.28

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$104.99

1700

LH Switch Keypad

278003726

$116.39

1710

RH Switch Keypad

278003474

$116.39

1731

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

1735

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

1740

Specialized Nut

278004274

$3.12

8010

Cut Off Switch Tether Cord

278004669

$67.13
