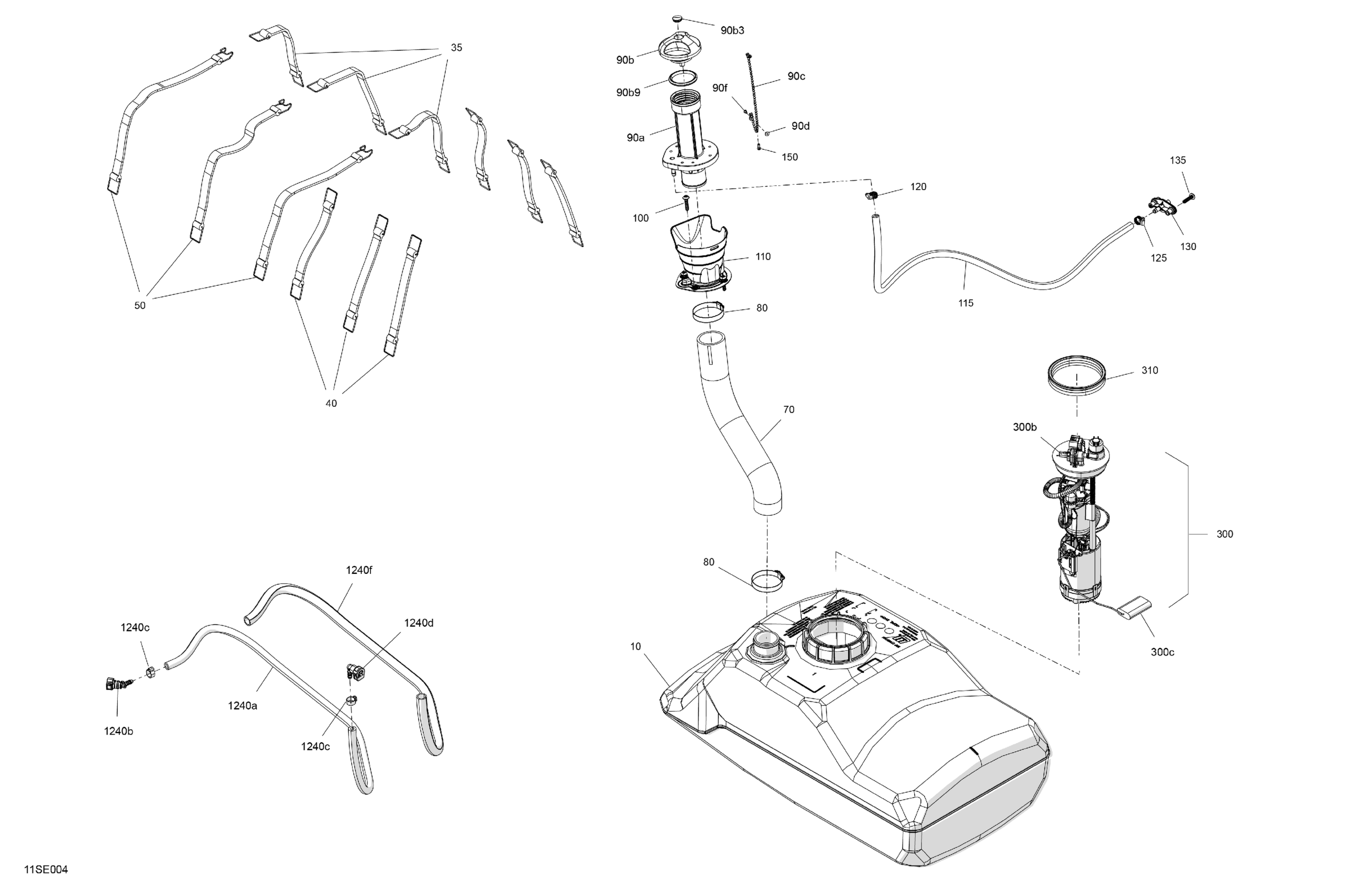

Sea-doo North America - RXP - 325 - X - 23SB - Ice Metal - Audio, 2025 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

275501144

$359.99

Holding Strap

293850112

$18.49

Holding Strap

293850112

$18.49

Holding Strap

293850134

$20.99

Fuel Tank Hose

275501025

$80.99

Norma Clamp

293650081

$12.18

90a

Filler Neck

275501005

$36.99

90b

Fuel Cap Ass'y | Includes 90b to 90b9

275501094

$59.49

90b3

Black, Snap Cap

293000034

$9.39

90b9

Gasket

293250417

$3.91

90c

Fuel Cap Chain

275500972

$18.54

90d

Flat Washer M3, Stainless

234032600

$0.55

90f

Pop Rivet 1/8"

390407900

$1.49

100

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

110

Gas, Deflector

293250480

$10.49

115

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

120

Clamp Gear

293650285

$3.27

125

Clamp Gear

293650285

$3.27

130

Fitting Sub Ass'y

275501022

$8.18

135

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

150

Screw K40 X 10

241140060

$1.48

300

Fuel Pump Ass'y | Includes 300 to 300c

275501036

$670.99

300a

Sensor Lever

275500780

$224.99

300b

Pressure Sensor

275501164

$50.99

300c

Fuel Filter

270600113

$33.99

310

Pump Gasket

293250514

$19.49

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

1240b

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Quick Disconnect

275500921

$16.49

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.49
