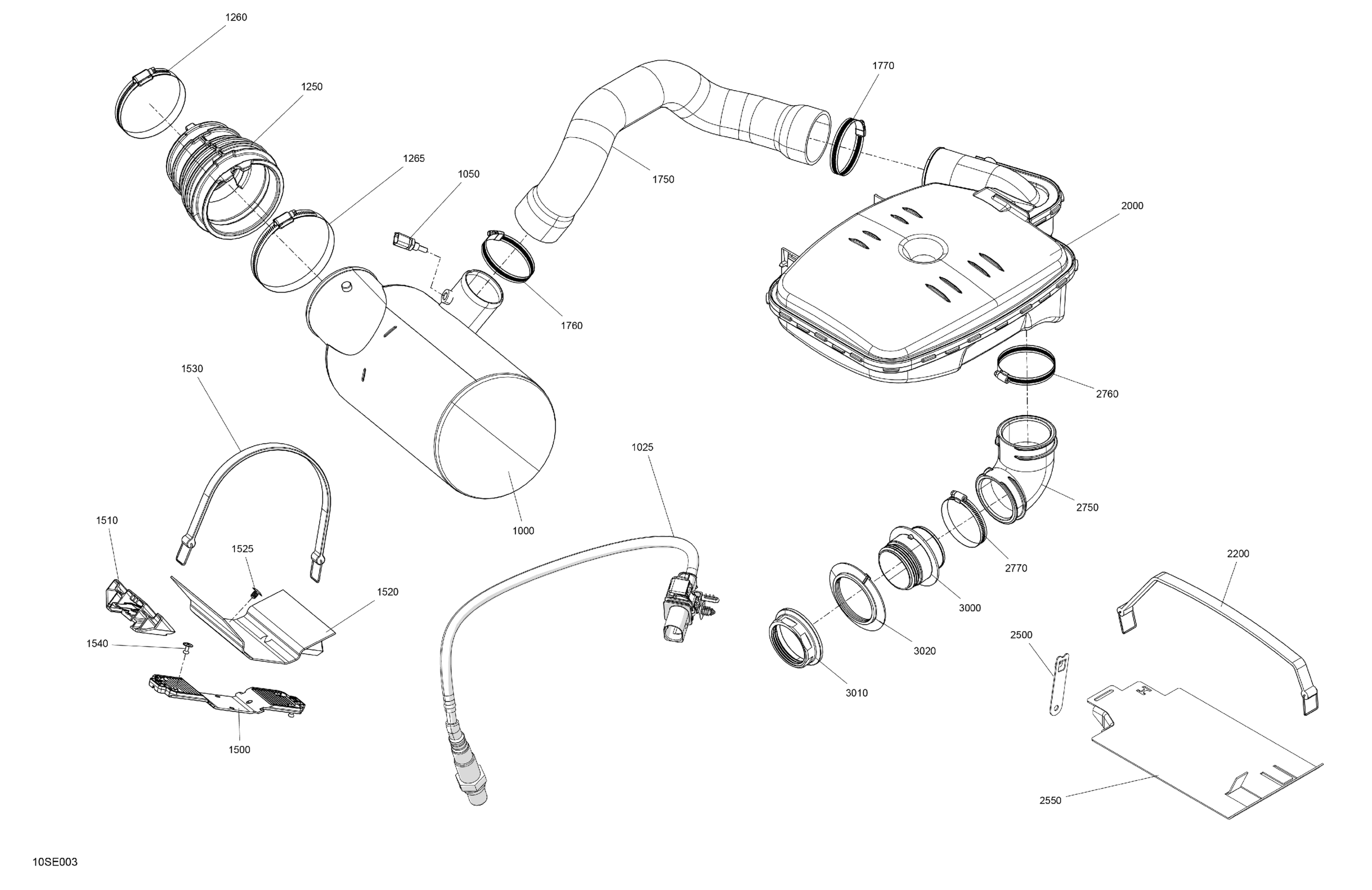

Sea-doo RXP - 325 - X - 23SB - Ice Metal - Audio, 2025 Engine - Exhaust Diagram

Description

Price

1000

Muffler

274001685

$676.09

1025

Oxygen Sensor

707602926

$148.48

1050

Temperature Sensor

278002895

$36.54

1250

Boot

274001692

$19.37

1260

Gear Clamp This part replaces 293650281.

293650202

$14.61

1265

Gear Clamp

293650310

$18.63

1500

Muffler Support

293450390

$14.25

1510

Stopper

274001721

$16.39

1520

Rubber Pad

293830209

$13.06

1525

Christmas Tree Anchorage

293730113

$0.99

1530

Strap

293850120

$17.13

1540

Pop Rivet 3/16

293150186

$1.87

1750

Front Exhaust Hose

274001709

$74.60

1760

Tridon Gear Clamp

293650244

$8.28

1770

Tridon Gear Clamp

293650244

$8.28

2000

Resonator

274001751

$145.49

2200

Strap

293850120

$17.13

2500

Anchorage Strap

293850157

$11.33

2550

Rubber Pad

293830173

$13.06

2750

Rear Exhaust Hose

274001628

$18.63

2760

Tridon Gear Clamp

293650244

$8.28

2770

Tridon Gear Clamp

293650244

$8.28

3000

Exhaust Fitting

274001742

$33.55

3010

77 MM Nut

274001743

$16.39

3020

Washer

274001587

$13.24
