02- Engine - Cooling

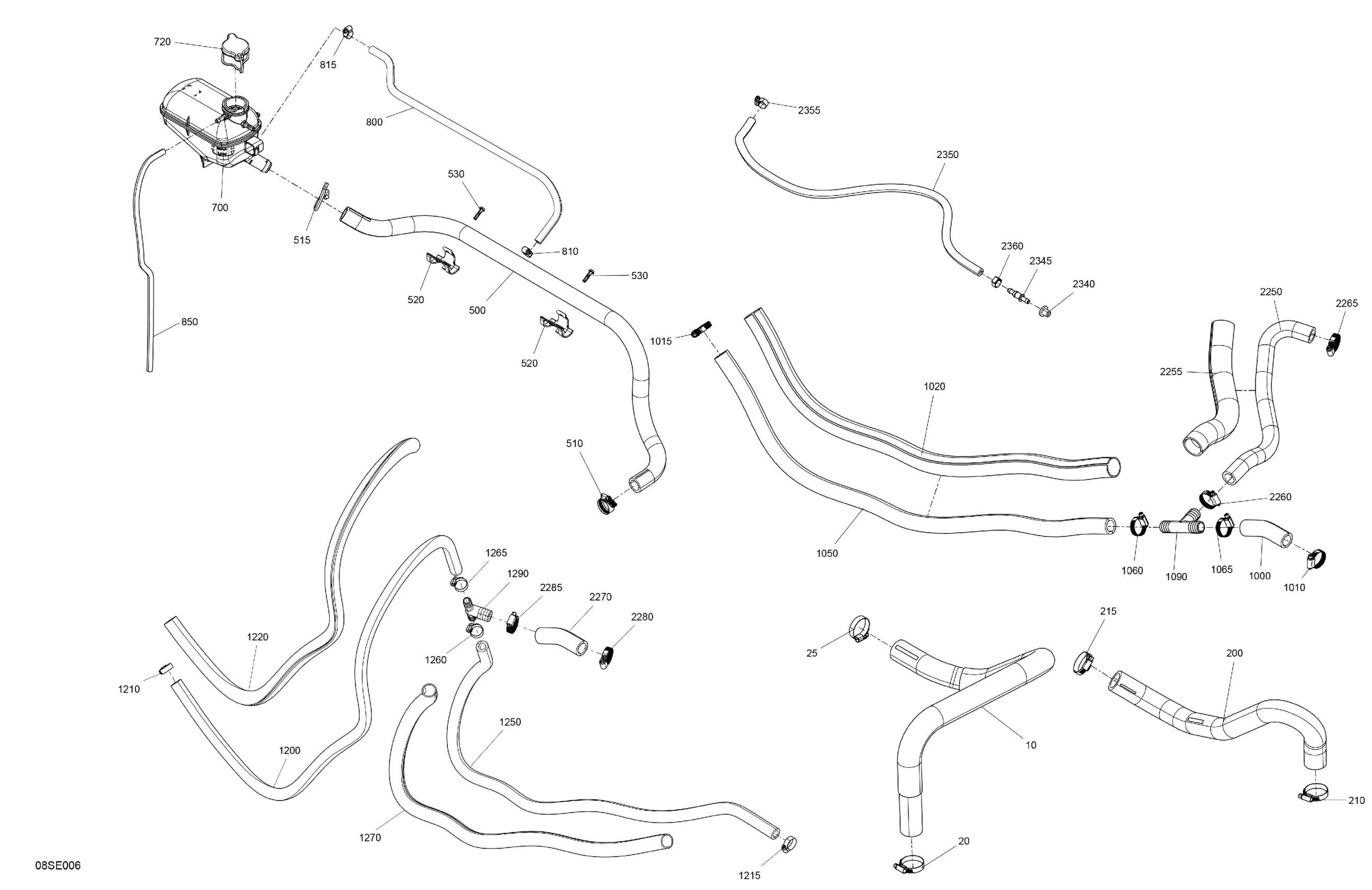

Sea-doo North America - RXP - 325 - X - 23SB - Ice Metal - Audio, 2025 02- Engine - Cooling Diagram
#
10
Hose
276000516
$70.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
Formed Hose
276000517
$56.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Coolant Tank Hose
276000537
$37.99
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
520
Hose Support
270001126
$8.43
530
Hex. Flange PT Screw K50 X 20
241152040
$2.11
700
Coolant Tank
276000419
$119.99
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
800
Hose 6,4 MM ID
276000425
$7.41
810
Gear Clamp
293650287
$2.11
815
Gear Clamp
293650287
$2.11
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
1000
Hose 19Mm X 4000 mm Long
219704613
$50.99
1010
Gear Clamp
293650284
$4.44
1015
Gear Clamp
293650284
$4.44
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1050
Hose 19Mm X 4000 mm Long
219704613
$50.99
1060
Gear Clamp
293650284
$4.44
1065
Gear Clamp
293650284
$4.44
1090
T-Fitting
293710131
$15.87
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Clamp Gear
293650285
$3.27
1215
Clamp Gear
293650285
$3.27
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
1250
Was 276000001 Hose 12.5 mm
219704394
$51.99
1260
Clamp Gear
293650285
$3.27
1265
Clamp Gear
293650285
$3.27
1270
Was 515175319 Tubing 22 mm
219704423
$14.99
1290
T-Fitting
293710132
$12.65
2250
Formed Hose
276000422
$22.49
2255
Tubing 25 MM 1000MM Long
219704402
$15.99
2260
Gear Clamp
293650284
$4.44
2265
Gear Clamp
293650284
$4.44
2270
Hose 19Mm X 4000 mm Long
219704613
$50.99
2280
Gear Clamp
293650284
$4.44
2285
Gear Clamp
293650284
$4.44
2340
Grommet
293720029
$1.59
2345
Male Connector
414518500
$4.23
2350
Hose 6,35 Mm Id 4000Mm Long
219704547
$98.99
2355
Gear Clamp
293650287
$2.11
2360
Oetiker Gear Clamp
293650025
$3.09
