01- ROTAX - Crankcase

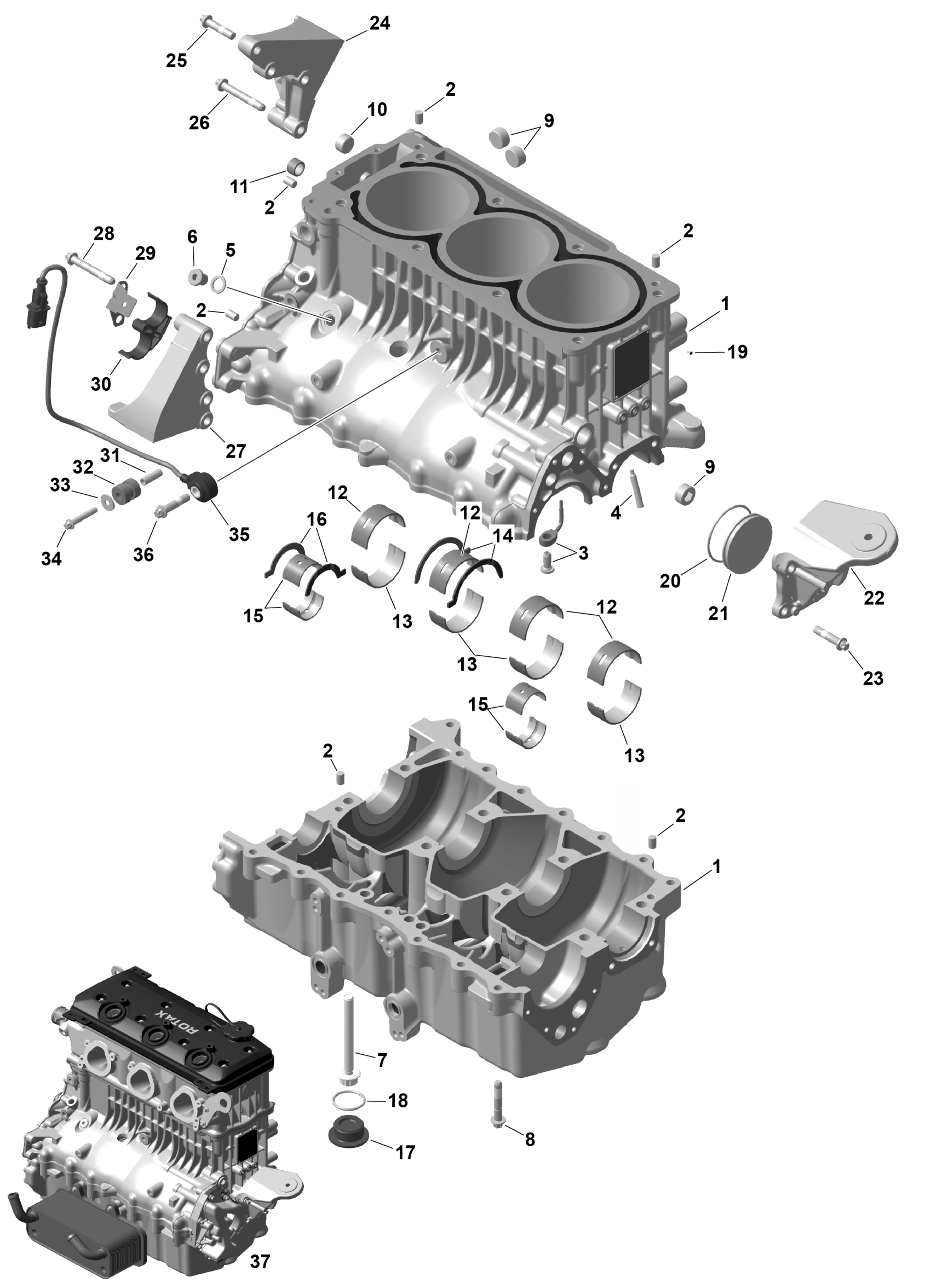

Sea-doo North America - RXP - 325 - X - 23SB - Ice Metal - Audio, 2025 01- ROTAX - Crankcase Diagram
#
Description
Price
1
Engine Block Ass'y | Includes no. 1-11
420894345
$2.00
2
Center Pin 8 X 12
420632010
$4.01
3
Oil Spray Nozzle
420956773
$35.99
4
Not Available As Spare Parts
XXX
Unavailable
5
Aluminum Sealing Ring
420250016
$5.39
6
Plug Screw M12
420841923
$15.89
7
Torx Flange Screw M10 X 1.25
420641121
$7.41
8
Hex. Flange Screw M8 X 45
420641208
$7.51
9
Plug Screw M20 X 1.5
420641317
$14.22
10
Screw
420441051
$13.22
11
Needle Bushing
420232482
$20.99
12
Plain Half-Bearing
420933456
$16.34
13
Plain Half-Bearing
420933466
$16.34
14
Half-Ring
420933475
$11.63
15
Plain Bearing Half
420933442
$19.99
16
Half-Ring
420933470
$7.41
17
Plug Screw M30 X 1.5 | Includes no. 16-17
420641174
$20.99
18
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
$10.33
19
Grooved Pin
420249073
$1.90
20
O-Ring 57-3 Cylinder Bloc Plug Cover | Included in gasket kit
420430411
$14.28
21
Plug Cover
420660110
$7.41
22
Front Engine Bracket
420811794
$46.99
23
Torx Flange Screw M8 X 35
420641188
$7.41
24
Engine Bracket PTO, Exhaust
420811788
$75.99
25
Torx Flange Screw M8 X 35
420641188
$7.41
26
Torx Flange Screw M8 X 55
420641213
$7.41
27
Engine Bracket PTO, Exhaust
420811784
$63.99
28
Torx Flange Screw M8 X 55
420641213
$7.41
29
Retaining Plate
420851740
$20.99
30
Hose Bracket
420660290
$16.37
31
Spacer
420847971
$7.41
32
Rubber Bracket
420660090
$4.12
33
Flat Washer M6
420827968
$1.90
34
Torx Flange Screw M6 X 35
420641258
$3.38
35
Noise Sensor
420664031
$63.99
36
Torx Flange Screw M8 X 35
420641188
$7.41
37
Engine 1603 Sxho
420160357
$5.00
