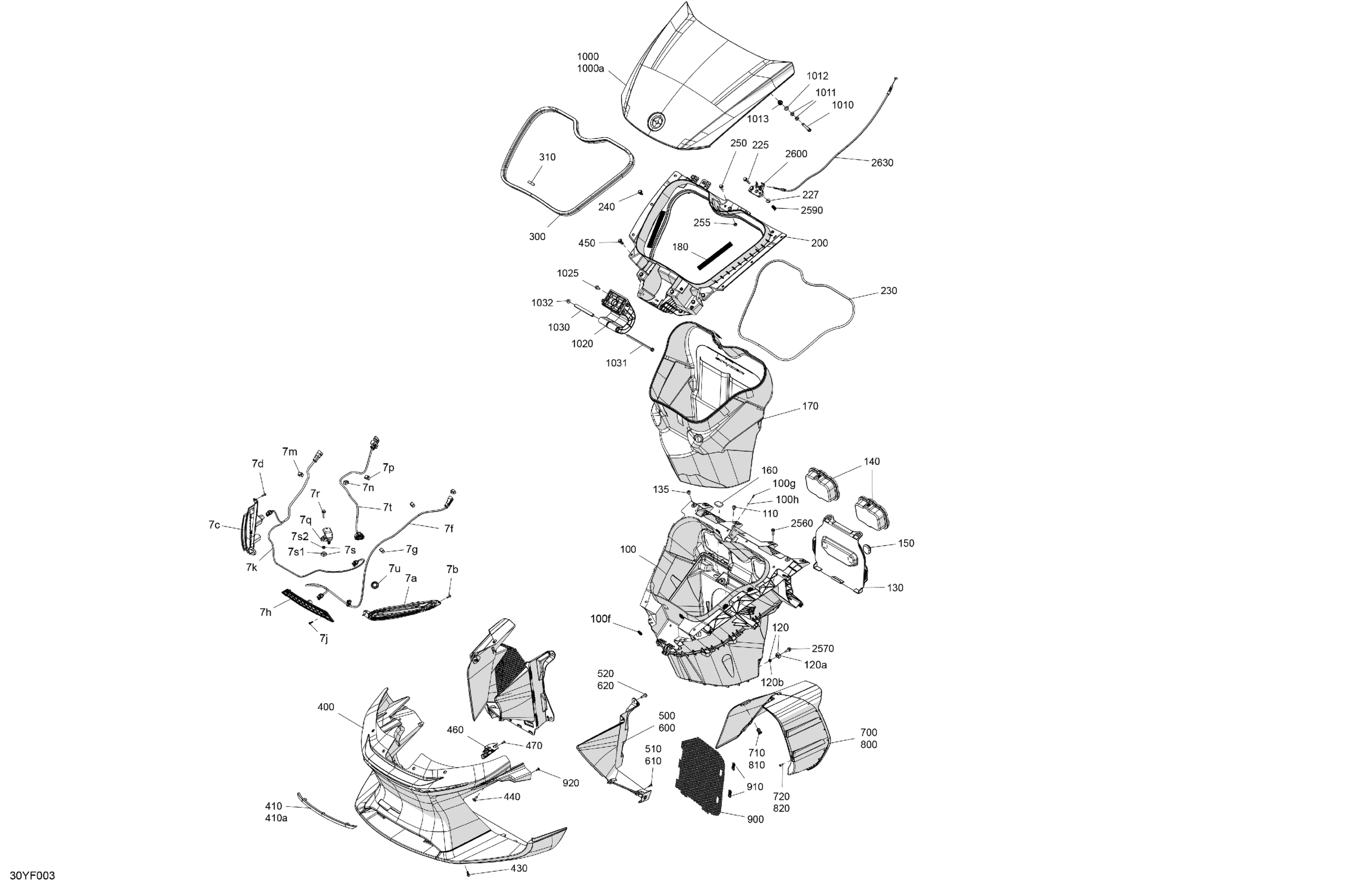

Can-Am RT - STS - G2TB - Mars Red, 2026 Body - Front Storage Tray Diagram

#

Description
Price

7a

LH Signature Light

710006812

$164.49

7b

Torx-Truss Pt K40 X 16

250000759

$2.11

7c

RH Signature Light

710006813

$164.49

7d

Torx-Truss Pt K40 X 16

250000759

$2.11

7f

Accessory Lighting Harness

710006760

$25.99

7g

Clip

710010204

$1.67

7h

Lighting Harness Connector Cap

708400406

$5.45

7j

Hex. Flange Screw K40 X 16

250001123

$2.11

7k

Signature Light Harness

710006815

$27.99

7m

Clip

710010204

$1.67

7n

Clip

710010204

$1.67

7p

Clip

710010204

$1.67

7q

Pressure And Temperature Sensor

707000995

$88.99

7r

Hex. Flange Screw M6 X 25

207662554

$1.48

7s

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

7s1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

7s2

Hex. Elastic Stop Nut M6

232561600

$1.15

7t

AAPTS Harness

710004764

$17.49

7u

Cap

705003464

$11.99

100

Bonded Storage Box | Includes 100 to 100H

705018436

$489.99

100f

Dual Lock Velcro Washer 3/4"

293740028

$4.19

100g

Rivet

390401400

$0.53

100h

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

110

Rubber Bumper

293830005

$8.09

120

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

120a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

120b

Hex. Elastic Stop Nut M6

232561600

$1.15

130

Battery Cover Ass'y

705019020

$31.99

135

Torx Truss Screw M6 X 12

250000767

$2.00

140

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.49

150

Rubber Plug

710002858

$2.85

160

Cap

708400166

$3.89

170

Soft Box Liner

708304274

$119.99

180

Velcro Strip

293740092

$13.24

200

Deep Black, Upper Box Support

708201071

$55.99

225

Hex. Flange Screw M6 X 35

207663544

$0.90

227

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Neoprene Seal 1420MM

293250529

$11.49

240

Tuflok Plastic Rivet

293150230

$1.47

250

Hex. Flange Screw M6 X 16

207661644

$0.74

255

Elastic Stop Nut M6

232561414

$0.55

300

Gasket 4100Mm Long

219704387

$78.99

310

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

400

Deep Black, Front Bumper

708201076

$248.99

410

Liquid Titan, Upper Bumper Trim | Includes 410 to 410a

708201068

$36.99

410a

Upper Bumper Trim

708201124

$22.49

430

Torx Screw Truss Head K50X20 T20

250000760

$2.11

440

Torx Screw M6 X 16

250000755

$0.87

450

Tuflok Plastic Rivet

293150230

$1.47

460

Sensor Support

708201084

$11.49

470

Torx Truss PT K40 x 12

250001131

$2.11

500

Deep Black, LH Inner Air Scoop

708200879

$85.99

510

Torx Truss PT K40 x 12

250001131

$2.11

520

Torx Screw M6 X 20

250000712

$2.11

600

Deep Black, RH Inner Air Scoop

708200880

$85.99

610

Torx Truss PT K40 x 12

250001131

$2.11

620

Torx Screw M6 X 20

250000712

$2.11

700

Deep Black, LH Exterior Scoop

708201086

$85.99

710

Tuflok Plastic Rivet

293150230

$1.47

720

Torx Truss PT K40 x 12

250001131

$2.11

800

Deep Black, RH Exterior Scoop

708201087

$85.99

810

Tuflok Plastic Rivet

293150230

$1.47

820

Torx Truss PT K40 x 12

250001131

$2.11

900

Black Epoxy, Air Scoop Grille | Includes 900 to 900b

708200970

$53.99

910

Flat Clip

705004838

$7.73

920

Torx Truss PT K40 x 12

250001131

$2.11

1000

Mars Red, Front Hood | Includes 1000 to 1000a

708201410

$389.99

1000a

Bare, Front Hood

708200869

$244.99

1010

Lug

705002223

$25.99

1011

Hex. Jam Nut M8

232180600

$0.67

1012

Flat Washer 8 mm

234081410

$0.83

1013

Elastic Flange Nut M8

233281464

$1.01

1020

Black, Hood Hinge | Includes 1020 to 1020a

708200886

$56.99

1025

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

1030

Spacer

705003322

$27.99

1031

Hex. Flange Screw M6 X 130

230663084

$3.38

1032

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2560

Hexagonal Head Screw

210262050

$2.11

2570

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

2590

Spring

705003911

$3.99

2600

Latch

705018738

$28.99

2630

Hood Cable

517305742

$42.99
