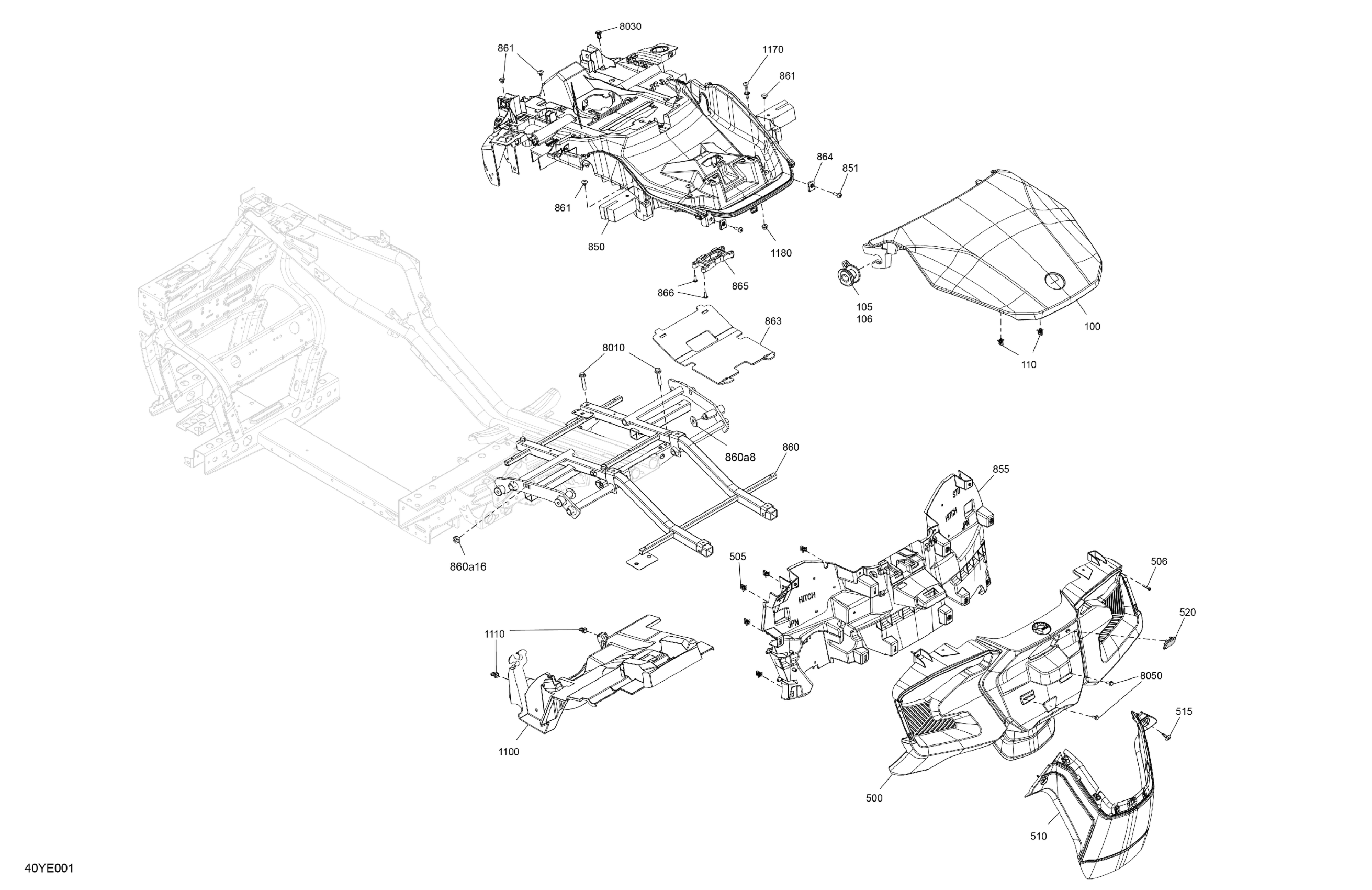

Can-Am RT STD - B2SA - Hyper Silver, 2025 Body - Cargo Structure And Rear Fenders Diagram

Description

Price

100

Hyper Silver, Rear Fairing

708003404

$254.99

105

LH Anchorage Socket

708400404

$2.79

106

RH Anchorage Socket

708400441

$2.79

110

Edge Clip

517302785

$0.88

500

Rear Fender

219800618

$249.99

505

Edge Clip

517302785

$0.88

506

Hex. Flange Screw K40 X 25

241142560

$2.64

510

Rear Fender Extention

708301747

$204.99

515

Tuflock Phillips Plastic Screw

414745900

$1.69

520

Cap

708304956

$3.89

850

Rear Box Support

708304842

$109.99

851

Torx Screw M6 X 20

250000722

$1.68

855

Rear Box Support

708304839

$104.99

860

Rear Frame | Includes 860 to 860a18

708305058

$349.99

860a8

Flat Washer 10 mm, Stainless

234002600

$2.22

860a16

Hexagonal Nut

233701400

$0.58

860a18

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

861

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

863

Rubber Protector

708400407

$14.99

864

Panel Nut M6 X 1.0

250100208

$1.46

865

LinQ Fastener

708303172

$19.99

866

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

1100

Rear Wheel Arch

708303061

$56.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1170

Striker

708303392

$4.39

1180

Hex. Flange Elastic Nut M6

233261494

$1.58

8010

Hex. Flange Screw M8 X 40

207684054

$2.11

8030

Tuflok Plastic Rivet

293150230

$1.47

8050

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
