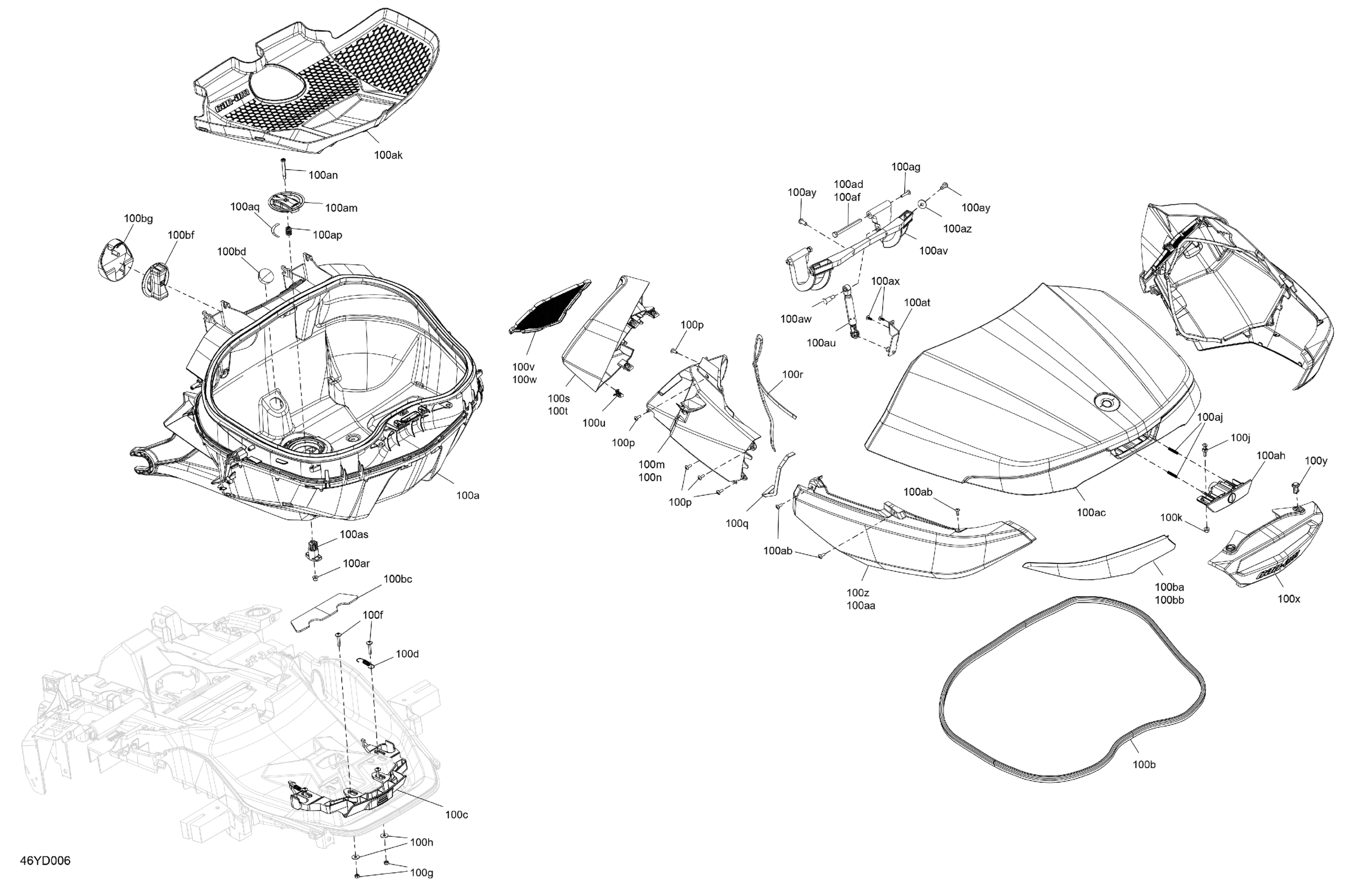

Can-Am RT LIMITED - Special Edition - G2RA - LIMITED - Vegas White Satin, 2024 Body - Top Cargo Box Diagram

Description

Price

100a

Central Bonded Storage Box

708304656

$439.99

100b

Trim

293250579

$15.99

100c

Latch

708303384

$14.99

100d

Tension Spring

705601862

$2.99

100f

Torx Screw M5 X 25

250000762

$2.11

100g

Hex. Nut M5

232051600

$1.15

100h

Flat Washer 5 mm, Stainless

234052600

$0.77

100j

Stud

518333307

$13.49

100k

Flange Elastic Nut M5

233251434

$2.00

100m

LH Speaker Enclosure

708302113

$19.99

100n

RH Speaker Enclosure

708302114

$19.99

100p

Torx Truss PT K40 x 12

250001131

$2.11

100q

Seal 1000Mm Long

219704373

$8.26

100r

Seal 1000Mm Long

219704373

$8.26

100s

LH Rear Speaker Trim

708302692

$45.49

100t

RH Rear Speaker Trim

708302693

$45.49

100u

Edge Clip

517302785

$0.88

100v

LH Speaker Grille

708302106

$4.44

100w

RH Speaker Grille

708302107

$4.44

100x

Light Support

708302152

$12.49

100y

Tuflok Plastic Rivet

293150230

$1.47

100z

Vegas White Satin, LH Rear Fairing

708304715

$244.99

100aa

Vegas White Satin, RH Rear Fairing

708304716

$244.99

100ab

Torx Truss PT K40 x 12

250001131

$2.11

100ac

Vegas White Satin, Rear Box Cover

708304714

$429.99

100ad

RH Hinge Pin

708303376

$14.22

100af

LH Hinge Pin

708303377

$14.22

100ag

Torx-Truss M/S M4 X 20

250000783

$2.11

100ah

Trunk Control Ass'y

708302100

$24.49

100aj

Spring

708302198

$2.09

100ak

Inner Trunk Soft Trim

708303064

$33.99

100am

LinQ Lock Knob

708303063

$9.69

100an

LinQ Lock Knob Screw

708303262

$2.64

100ap

Spring

708201081

$3.09

100aq

Lock Decal

704908164

Unavailable

100ar

Elastic Flange Nut M5

233251494

$2.11

100as

RH Latch

708201182

$12.58

100at

Shock Reinforcement

708303421

$61.99

100au

Shock Absorber

708303630

$76.99

100av

Lid Hinge

708303319

$69.99

100aw

Flange Screw M6 X 26

250000714

$3.91

100ax

Torx-Truss Screw K40 X 10

250001034

$0.98

100ay

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

100az

Flat washer M6

250200164

$1.01

100ba

LH Rear Box Trim

708303852

$4.49

100bb

RH Rear Box Trim

708303870

$4.49

100bc

Foam Support

708303982

$2.39

100bd

Black, Nylon Cap

414916600

$4.69

100bf

Tool Linq

529000146

$5.26

100bg

Linq Handle Support

708304121

$1.19
