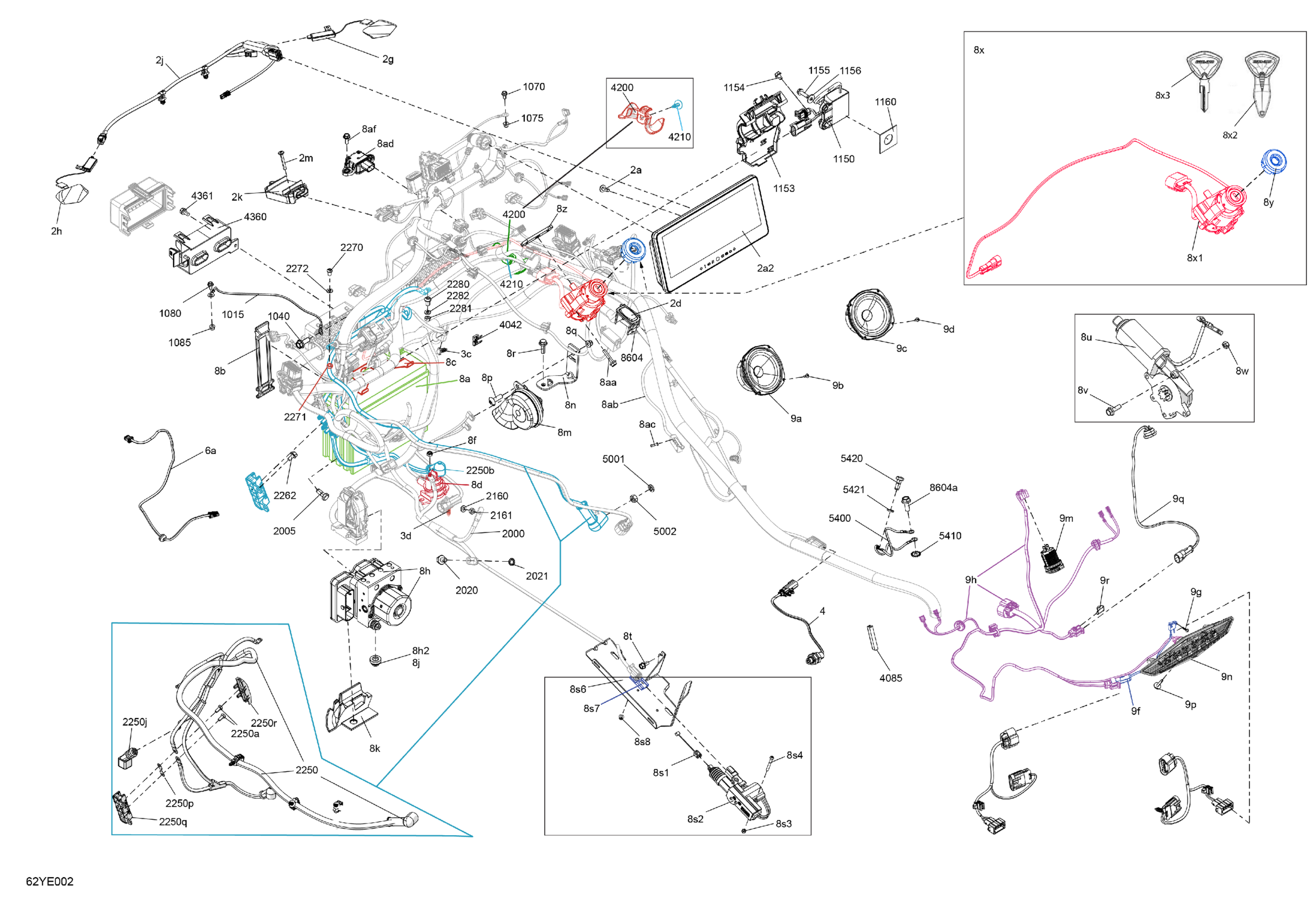

Can-Am RT LIMITED - Dark Edition - G1SA - Deep Marsala, 2025 Electric - System Diagram

#

Description
Price

2a

Torx Head Screw M6 X 16

250000717

$2.11

2a2

Multifunction Gauge 10

710010376

$2,039.99

2b

Windshield Switch

710007705

$41.49

2c

Heated Grip Switch | Not Shown

710008999

$41.49

2d

Switch Hole Cap

517306808

$14.49

2f

Heated Seat Switch

710007707

$43.49

2g

Fm2 Antenna

710010625

$121.99

2h

Fm2 Antenna

710010625

$121.99

2j

Phantom Box

710010432

$76.99

2k

External Module GPS

278004172

$189.99

2m

Torx Screw K50 X 35

250001111

$14.49

3&1

Flasher Bulb

219800304

$6.66

3a

Heated Grip Switch

710007706

$41.49

3b

Heated Seat Switch

710007707

$43.49

3c

Connector Holder

710002033

$3.39

3c1

Bulb 12V 10W

219800322

$8.68

3d

Connector Holder

710002033

$3.39

4

Brake Switch | Not Shown

710009604

$49.99

6a

Wiring Harness

710009557

$17.49

8a

Battery 12 Volt 21Ah | Includes 8a to 8a1

219800599

$179.96

8a1

Battery Bolt Kit | Not Shown

219800600

Unavailable

8b

Latch

520000528

$7.69

8c

Battery Support

710010843

$17.49

8d

Starter Relay

278003012

$42.49

8f

Hex. Elastic Stop Nut M6

232561600

$1.15

8g

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8h

Mod Vcm Wet Prog & Grommet Kit | Includes 8h to 8h2

219800536

$1,149.99

8h2

Shock Damper

710003279

$10.49

8j

Vibration Damper

710009090

$10.49

8k

VCM Harness Protector

710003996

$2.79

8m

Horn

710004940

$29.49

8n

Horn Support

710005769

$15.99

8p

Torx Truss M8 X 25

250000874

$2.11

8q

Hex. Flange Elastic Nut M8

233281414

$1.47

8r

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8s1

Reverse Cable

710002889

$31.99

8s2

Actuator

710011269

$64.99

8s3

Elastic Stop Nut M4

232541414

$0.58

8s4

Socket Head Screw M4 X 40

205444056

$2.11

8s5

Pop Rivet 5/32

390403000

$0.40

8s6

Actuator Support

710010657

$20.99

8s7

Clip

270000141

$11.49

8s8

Pop Rivet 3/16 X ,425

293150293

$0.35

8t

Hex. Flange Screw M6 X 12

210261250

$1.90

8u

Actuator Motor

710007256

$227.99

8v

Hex. Flange Screw M6 X 20

207662054

$1.01

8w

Elastic Stop Nut M6

232561434

$1.99

8x

Lock Kit | Includes 35b to 35b1

710009772

$296.99

8x1

Lock Kit | Includes 35b to 35b1

710009772

$296.99

8x2

Blank Ignition Key

710010282

$63.49

8x3

Blank Ignition Key

710010282

$63.49

8y

Switch Cover

710009167

$15.99

8z

Switch Support

710001365

$20.99

8aa

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

8ab

Brake Pressure Switch Ass'y

710001379

$43.49

8ac

Pop Rivet

293150150

$2.40

8ad

Yaw Rate Sensor

710005658

$179.99

8af

Hex. Flange Screw M6 X 16

210261650

$1.67

9a

4.5" Speaker

710005433

$35.99

9b

Torx Truss PT K40 x 12

250001131

$2.11

9c

4.5" Speaker

710005433

$35.99

9d

Torx Truss PT K40 x 12

250001131

$2.11

9f

Open Detection

710005315

$18.54

9g

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.56

9h

Upper Rear Box Wiring Harness

710008257

$53.99

9m

USB Outlet

219400510

$42.99

9n

Tail Light

520002710

$78.49

9p

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

9q

Trunk Light

710001533

$67.99

9r

Clip Bracket Connector (edge)

409210100

$2.09

1015

Antenna Ground Strap

710009889

$55.99

1040

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1070

Hex. Flange Screw M5 X 10

207551044

$4.12

1075

Flange Elastic Nut M5

233251434

$2.00

1080

Hex. Flange Screw M5 X 10

207551044

$4.12

1085

Flange Elastic Nut M5

233251434

$2.00

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Stainless Steel Flat Washer

234062670

$2.11

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$99.99

2250a

Hex. Screw M6 X 14

207161444

$0.58

2250b

Protector Cap

710000393

$9.59

2250j

Battery Guard

710002945

$12.99

2250p

Fuse 80 A

710008102

$15.87

2250q

Fuse Holder Support

710008098

$23.99

2250r

Fuse Holder Cover

710008154

$43.49

2262

Hex. Flange Screw M6 X 12

210261250

$1.90

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

4042

Lock

710001222

$2.09

4085

Trim 1000Mm Long

219704354

$15.99

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Tank Cable

710004849

$19.49

5410

Lock Washer Serrated M6

250200041

$1.15

5420

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5421

Washer

250200111

$2.11

8604

Connector Holder

710002033

$3.39

8604a

Hex. Flange Screw M8 X 20

207682046

$1.90
