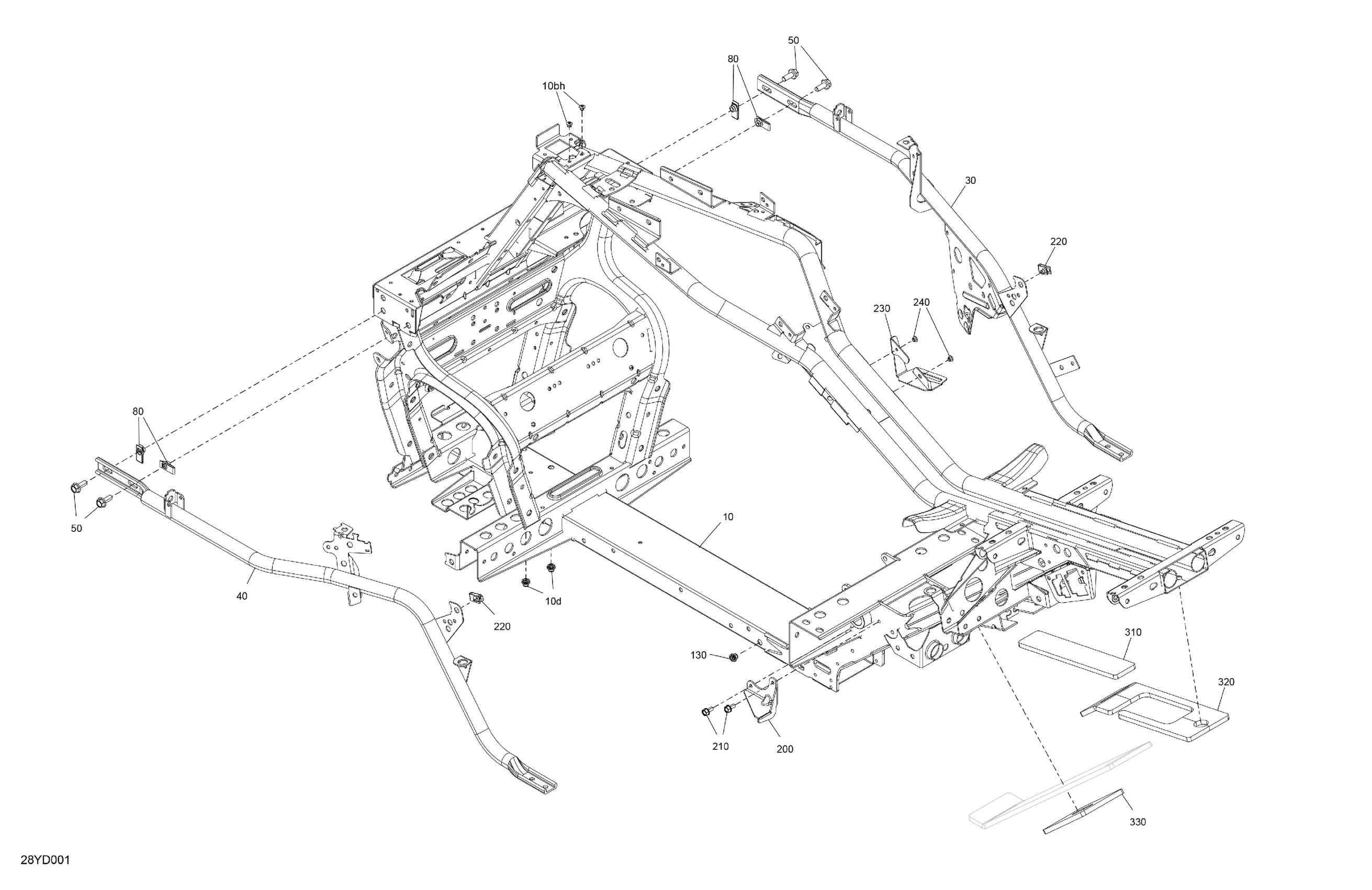

Can-Am RT - B2RA - STD - Petrol, 2024 Frame - System Diagram

Description

Price

Chassis | Includes 10 to 10bh

705212476

$1,050.00

10d

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10bh

Pop Rivet 3/16 X ,425

293150293

$0.26

RH Side Member

705211982

$205.00

LH Side Member

705207882

$205.00

Hex Screw Washer Head M8 X 20

207582054

$2.61

Panel Nut M8 X 1.25

250100118

$1.63

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

200

Stopper Swing Arm

705202587

$29.00

210

Hex. Flange Screw M6 X 12

210261250

$1.56

220

Panel Nut M6 X 1.0

250100198

$1.73

230

Latch Support

705208909

$17.00

240

Pop Rivet 3/16"

390402400

$0.25

310

Acoustic Insulation

293830213

$23.00

320

Acoustic Insulation

293830214

$19.00

330

Acoustic Insulation

293830215

$23.00
