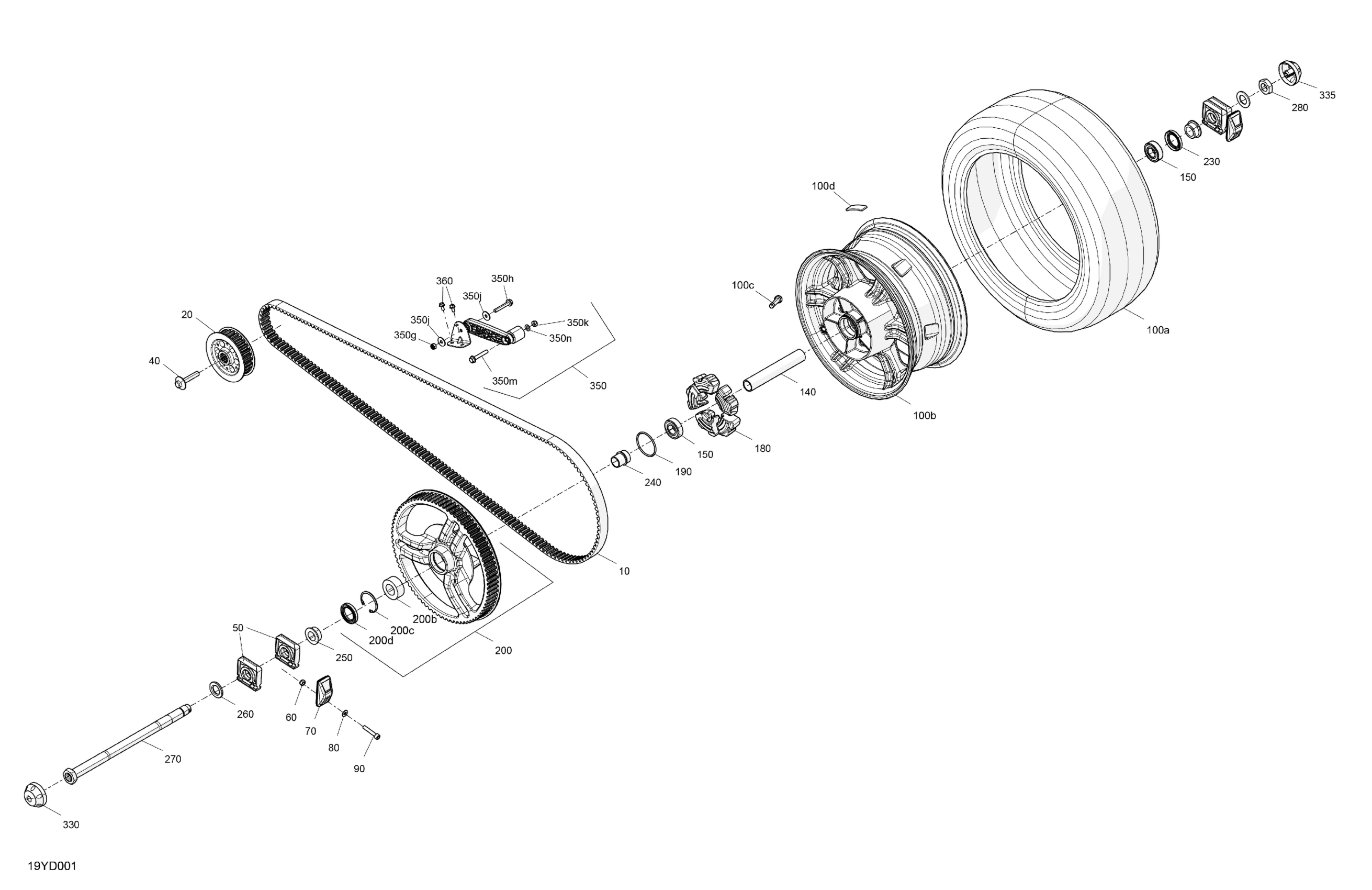

Can-Am RT - B2RA - STD - Petrol, 2024 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Drive Belt

705501304

$410.00

20

Sprocket 28 Teeth

705503239

$160.00

40

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.00

50

Sliding Block

705502448

$15.00

60

Hex. Elastic Nut M8

250100141

$2.00

70

Adjustment Support

705502450

$16.00

80

Flat Washer 8 mm

234081410

$0.69

90

Socket Screw DIN.912

250000713

$3.00

100a

Rear Tire 225/50R15

705503310

Unavailable

100b

Black, Rear Rim

705501992

$392.00

100c

Rim Valve With Cap

705400193

$6.69

100d

Balancing Weight

705503182

$5.00

140

Spacer Tube

705502093

$18.00

150

Ball Bearing

293350153

$11.15

180

Shock Absorber Bushing

705503473

$21.00

190

O-Ring

293300124

$3.00

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$500.00

200b

Double Bearing Ball

293350152

$31.00

200c

Circlip

293370053

$10.00

200d

Seal

293200094

$9.31

230

Seal

293200094

$9.31

240

Spacer

705500853

$23.00

250

Spacer

705501602

$19.00

260

Flat Washer

250200163

$3.40

270

Rear Wheel Axle

705501691

$99.00

280

Hex. Jam Nut M24

250100170

$12.00

330

LH Cap

705501081

$9.00

335

RH Cap

705501022

$9.00

350

Idler Pulley Kit RT | Includes 350 to 350n

705503503

$110.00

350g

Hex. Elastic Stop Nut M8

232581414

$0.47

350h

Hex. Flange Screw M8 X 50

207685044

$1.39

350j

Flat Washer 8 mm

234082410

$1.11

350k

Hex. Elastic Stop Nut M8

232581414

$0.47

350m

Hex. Flange Screw M8 X 50

207685044

$1.39

350n

Flat Washer 8 mm

234081410

$0.69

360

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56
