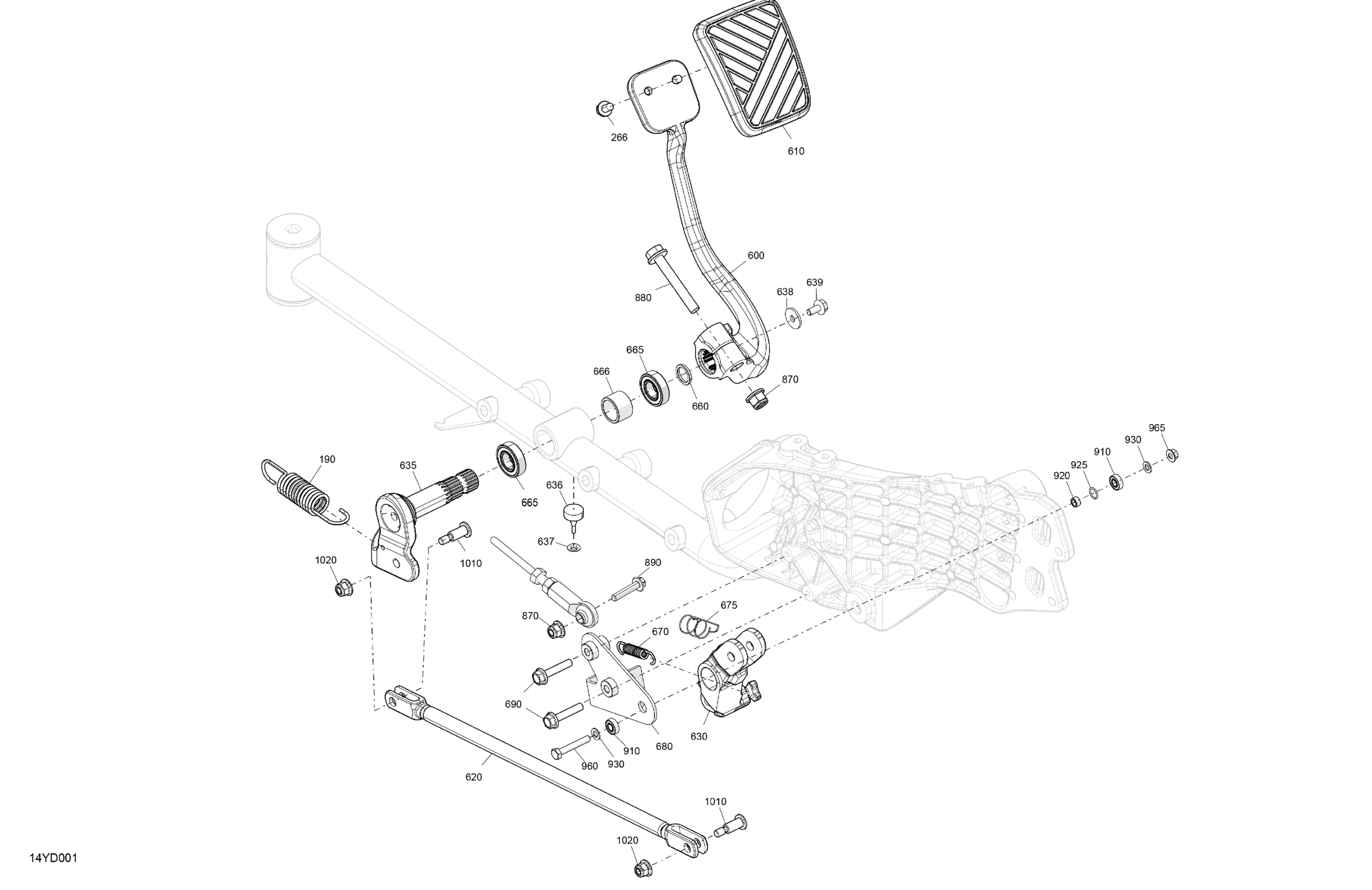

Can-Am RT - B2RA - STD - Petrol, 2024 Mechanic - Brake Pedal Diagram

Description

Price

190

Tension Spring

705503085

$4.00

266

Hex. Flange Screw M6 X 12

210261250

$1.90

600

Brake Pedal | Includes 600 to 600a

705602008

$64.99

610

Rubber Pad | Includes 610 to 610a

705014023

$20.99

620

Link Rod Assembly | Includes 620 to 620a2a

705601847

$25.99

630

Rocker | Includes 630 to 630a

705601994

$64.99

635

Rocker | Includes 635 to 635b

705601982

$56.99

636

Rubber Stopper

708003414

$4.12

637

Push Nut

250001189

$1.37

638

Flat Washer

224061201

$1.37

639

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

660

Spacer

705602010

$6.98

665

Ball Bearing

705602007

$12.99

666

Spacer

705602011

$18.54

670

Brake Switch Spring

705601584

$3.17

675

Compression Spring

705602204

$2.11

680

Axle Rocker | Includes 680 to 680c

705601968

$23.99

690

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

870

Elastic Flange Nut M8

233281466

$1.01

880

Hex. Flange Screw M8 X 55

207685554

$5.29

890

Hex Flange Screw M8 X 40

207684056

$1.47

910

Ball Bearing

705601974

$7.49

920

Spacer

705602003

$6.98

925

O-Ring

293300191

$1.46

930

Washer

503183800

$3.28

960

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

965

Hex. Flange Nut M10

233101414

$4.97

1010

Flange Screw M6 X 26

250000714

$3.91

1020

Hex. Flange Elastic Nut M6

233261466

$2.00
