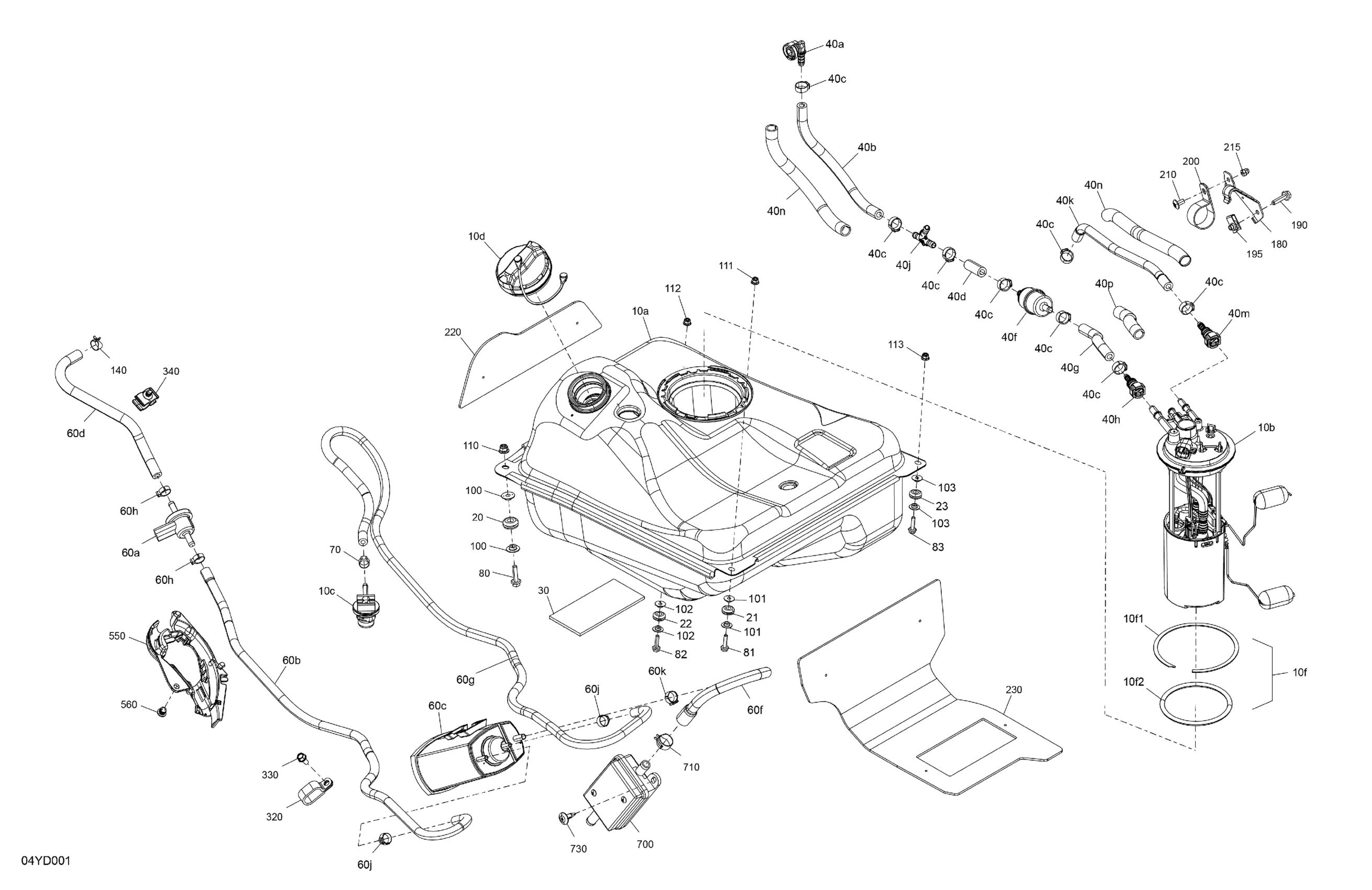

Can-Am RT - B2RA - STD - Petrol, 2024 Engine - Fuel Diagram

#

Description
Price

10a

Fuel Tank

709001447

$600.00

10b

Fuel Pump Module

709000370

$372.00

10c

Rollover Valve

709000413

$52.28

10d

Gaz Cap

709000683

$16.00

10f

Seal Kit

219800248

$39.00

10f1

Seal Kit

219800248

$39.00

10f2

Seal Kit

219800248

$39.00

20

Overmolded Grommet

293720130

$4.38

21

Overmolded Grommet

293720130

$4.38

22

Overmolded Grommet

293720130

$4.38

23

Overmolded Grommet

293720130

$4.38

30

Self Adhesive Insulating Pad

709001504

$14.00

40a

Elbow Fitting 90°

293710105

$10.58

40b

Fuel Line 7.9 mm, Meter

709000264

$16.00

40c

Oetiker Clamp

293650140

$2.15

40d

Fuel Line 7.9 mm, Meter

709000265

$13.00

40f

Fuel Filter

513034047

$20.89

40g

Fuel Line 7.9 mm, Meter

709000264

$16.00

40h

Quick Connect Pipe Fitting

293710193

$15.00

40j

Y Fitting

513034150

$6.02

40k

Formed Hose

709001199

$16.00

40m

Quick Connect Pipe Fitting

293710192

$12.00

40n

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40p

Tubing 16 Mm 1000Mm Long

219704408

$6.23

60a

Bleed Valve

709000443

$69.20

60b

Hose, 880MM

709000656

$32.00

60c

Vapor Canister

709000090

$87.66

60d

Hose, 275MM

709000657

$13.00

60f

Hose, 238MM

709001112

$29.00

60g

Hose, 1275MM

709000658

$30.00

60h

Crimp Clamp, 15.3-706R

293650047

$2.64

60j

Oetiker Gear Clamp

293650025

$2.46

60k

Oetiker Clamp

293650140

$2.15

70

Oetiker Gear Clamp

293650025

$2.46

80

Hex. Flange Screw M6 X 25

207662554

$1.48

81

Hex. Flange Screw M6 X 25

207662554

$1.48

82

Hex. Flange Screw M6 X 25

207662554

$1.48

83

Hex. Flange Screw M6 X 25

207662554

$1.48

100

Bushing

709001287

$3.00

101

Bushing

709001287

$3.00

102

Bushing

709001287

$3.00

103

Bushing

709001287

$3.00

110

Hex. Flange Elastic Nut M6

233261466

$1.66

111

Hex. Flange Elastic Nut M6

233261466

$1.66

112

Hex. Flange Elastic Nut M6

233261466

$1.66

113

Hex. Flange Elastic Nut M6

233261466

$1.66

140

Universal Spring Clamp

513033029

$5.11

180

Fuel Filter Support

709000452

$19.00

190

Hex. Flange Screw M6 X 25

207662554

$1.48

195

Panel Nut M6 X 1.0

250100198

$1.73

200

Open Clamp

513033047

$4.88

210

Torx Truss Screw M6 X 12

250000767

$1.66

215

Domed Hexagonal Nut Din.1587

232361453

$1.60

220

Heat Shield

709001374

$21.00

230

Heat Shield

709001375

$39.00

320

Open Clamp

709000057

$5.52

330

Hex. Flange Screw M6 X 12

210261250

$1.56

340

Hose Support

709000571

$4.60

550

Hose Support

709000814

$7.00

560

Panel Fastener

518321954

$6.03

700

Air Filter

709000524

$43.69

710

Spring Clamp

513033865

$4.00

730

Tuflock Phillips Plastic Screw

414745900

$1.30
