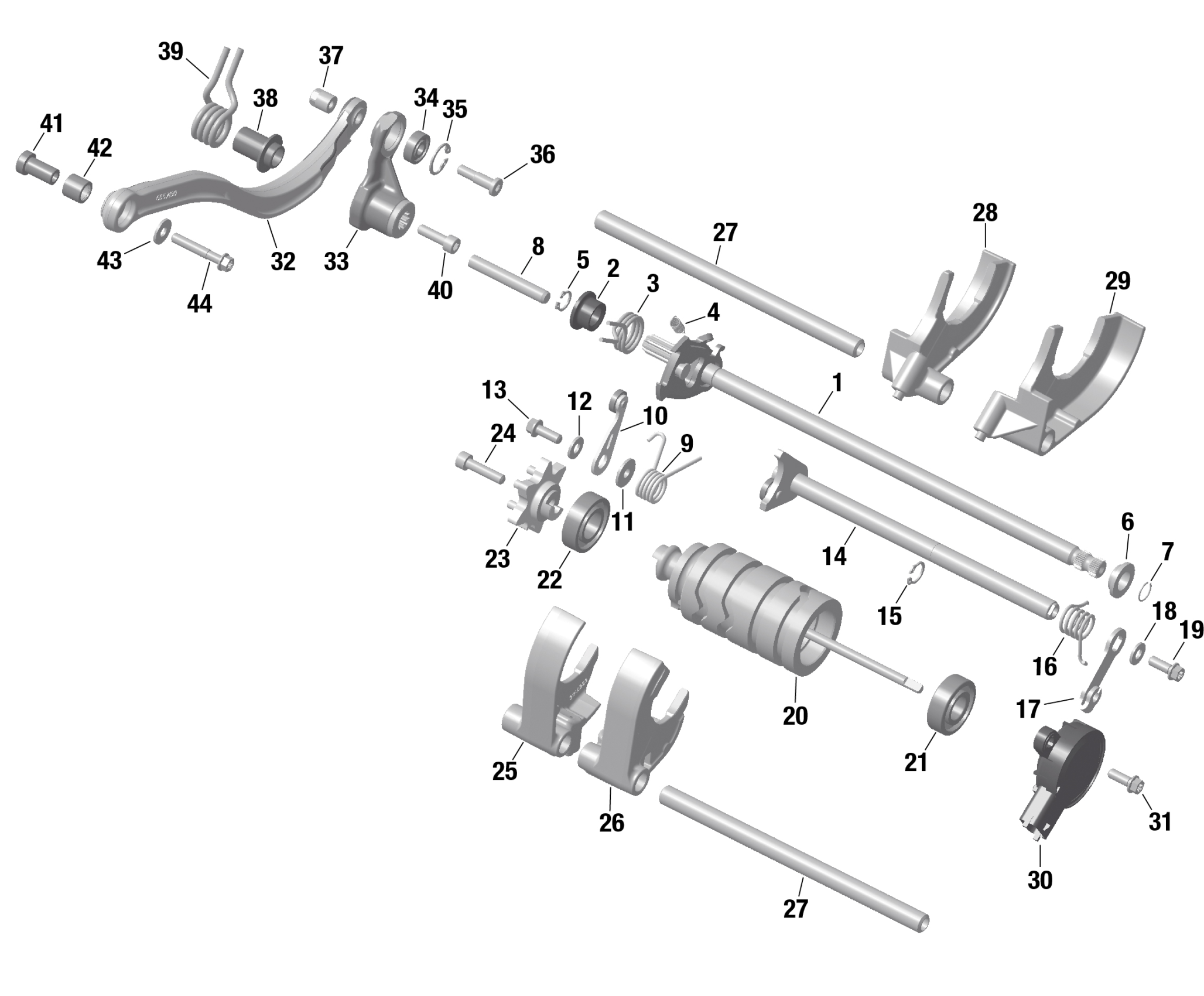

Can-Am RT - B2RA - STD - Petrol, 2024 ROTAX - Shifting Diagram

#

Description
Price

1

Shift Shaft | Includes 1 to 5

420637592

$99.00

2

Sleeve

420247948

$4.00

3

SPRING - Call your local BRP dealership

420239422

Unavailable

4

Spring

420239431

$8.00

5

Retaining Ring 11 X 1

420945060

$1.00

6

STEP RING - Call your local BRP dealership

420247662

$9.00

7

Snap Ring

420245440

$3.00

8

Pin 8, M6 X 55

420229384

$6.00

9

Index Spring

420239244

$8.00

10

Index Lever

420248489

$30.00

11

Step Ring

420227716

$12.00

12

Flat Washer

224061121

$0.44

13

Torx Flange Screw M6 X 16

420440164

$2.31

14

Gear Locking Shaft Ass'y | Includes 14 to 15

420637155

$50.00

15

Retaining Ring

420945470

$5.52

16

Spring

420838419

$8.00

17

Control Lever

420248275

$16.00

18

Flat Washer

224061121

$0.44

19

Torx Flange Screw M6 X 16

420440164

$2.31

20

Shift Drum

420657529

$174.00

21

Ball Bearing

420932290

$24.00

22

Ball Bearing

420232625

$21.00

23

Shim Index

420657174

$64.00

24

Allen Screw M8 X 40

420840688

$2.00

25

Shift Fork

420657148

$105.00

26

Shift Fork

420657572

$105.00

27

Fork Spindle

420657150

$44.00

28

Shift Fork

420657139

$105.00

29

Shift Fork

420657570

$44.00

30

ANGLE ROTATION SENSOR - Call your local BRP dealership

420265120

$205.00

31

Torx Flange Screw M6 X 16

420440164

$2.31

32

Shift Actuating Lever Ass'y | Includes 32a to 37

420657196

$200.00

33

Gear Shift Lever Ass'y | Includes 33 to 35

420657216

$70.00

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Fitting Bolt

420441790

$17.00

37

Hex. Nut M6

420242350

$13.00

38

Sleeve

420647223

$58.00

39

Spring

420638011

$29.00

40

Allen Screw M6 X 20

420241939

$0.68

41

Sleeve

420249181

$16.00

42

Needle Bushing

420232031

$16.00

43

Washer

420627400

$4.60

44

FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership

420440270

Unavailable
