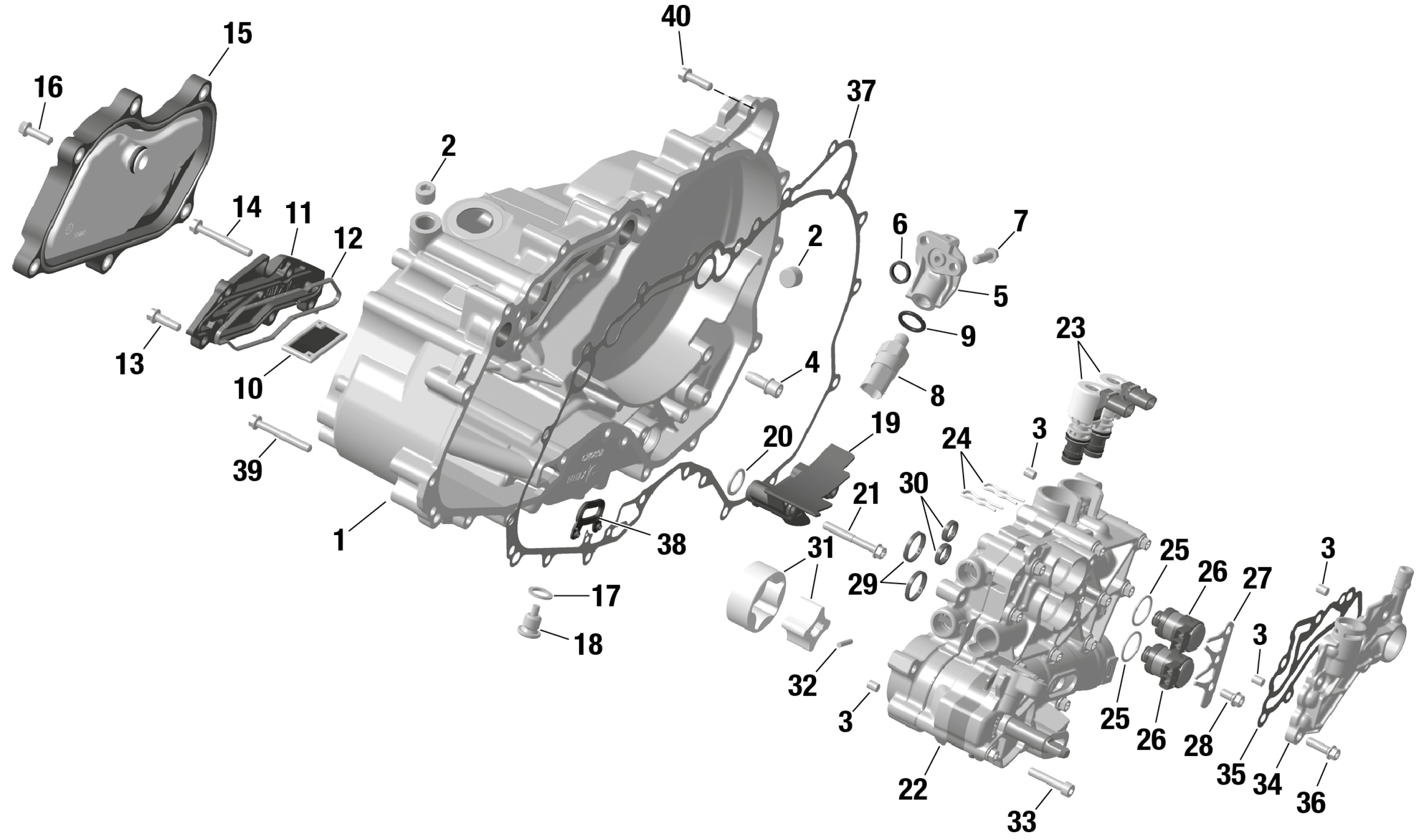

Can-Am RT - B2RA - STD - Petrol, 2024 ROTAX - Lubrication SE6 Diagram

#

Description
Price

1

Clutch Cover Ass'y | Includes 1 to 4

420212907

$487.00

2

Plug Screw M14 X 1.5

420641309

$12.91

3

Center Pin

420232210

$8.29

4

Torx Screw M8 X 18

420841732

$1.00

5

Pressure Sensor Housing

420212173

$74.00

6

Gasket

420450310

$2.00

7

Torx Flange Screw M6 X 20

420440207

$2.54

8

Oil Pressure Sensor

420264166

$320.00

9

O-Ring

420450350

$21.00

10

Oil Sieve

420656990

$13.00

11

Oil Duct Cover

420210870

$72.00

12

Gasket

420250630

$12.00

13

Torx Flange Screw M6 X 20

420440207

$2.54

14

Torx Flange Screw M6 X 45

420440324

$0.81

15

Oil Filter Cover

420211156

$138.00

16

Torx Flange Screw M6 X 20

420440207

$2.54

17

Copper Washer

420250640

$0.81

18

Magnetic Drain Plug M12 X 1.5

420241780

$17.66

19

Oil Guiding Plate

420224085

$19.00

20

O-Ring

420430220

$8.03

21

Torx Flange Screw M6 X 45

420440324

$0.81

22

Hydraulic Housing Ass'y

420210982

$2,565.00

23

Solenoid Valve 3/2

420264212

$240.00

24

Spring Clip

420939041

$7.00

25

Not Available As Spare Parts

XXX

Unavailable

26

Solenoid Valve Ass'y

420656792

$320.00

27

Retaining Plate

420651701

$14.00

28

Hex. Flange Screw M6 X 12

420440147

$1.97

29

Gasket

420450240

$2.00

30

Gasket

420450310

$2.00

31

Oil Pump Rotor

420456290

$74.00

32

Needle Pin

420232731

$1.56

33

Torx Flange Screw M6 X 30

420840888

$1.83

34

Valve Housing

420211124

$69.00

35

Gasket

420450290

$26.00

36

Torx Flange Screw M6 X 20

420440207

$2.54

37

Gasket Ass`y

420450032

$26.00

38

Not Available As Spare Parts

XXX

Unavailable

39

Torx Flange Screw M6 X 45

420440324

$0.81

40

Torx Flange Screw M6 X 20

420440207

$2.54
