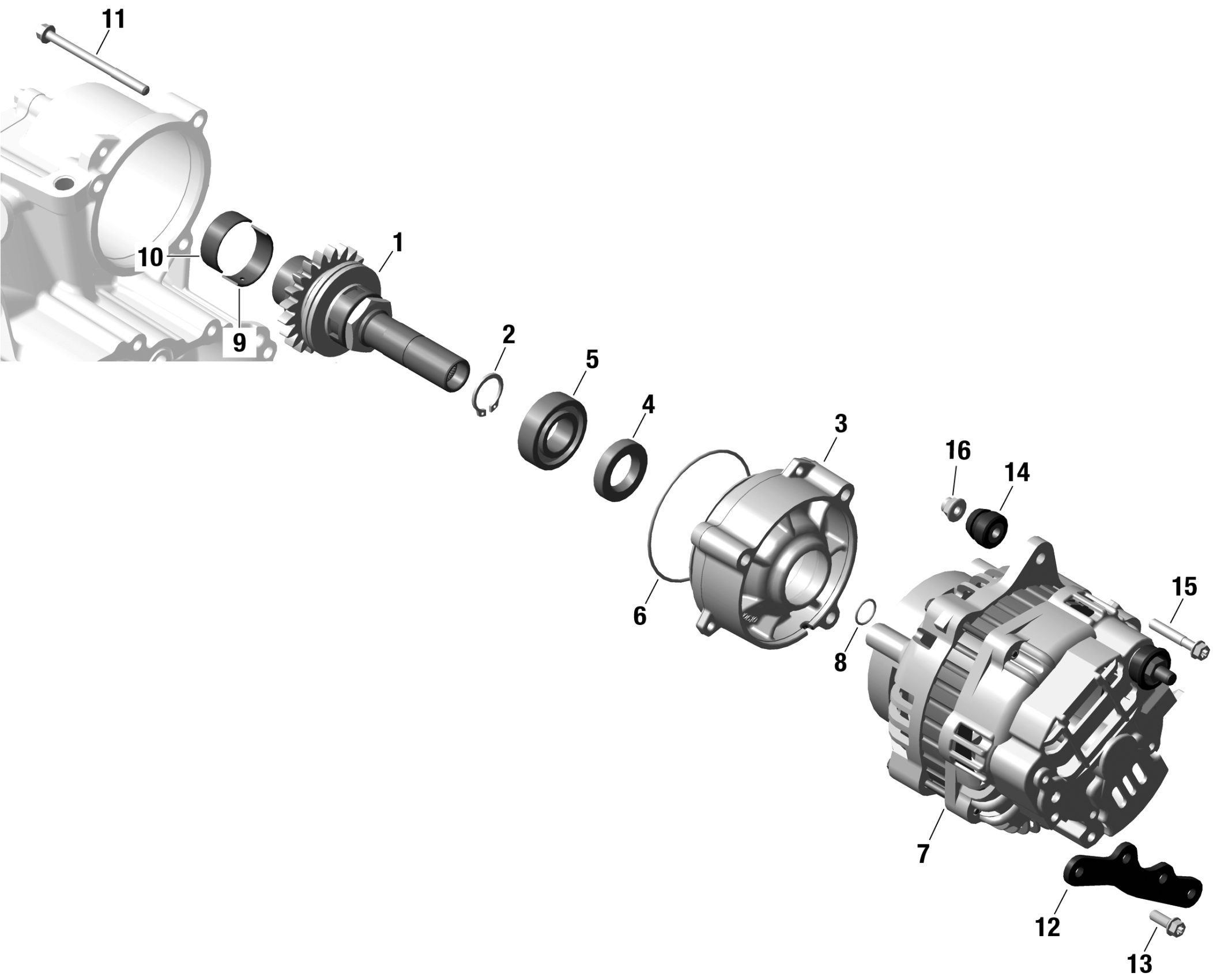

Can-Am RT - B2RA - STD - Petrol, 2024 ROTAX - Generator Diagram

#

Description
Price

1

Alternator Shaft Ass'y | Includes 1 to 10

420637124

$600.00

2

Retaining Ring

420945665

$5.00

3

Alternator Flange

420210610

$130.00

4

Oil Seal

420930267

$27.66

5

Ball Bearing

420932660

$26.00

6

O-Ring

420950490

$13.58

7

Alternator Ass'y | Includes 15 to 16

420685760

$680.00

8

O-Ring

420430603

$12.00

11a

Torx Flange Screw M6 X 75

420440657

$4.28

12

Alternator Support

420651710

$11.00

13

Torx Flange Screw M6 X 16

420440162

$3.11

14

Isolator

420201170

$16.00

15

Torx Flange Screw M6 X 35

420440274

$0.83

16

Lock Nut M6

420242371

$3.68
