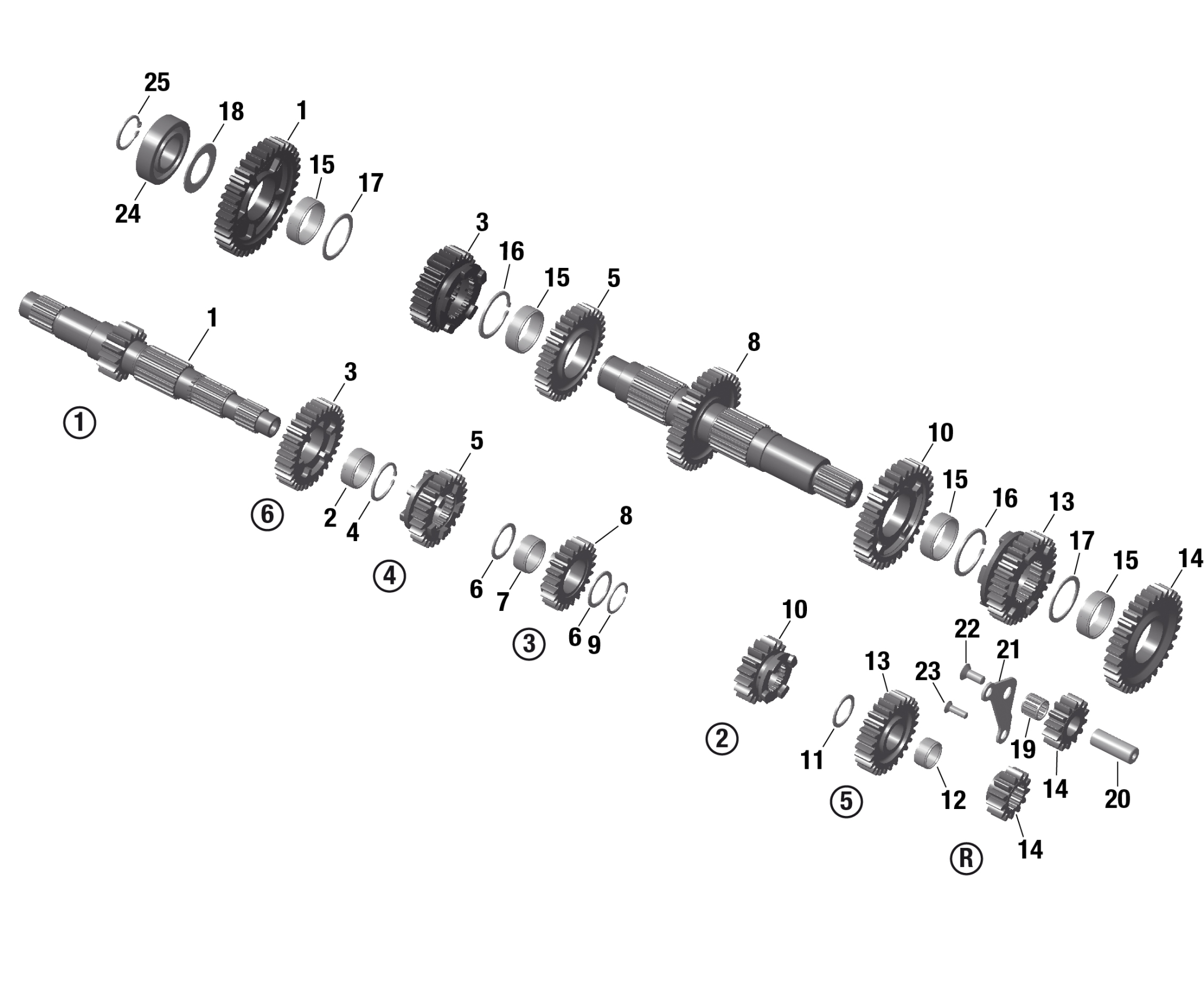

Can-Am RT - B2RA - STD - Petrol, 2024 ROTAX - GearBox Diagram

#

Description
Price

1

Clutch Shaft Kit | Speed (1)

420481150

$302.00

2

Needle Bearing

420432131

$32.00

3

Gear Set | Speed (6)

420481175

$145.00

4

Retaininig Ring 34 X 2

420245311

$9.00

5

Gear Set | Speed (4)

420481165

$145.00

6

Thrust Washer

420627294

$7.00

7

Needle Bearing

420932976

$27.00

8

Gear Set | Speed (3)

420481160

$350.00

9

Groove Ring

420245361

$9.00

10

Gear Set | Speed (2)

420481155

$185.00

11

Thrust Washer

420627298

$4.00

12

Needle Bearing

420232533

$30.00

13

Gear Set | Speed (5)

420481170

$145.00

14

Gear Set | Reverse (R)

420481140

$115.00

15

Needle Bearing

420632821

$57.00

16

Retaininig Ring 41.5 X 2

420245411

$15.00

17

Thrust Washer

420626831

$11.83

18

Thrust Washer

420626851

$7.00

19

Needle Cage

420432034

$34.58

20

Bolt

420249050

$21.00

21

Retaining Plate

420651620

$15.00

22

Flat Head Screw M8 X 20

420641407

$4.60

23

Screw M6 X 20

420941438

$3.00

24

Ball Bearing

420232782

$24.00

25

RETAININIG RING 30 X 2 - Call your local BRP dealership

420945619

$4.60
