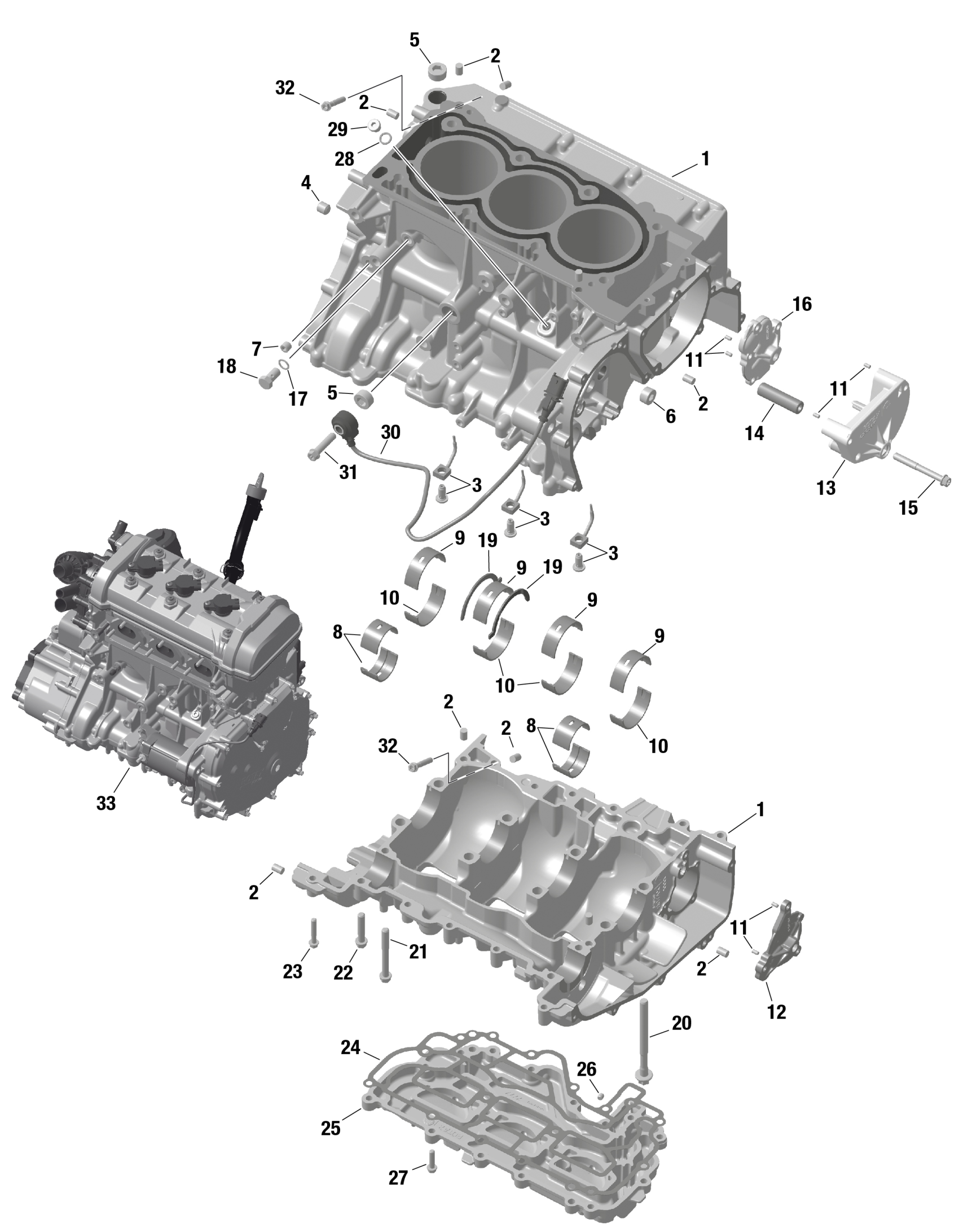

Can-Am RT - B2RA - STD - Petrol, 2024 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

420686424

$2,672.99

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spraying Jet

420656972

$25.49

4

Plug Screw M12x1,5

420840658

$7.51

5

Plug Screw M20 X 1.5

420641317

$14.22

6

Screw

420441051

$13.22

7

Plug Screw M10 X 1

420641323

$14.28

8

Plain Bearing

420933858

$27.49

9

Plain Bearing

420233848

$28.49

10

Plain Bearing

420233846

$28.49

11

Needle Pin

420929075

$2.11

12

Oil Pump Cover

420210260

$33.99

13

Bearing Bracket

420210868

$51.99

14

Intermediate Gear Shaft

420249011

$50.99

15

Torx Flange Screw M8 X 65

420440403

$2.19

16

Oil Pump Cover

420210220

$33.99

17

Oil Seal

420230150

$2.85

18

Bleeder Screw M10 X 1

420241073

$14.83

19

Half-Ring

420933475

$11.63

20

Torx Flange Screw M9 X 113

420940945

$13.70

21

Socket Head Screw M8 X 70

420441086

$4.65

22

Allen Screw M8 X 40

420440486

$5.40

23

Torx Flange Screw M6 X 35

420440274

$1.01

24

Gasket

420250610

$15.89

25

Oil Sump

420611740

$163.99

26

Plug Screw M8 x 1

420941614

$6.98

27

Torx Flange Screw M6 X 25

420440234

$3.06

28

Oil Seal

420230150

$2.85

29

Plug Screw M10 X 1

420641733

$12.72

30

Noise Sensor

420664031

$63.99

31

Torx Flange Screw M8 X 35

420641188

$7.41

32

FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership

420440270

Unavailable

33

Engine

420014032

$12,720.00
