Description

Price

10

Center Hood

517308030

$69.99

40

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

70

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

75

Rivet Plate

517305109

$4.99

100

Mineral Blue, RH Front Hood

517309600

$214.99

110

Screw M4 X 16

250000725

$3.49

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$4.23

150

Mineral Blue, LH Front Hood

517309601

$214.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

175

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$4.23

200

Rear Console

517308760

$179.99

210

Hex. Flange Elastic Nut M5

233251414

$1.04

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

Gasket

517309450

$1.01

260

Joint

517309451

$2.49

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517309793

$31.99

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

450

Rear Short Console

517309348

$144.99

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307750

$38.99

610

Gauge Support

515179034

$6.69

620

Screw M4 X 16

250000889

$3.09

640

Screw M4 X 16

250000725

$3.49

700

Access Cover

517308427

$9.09

800a

Windshield 400 MM

517309001

$159.49

800b

Windshield Support

517307973

$24.99

800c

Plastite Screw M4 X 10

250000805

$2.11

810

Grommet

517303756

$4.09

1450

Molded Gasket

517308963

$5.49

2400

Headlight Ass'y

517309061

$569.99

2810

Grommet

517303756

$4.09

3010

Grommet

517303756

$4.09

3100

Air Deflector Kit | Includes 3100 to 3100d

517309220

$35.99

3100c

LH Stopper

517308990

$8.09

3100d

RH Stopper

517308989

$8.09

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3210

Box Cap

517308260

$13.49

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308377

$67.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3880

Panel Nut M5 X 0.8

250000958

$4.23

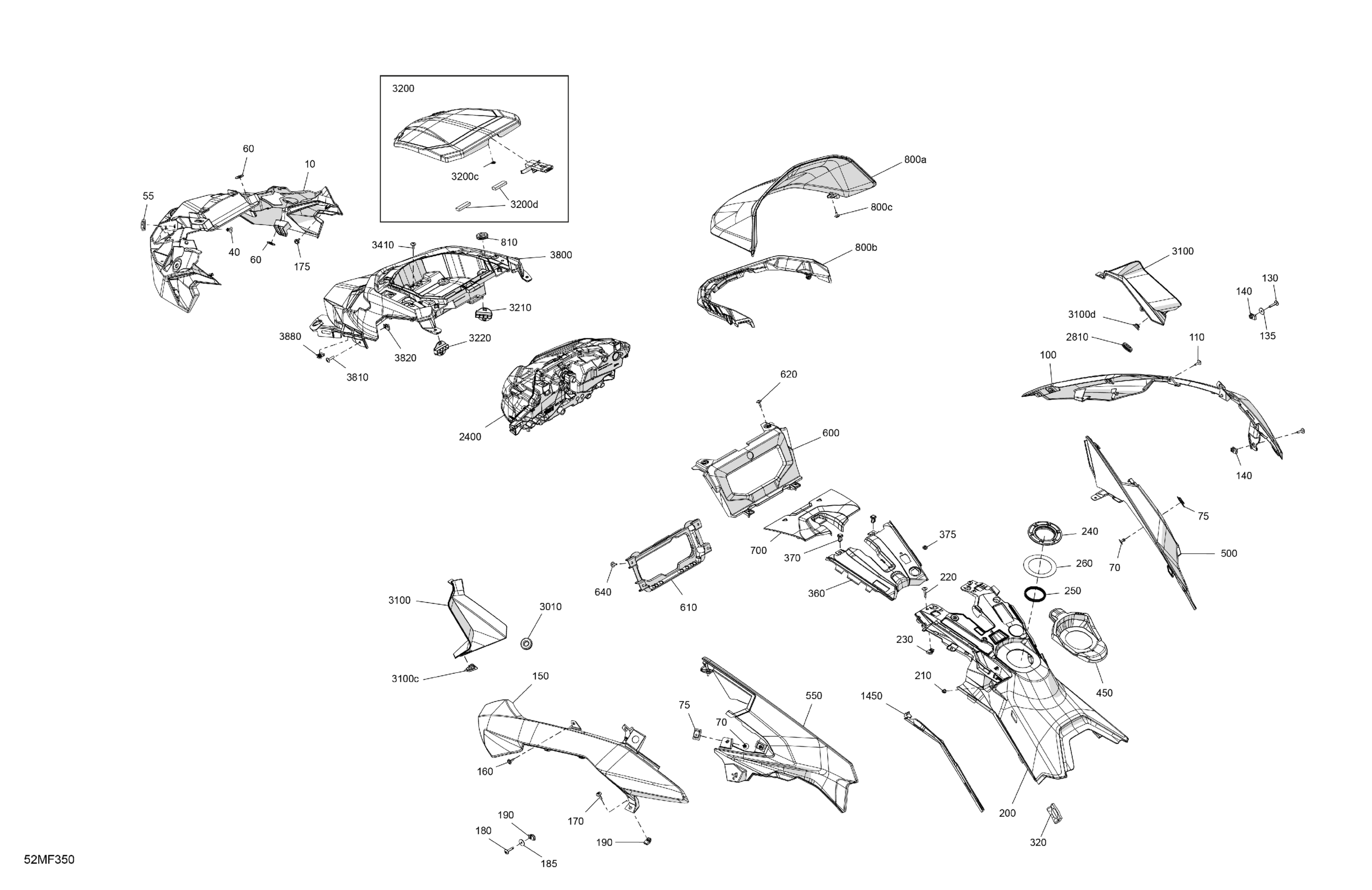

Ski-Doo RENEGADE - X-RS - 900 ACE TURBO R - DATP - Mineral Blue - 15X137X1.25RS Track, 2026 Body - Hood Diagram

Center Hood

Black, Pop Rivet 3/16 X ,550

Rivet Plate

Push Nut

Black, Pop Rivet 3/16 X ,550

Rivet Plate

Mineral Blue, RH Front Hood

Screw M4 X 16

Torx Screw M5 X 26

Washer

Panel Nut M5 X 0.8

Mineral Blue, LH Front Hood

Screw M4 X 16

Torx Screw M5 X 20

Screw M4 X 16

Torx Screw M5 X 26

Washer

Panel Nut M5 X 0.8

Rear Console

Hex. Flange Elastic Nut M5

Torx Screw M5 X 26

Panel Nut M5 X 0.8

Round Slotted Nut

Gasket

Joint

Self Adhesive Weather Strip

Front Console

Tuflok Plastic Rivet

Push Nut

Rear Short Console

RH Hood

LH Hood

Gauge Support

Gauge Support

Screw M4 X 16

Screw M4 X 16

Access Cover

Windshield 400 MM

Windshield Support

Plastite Screw M4 X 10

Grommet

Molded Gasket

Headlight Ass'y

Grommet

Grommet

Air Deflector Kit | Includes 3100 to 3100d

LH Stopper

RH Stopper

Box Cover Ass'y | Includes 3200 to 3200d

Push Nut

Joint Seal

Box Cap

Box Cap

Screw M4 X 16

Upper Fairing

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
