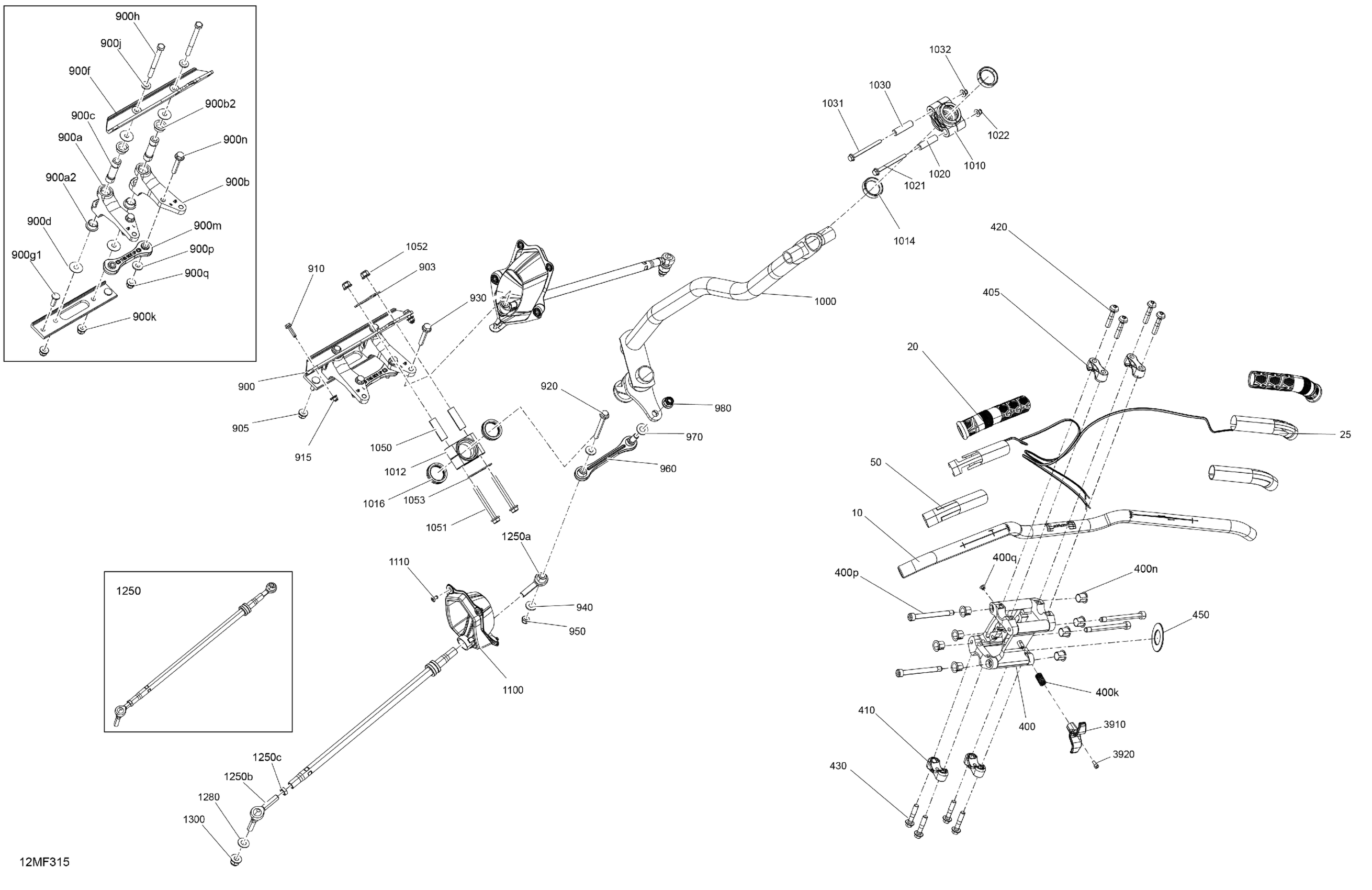

Ski-Doo RENEGADE - X-RS - 900 ACE TURBO R - DATB - Deep Black - 15X137X1.5IR Track, 2026 Mechanic - Steering Diagram

#

Description
Price

10

Black, Handle Bar

506153209

$98.49

20

Grip 148mm

506152560

$16.88

25

Heated Film

506152856

$48.99

50

Thermal Insulation

506153176

$6.09

400

Handlebar Adjustable Riser Block | Includes 400 to 400q

506153192

$137.49

400k

Spring

506152820

$9.09

400n

Cushion

506152520

$15.72

400p

Socket Head Screw M8 X 85

205588554

$1.25

400q

Pop Rivet 3/16"

390402200

$0.35

405

Steering Support

506152894

$14.49

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

450

Washer

506152992

$1.35

900

Steering Arm Ass'y | Includes 900 to 900q

506153366

$239.99

900a

LH Swivel Arm Ass. | Includes 900a to 900a2

506153197

$42.99

900a2

Bushing

503194671

$7.13

900b

RH Swivel Arm | Includes 900b to 900b2

506152790

$42.99

900b2

Bushing

503194671

$7.13

900c

Swivel Pivot

506152792

$28.99

900d

Washer

503191800

$2.11

900f

Steering Support

506153198

$12.99

900g1

Clinch Stud

250300038

$4.29

900h

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900j

Washer

503192494

$3.17

900k

Elastic Flange Nut M8

233281466

$1.01

900m

Ball Joint

506152755

$51.99

900n

Hex. Flange Screw M6 X 45

250001028

$1.26

900p

Washer

506151245

$0.93

900q

Elastic Flange Nut M8

233281466

$1.01

903

Steering Stopper

506153157

$5.99

905

Hex. Elastic Flange Nut M8

233281416

$1.48

910

Hex. Flange Screw M6 X 25

207662544

$0.64

915

Elastic Flange Nut M6 X 1.0

233261416

$2.11

920

Hex. Flange Screw M8 X 70

207687044

$7.41

930

Hex. Flange Screw M8 X 50

207685044

$1.69

940

Washer

506151245

$0.93

950

Hex. Elastic Flange Nut M8

233281416

$1.48

960

Ball Joint

506152753

$54.99

970

Washer

506152582

$4.55

980

Hex. Flange Elastic Nut M10

250100246

$3.17

1000

Tube Main

506152969

$264.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152937

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1250

Rod Ass'y | Includes 1250 to 1250c

506153056

$80.49

1250a

LH Threaded Ball Joint

506152344

$41.49

1250b

RH Threaded Ball Joint

506152684

$44.49

1250c

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

3910

Handle

506152821

$3.17

3920

Socket Head Screw M4X 10

205041060

$2.11
