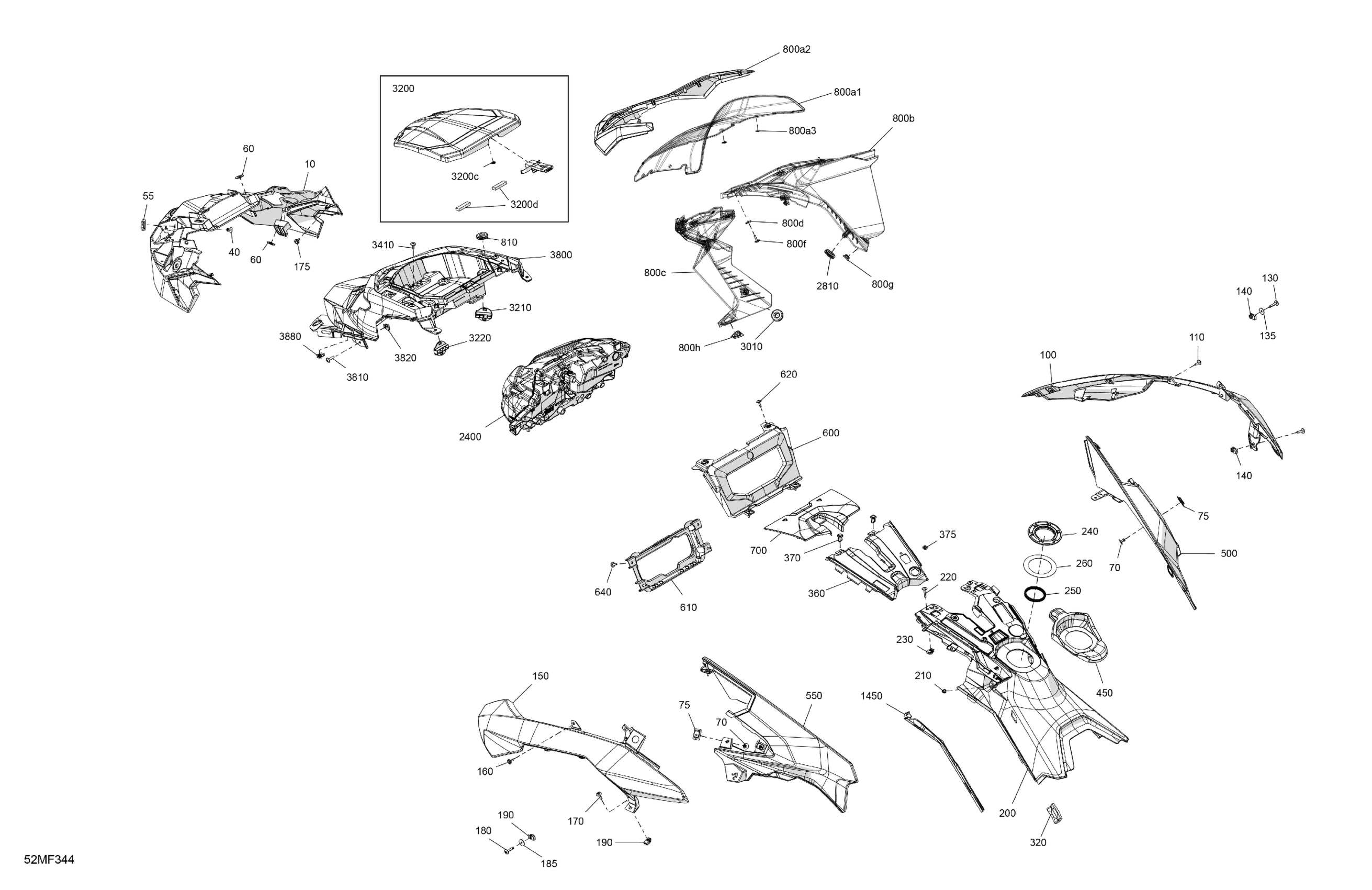

Ski-Doo North America - RENEGADE - X - 900 ACE TURBO R - BSTA - Deep Black - 15X137X1.5IR Track, 2026 07- Body - Hood Diagram

Description

Price

Center Hood

517308030

$69.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Rivet Plate

517305109

$4.99

Push Nut

508000853

$2.09

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Rivet Plate

517305109

$4.99

100

Rh Front Hood

517308414

$214.99

110

Screw M4 X 16

250000725

$3.49

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$4.23

150

Lh Front Hood

517308415

$214.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

175

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$4.23

200

Rear Console

517308760

$179.99

210

Hex. Flange Elastic Nut M5

233251414

$1.04

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

Gasket

517309450

$1.01

260

Joint

517309451

$2.49

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517309793

$31.99

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

450

Rear Short Console

517309348

$144.99

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307750

$38.99

610

Gauge Support

515179034

$6.69

620

Screw M4 X 16

250000889

$3.09

640

Screw M4 X 16

250000725

$3.49

700

Access Cover

517308427

$9.09

800a1

Windshield 440 MM

517307976

$159.49

800a2

Windshield Support

517307974

$39.99

800a3

Push Nut

732610072

$2.19

800b

RH Air Deflector

517307971

$32.99

800c

LH Air Deflector

517307972

$32.99

800d

Rubber Washer 4 MM

517306524

$2.32

800f

Screw M4 X 16

250000889

$3.09

800g

RH Stopper

517308989

$8.09

800h

LH Stopper

517308990

$8.09

810

Grommet

517303756

$4.09

1450

Molded Gasket

517308963

$5.49

2400

Headlight Ass'y

517309061

$569.99

2810

Grommet

517303756

$4.09

3010

Grommet

517303756

$4.09

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3210

Box Cap

517308260

$13.49

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308377

$67.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3880

Panel Nut M5 X 0.8

250000958

$4.23
