Description

Price

10

Deep Black, Chain Case Ass'y | Includes 10 to 10b

504154292

$96.99

10b

Dowel Pin

250400068

$2.11

20

Socket Head Screw M6 X 18

250001213

$8.11

70

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

140

Sprocket 25 Teeth Ass'y

504154084

$104.99

150

Adapter Ass'y | Includes 150 to 150d

504154893

$65.49

150b

Ball Bearing

293350142

$34.99

150c

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

150c2

Cap

504154043

$2.11

150d

O-Ring Seal

293300291

$1.01

200

Connecting Shaft Ass'y

504153500

$132.49

210

External Retaining Ring

293370183

$3.79

220

Spring Release

504153179

$11.49

230

Sliding Gear 27 Teeth Machined

504153502

$109.99

260

Washer

504152689

$7.65

270

Circlip

293370055

$8.11

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

500

Axle Reverse Ass'y | Includes 500 to 500b

504153519

$35.99

500b

Rolled Pin M3 X 10

250400010

$1.90

510

Ring

504078700

$20.99

520

Sprocket 19 Teeth Ass'y

504154086

$88.99

530

Alignement Rod

570048600

$15.99

550

Gear Straight 29 Teeth Ass'y

504154087

$105.99

560

Spacer

504077300

$6.95

1100

Oil Seal

293200159

$16.25

1120

Circlip

504152582

$9.99

1130

Sprocket 45 Teeth

504153995

$149.99

1140

Circlip

504152572

$6.95

1500

Drive Chain, 108 Links

504152631

$153.49

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Magnetic Plug

504153704

$5.19

1550

O-Ring

293300202

$1.01

1600

Chain Tensioner

504154577

$17.49

1610

Slider Chain

504153312

$65.99

1640

Copper Washer

250200185

$1.46

1650

Circlip

293370105

$2.11

1660

Slide Chain

504153531

$17.49

1670

Torx Head Screw M6 X 16

250000717

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504155076

$189.99

1700d

Clip Connector

515178223

$2.09

1700f

Braided Sleeve

415130141

$55.99

1710

O Ring

293300214

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740a

Plug

504154839

$6.19

1740b

Straight Pipe Fitting

293710180

$9.19

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1740d

Heat Shield

515179201

$3.49

1740f

Protector Tube | Not shown

503195447

$13.49

1770

Hex. Countersunk Drain Plug

250500013

$7.89

1800

Fork Ass'y

504154097

$33.99

1810

O-Ring

293300202

$1.01

1820

Reverse Axle

504154096

$19.49

1830

Spring Pin M5 X 16

250400045

$4.55

1860

Machined Lever

504153532

$29.99

1880

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

1890

Actuating Rod Ass'y

504154956

$40.99

1900

Rod Actuating Ass'y

504153944

$15.99

1920

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

1925

Hex. Flange Screw M6 X 25

207562544

$1.69

1940

Reverse Lever

504153524

$29.99

1960

Socket Head Screw M6 X 40, S.GRIP

205564044

$2.11

1970

Hex. Flange Screw M6 X 25

207562544

$1.69

1980

Washer

504082900

$2.64

1990

Hex. Screw M8 X 90

207089044

$3.48

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2070

Hex. Flange Screw M6 X 25

207562544

$1.69

2090

Handle Support

504153683

$21.99

2110

Spacer

504153648

$3.49

2120

Bushing

504153735

$0.55

2130

Hex. Flange Screw M6 X 25

207562544

$1.69

2180

Bushing

504153735

$0.55

2190

Spacer

504153648

$3.49

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500b

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000g

504154544

$412.99

3000b

Not Available As Spare Parts

XXX

Unavailable

3000c

Not Available As Spare Parts

XXX

Unavailable

3000d

Retaining Ring

504154417

$21.99

3000f

Ball Bearing

293350059

$30.99

3000g

O-Ring Seal

293300291

$1.01

3200

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154377

$899.99

3200a

Clip

415130661

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64

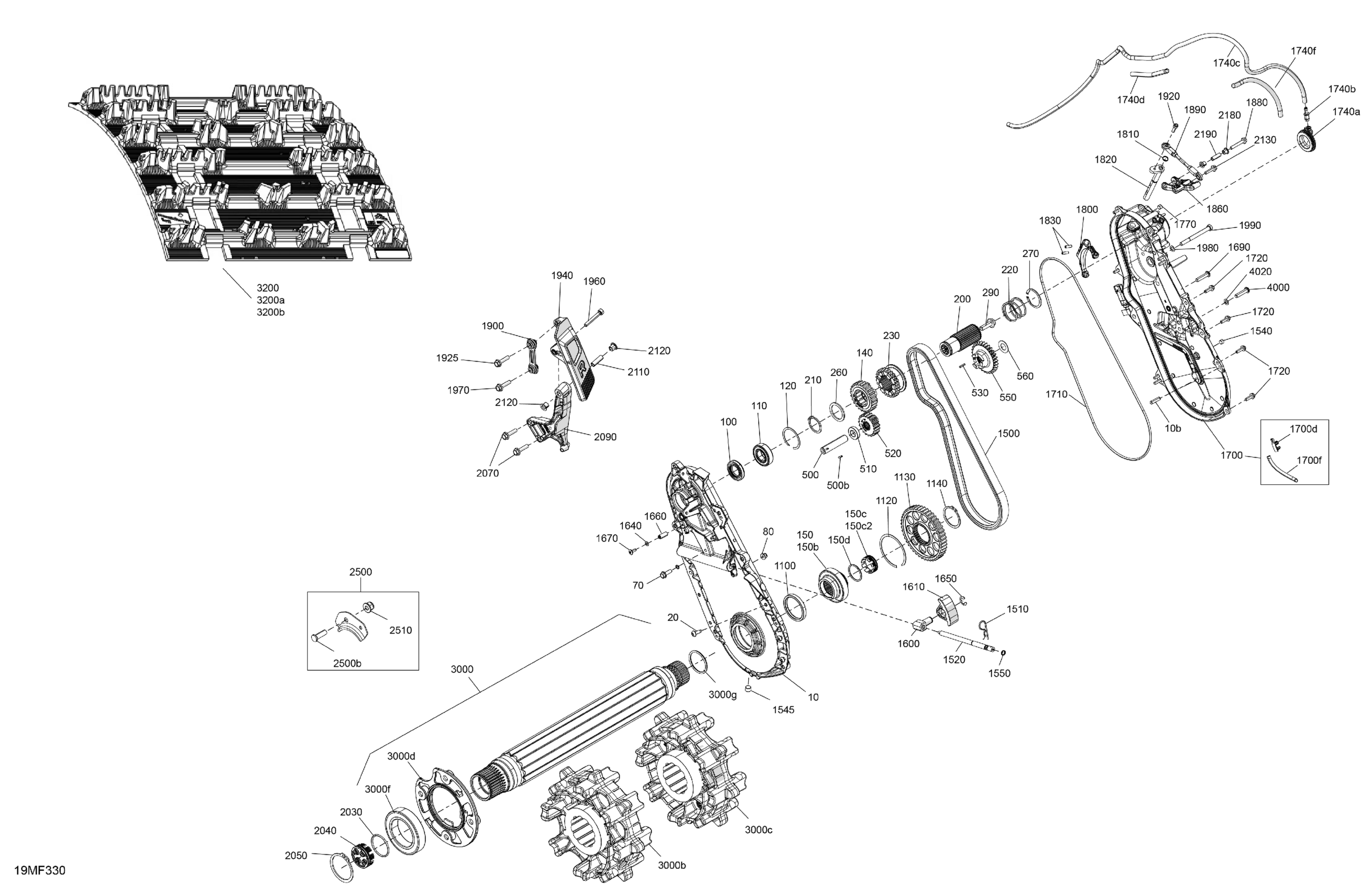

Ski-Doo North America - RENEGADE - Adrenaline - 900 ACE TURBO - DUTA - Deep Black - 15X137X1.25RS Track, 2026 04- Drive - System Diagram

Deep Black, Chain Case Ass'y | Includes 10 to 10b

Dowel Pin

Socket Head Screw M6 X 18

Hex Flange Screw M8 X 25 S.Grip

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Sprocket 25 Teeth Ass'y

Adapter Ass'y | Includes 150 to 150d

Ball Bearing

Magnetic Cap | Includes 150c to 150c2

Cap

O-Ring Seal

Connecting Shaft Ass'y

External Retaining Ring

Spring Release

Sliding Gear 27 Teeth Machined

Washer

Circlip

Hex. Flange Screw M10 X 30, Scotch Grip

Axle Reverse Ass'y | Includes 500 to 500b

Rolled Pin M3 X 10

Ring

Sprocket 19 Teeth Ass'y

Alignement Rod

Gear Straight 29 Teeth Ass'y

Spacer

Oil Seal

Circlip

Sprocket 45 Teeth

Circlip

Drive Chain, 108 Links

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Magnetic Plug

O-Ring

Chain Tensioner

Slider Chain

Copper Washer

Circlip

Slide Chain

Torx Head Screw M6 X 16

Hex. Button Head Screw M8 X 1.25 X 35

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

Clip Connector

Braided Sleeve

O Ring

Hex. Flange Screw M6X20

Plug

Straight Pipe Fitting

Polyurethane Hose 10000Mm Long

Heat Shield

Protector Tube | Not shown

Hex. Countersunk Drain Plug

Fork Ass'y

O-Ring

Reverse Axle

Spring Pin M5 X 16

Machined Lever

Hex. Flange Screw M6 X 40, Scotch Grip

Actuating Rod Ass'y

Rod Actuating Ass'y

Socket Head Screw M6 X 20, Scotch Grip

Hex. Flange Screw M6 X 25

Reverse Lever

Socket Head Screw M6 X 40, S.GRIP

Hex. Flange Screw M6 X 25

Washer

Hex. Screw M8 X 90

O-Ring

Cap

Circlip

Hex. Flange Screw M6 X 25

Handle Support

Spacer

Bushing

Hex. Flange Screw M6 X 25
