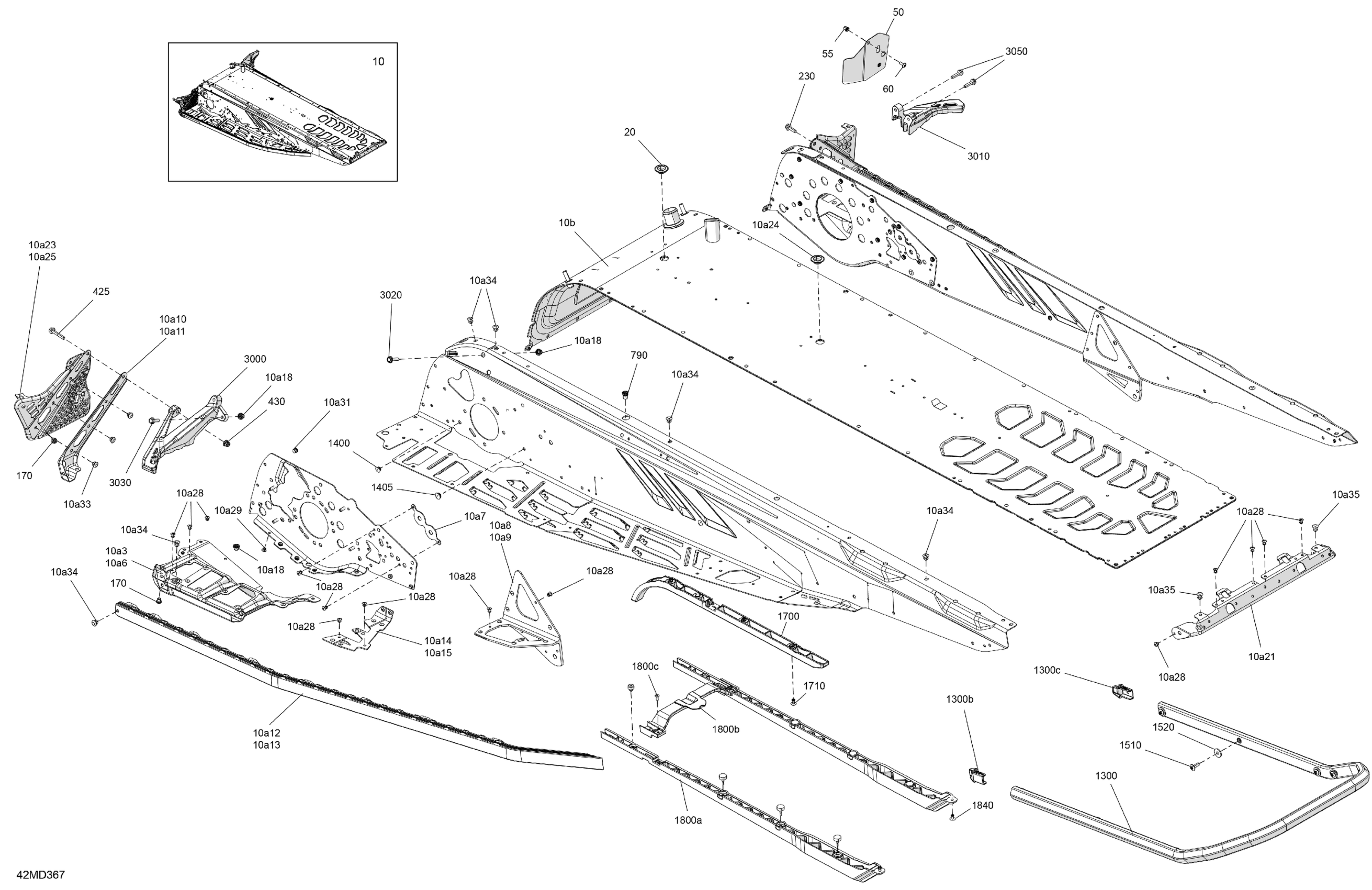

Ski-Doo RENEGADE 900 ACE Turbo - X - DXRB - Neo Yellow - 137X15X1.25IR Track, 2024 Frame - System - Rear Section Diagram

#

Description
Price

10

Neo Yellow, Chassis Tunnel Module 137 | Includes 10 to 10b

415130703

$2,911.16

10a3

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10a6

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10a7

Front Suspension Arm Reinforcement

518327233

$15.64

10a8

RH Rear Suspension Support This part replaces 518334389.

518334389

$41.76

10a9

LH Rear Suspension Support

518334413

$41.76

10a10

Stirrup Reinforcement

518334507

$17.88

10a11

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10a12

RH Roller

518328451

$175.34

10a13

LH Roller

518328452

$175.34

10a14

LH Footrest Reinforcement

518332296

$17.88

10a15

RH Footrest Reinforcement

518332297

$17.88

10a18

Threaded Insert M6 X 1.0

250100242

Unavailable

10a21

Rear Cap

518328990

$20.12

10a23

RH Footrest

518334509

$20.12

10a24

Black, Plug

293730052

$6.18

10a25

LH Foot Protector

518334305

$23.10

10a28

Rivet Avibulb 3/16

293150203

$0.28

10a29

Avibulb Rivet 4.8 X 12.1

293150237

$0.28

10a31

Henrob Rivet

293150245

$1.60

10a33

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10a34

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10a35

Rivet Ornit 6,5 X 16.5

293150267

$1.88

10a36

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10b

Radiator Tunnel 137 Ass'y

518334488

$682.06

20

Black, Plug

293730052

$6.18

50

Heat Shield

518331823

$7.19

55

Insert

293450275

$11.36

60

Torx Head Screw M6 X 16

250000717

$2.00

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

790

Insert

293450278

$3.97

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1400

Black, Dart 8 mm

293730047

$2.07

1405

Black, Dart 10 mm

293730060

$4.28

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

1800a

Rear Protector

518329979

$7.33

1800b

Central Protective Structure

518333936

$3.30

1800c

Torx Truss PT K40 x 12

250001131

$2.00

1840

Pop Rivet 3/16”

293150108

$1.19

3000

LH Front Stirup

518334924

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
