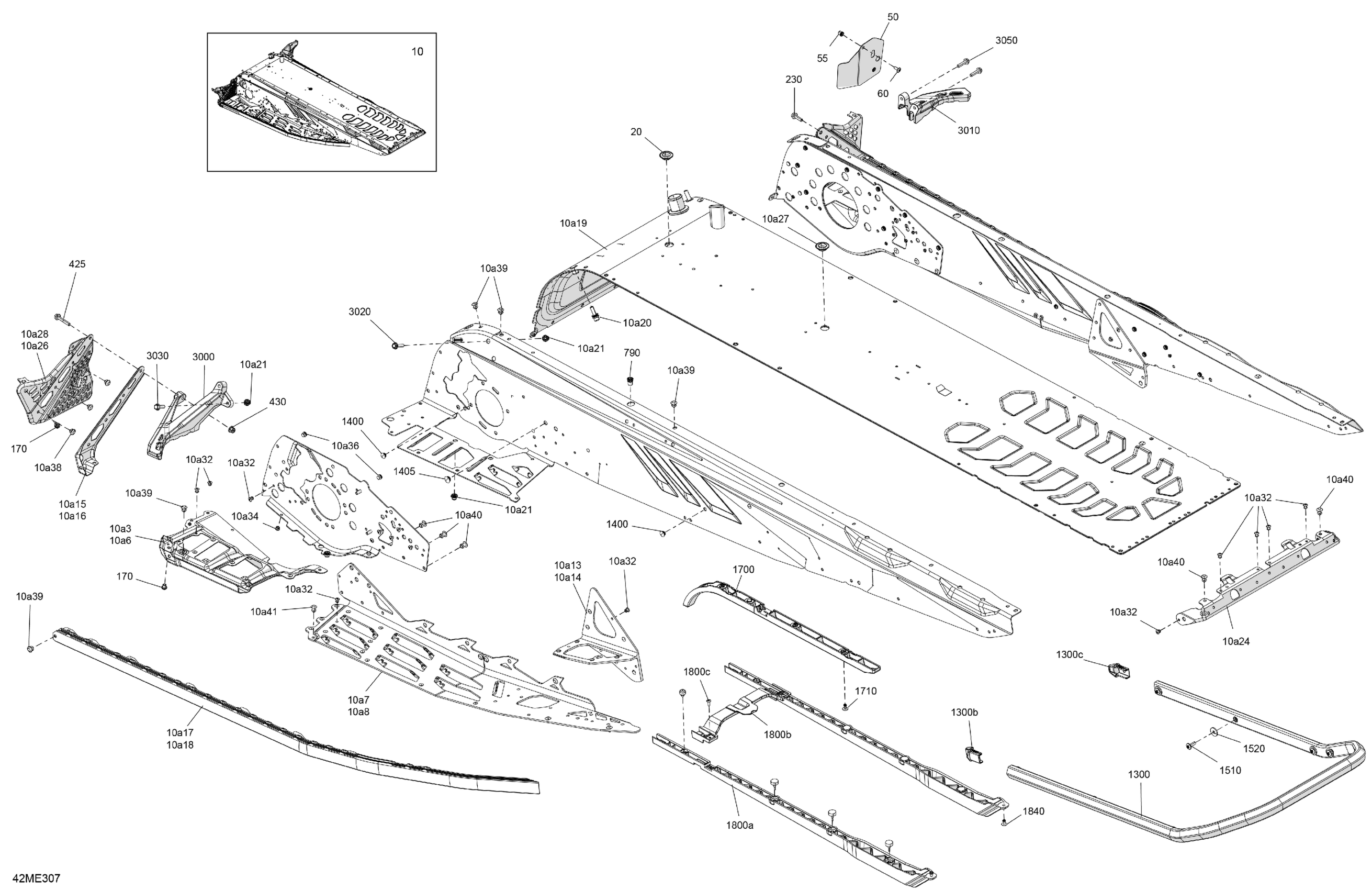

Ski-Doo RENEGADE - 900 ACE TURBO R - X-RS - DASA - Deep Black - 137X15X1.5IR Track - 2025 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 137

415130845

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

RH Footrest

518332921

$42.99

10a8

LH Footrest

518332306

$42.99

10a13

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

10a14

LH Rear Suspension Support

518334413

$45.99

10a15

Stirrup Reinforcement

518334507

$21.99

10a16

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a17

RH Roller

518329023

$194.99

10a18

LH Roller

518329024

$194.99

10a19

Radiator Tunnel 137

518335125

$720.49

10a20

Protruding Stud M8 x 22

250300652

$4.44

10a21

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a24

Rear Cap

518328990

$22.49

10a26

RH Footrest

518334509

$22.49

10a27

Black, Plug

293730052

$9.19

10a28

LH Foot Protector

518334305

$23.99

10a32

Rivet Avibulb 3/16

293150203

$2.09

10a34

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a36

Henrob Rivet

293150245

$1.69

10a38

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a39

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a41

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

1800a

Rear Protector

518329979

$9.23

1800b

Central Protective Structure

518333936

$3.69

1800c

Torx Truss PT K40 x 12

250001131

$2.11

1840

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3000

LH Front Stirup

518334924

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
