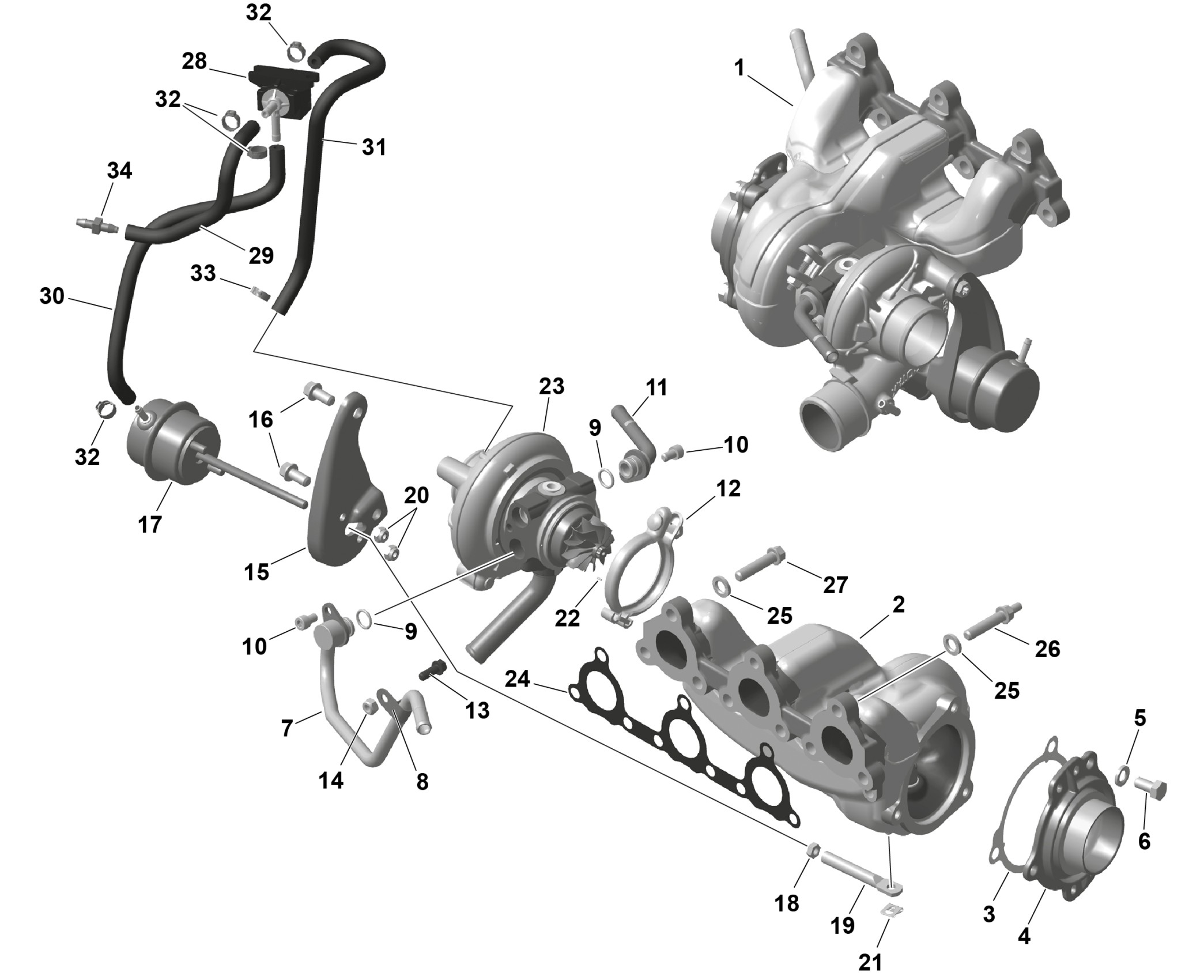

Ski-Doo RENEGADE - 900 ACE TURBO - Adrenaline - DUSA - Deep Black - 137X15X1.25RS Track - 2025 ROTAX - Turbocharger Diagram

#

Description
Price

1

Turbo Ass'y - for turbine/exhaust manifold replacement see TST 143931 | Includes no. 2-23

420893886

$1.00

2

Turbine Housing Kit 903 TURBO 130/150 HP | Includes no. 2; 12; 17-22

420912237

$799.99

3

Exhaust Gasket

420431941

$12.71

4

Exhaust Flange

420873511

$56.99

5

Washer

420827521

$5.50

6

Hex Screw M8 X 16

420940586

$19.99

7

Water Cooling Tube Ass'y

420822894

$45.49

8

Cable Clamp

420851101

$2.51

9

O-Ring

420650928

$3.17

10

Allen Screw M6 X 10

420241081

$2.11

11

Cooling Water Pipe

420622063

$45.49

12

V-Band Clamp Ass'y 58MM

420651871

$18.49

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Lock Nut M6-10

420942046

$14.22

15

Wastegate Support

420651855

$23.99

16

Torx Flange Screw M8 X 16

420440854

$4.44

17

Actuator

420867372

$147.99

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Lock Nut

420842041

$0.09

21

Circlip

420845000

$1.01

22

Needle Pin

420629310

$4.89

23

Not Available As Spare Parts

XXX

Unavailable

24

Gasket | Included in gasket kit

420431850

$15.89

25

Washer

420827521

$5.50

26

Collar Screw M8 X 35

420440693

$4.79

27

Torx Flange Screw M8 X 35

420641188

$7.41

28

Solenoid Valve

420664636

$129.99

29

Hose 390MM This part replaces 420201231.

420201233

$21.99

30

Hose 390MM This part replaces 420201231.

420201233

$21.99

31

Hose 390MM This part replaces 420201231.

420201233

$21.99

32

Clamp 9.2-10.9 mm

420853133

$3.56

33

Gear Clamp

420851468

$5.97

34

Connector Tube

420922161

$5.09
