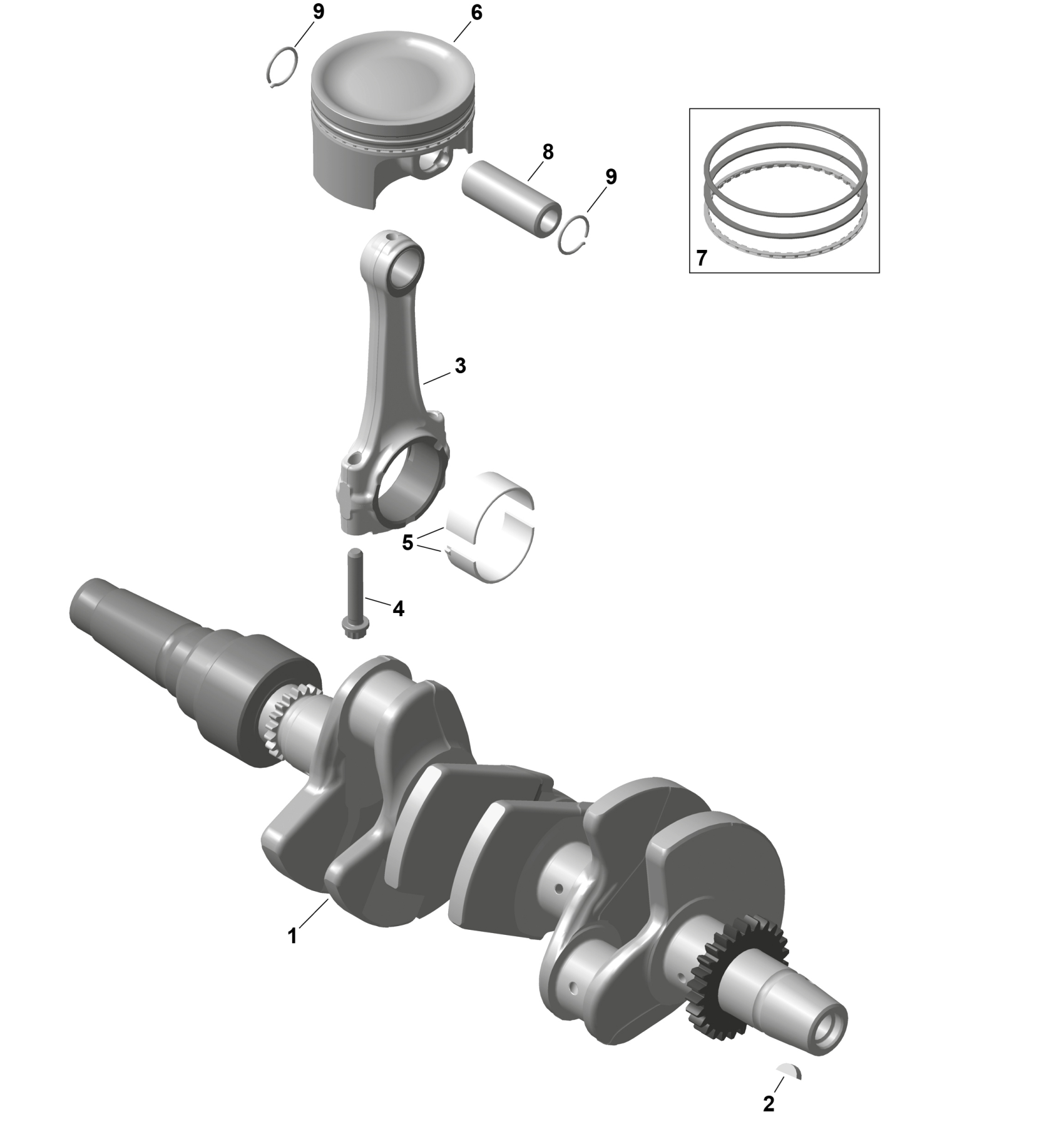

Ski-Doo North America - RENEGADE - 900 ACE TURBO - Adrenaline - DUSA - Deep Black - 137X15X1.25RS Track - 2025 01- ROTAX - Crankshaft and Pistons Diagram

Crankshaft | Includes no. 1-2

420819937

$1.00

Woodruff Key

420246571

$4.44

Connecting Rod With Cover Ass'y | Includes no. 3-4

420917523

$255.49

Connecting rod Screw M7 X 1

420641794

$15.89

Plain Bearing

420933195

$14.30

Piston Ass'y 73.958MM | Includes no. 6-7

420893970

$180.99

Piston Ring Set

420892824

$58.49

Piston Pin

420916550

$28.49

Piston Circlip

420845540

$4.89
