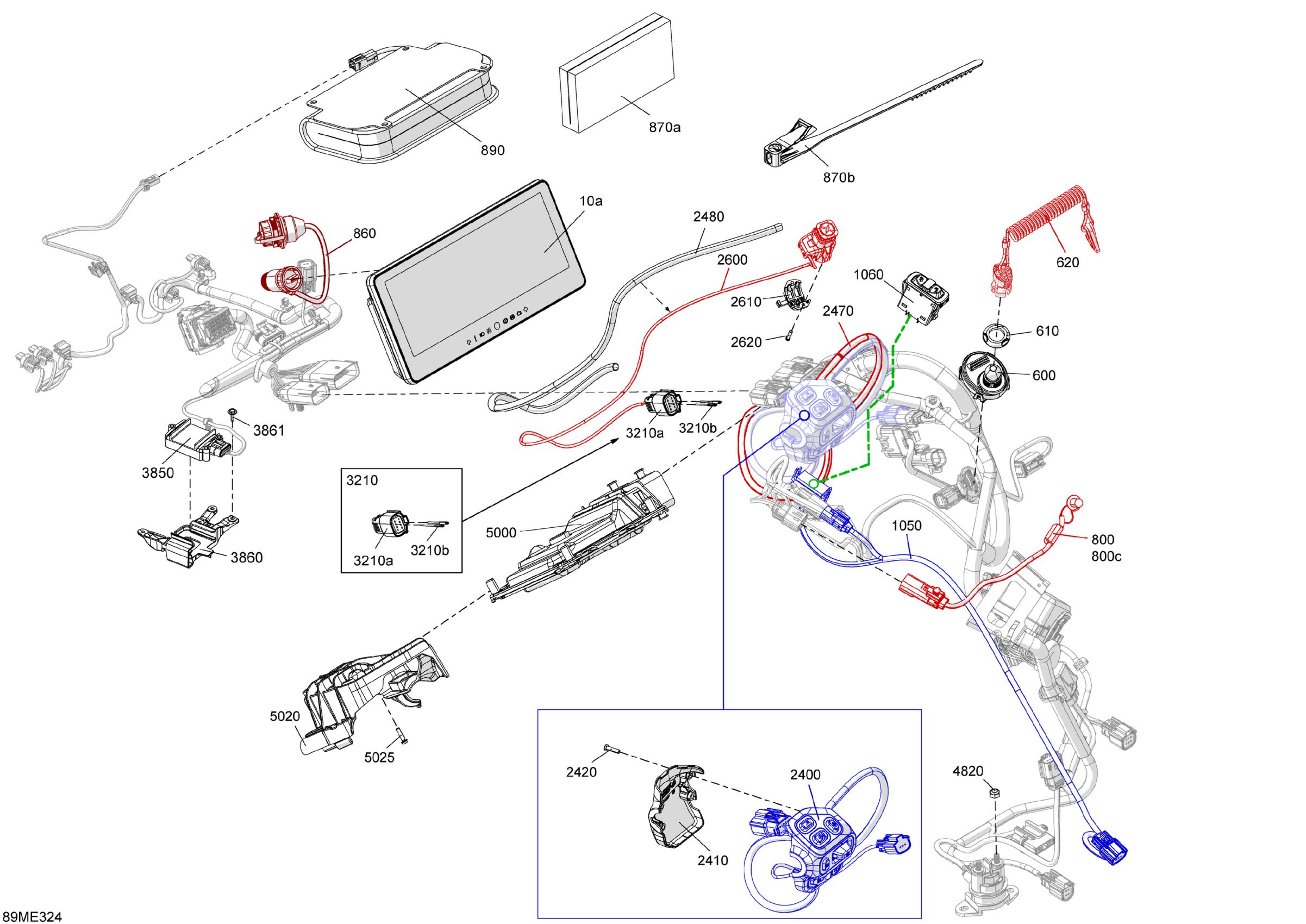

Ski-Doo North America - RENEGADE - 900 ACE - Adrenaline with Enduro Package - UNSA - Deep Black - 137X15X1.25IR Track - 2025 08- Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710009417

$2,049.99

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

610

Specialized Nut

278004274

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$26.99

800c

Cap

572103300

$10.49

860

USB Wiring Harness Ass'y

515179248

$78.99

870a

Sealed Compartment Foam

264000135

$12.99

870b

Mounting Clamp P

515179675

$4.15

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$106.49

1050

Seat Wiring Harness

515178608

$38.99

1060

Heated Seat Switch

515179490

$20.49

2400

LH Front Multifunction Switch

515179679

$199.95

2410

Rear Housing

415130659

$28.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3210

Connector Plug | Includes 3210 to 3210b

515179276

$14.28

3210a

Connector Molex Female 8 Cavities

515179228

$48.49

3210b

Sealing Cap

278002860

$1.79

3850

GPS

278004506

$109.99

3860

Module Support

515179316

$14.49

3861

Screw M4 X 16

250000725

$3.49

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
