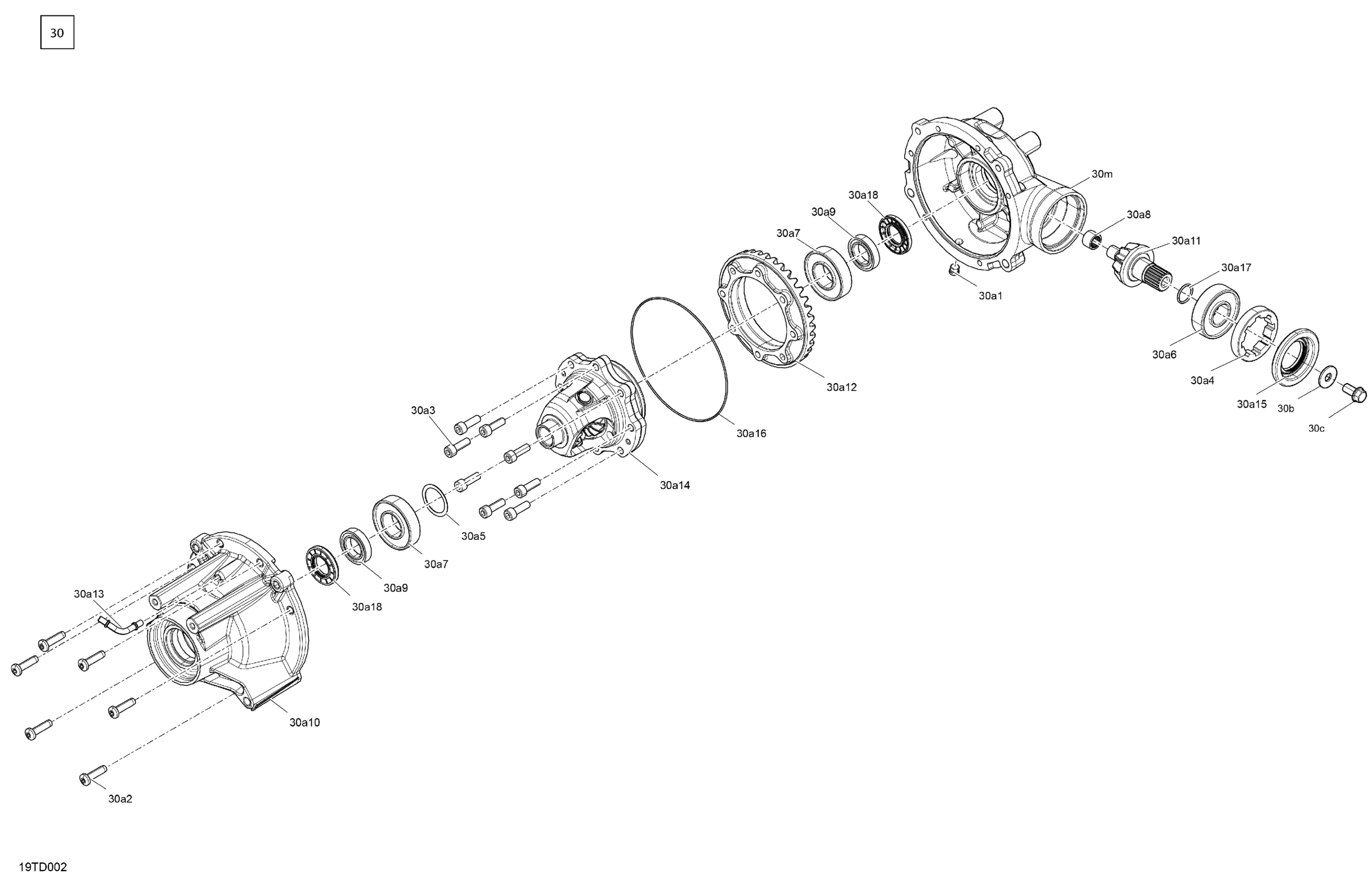

Can-Am Renegade 650 EFI - 5PRB - STD Package - Catalyst Gray, 2024 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential | Includes 8 to 31

703500907

$1,579.99

30a1

Drain Plug | After May 30, 2014

705501885

$14.22

30a2

Screw | 4X4

705401601

$10.49

30a3

Screw | After May 30, 2014

705401602

$6.19

30a4

Nut | 4X4

705401603

$35.99

30a5

Shim | 4X4

705401604

$57.99

30a6

Ball Bearing | After May 30, 2014

705401605

$31.99

30a7

Ball Bearing | 4X4

705401606

$51.99

30a8

Ball Bearing | After May 30, 2014

705402848

$49.99

30a9

Ball Bearing | After May 30, 2014

705401608

$51.99

30a10

Front Cover | After May 30, 2014

705401610

$149.99

30a11

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

30a12

Gear 36 Teeth

705402842

$409.99

30a13

Vent Valve | After May 30, 2014

705401613

$16.49

30a14

Differential | Package-STD

705402184

$977.49

30a15

Oil Seal | After May 30, 2014

705401615

$19.49

30a16

Seal | After May 30, 2014

705401616

$14.28

30a17

O'Ring | After May 30, 2014

705401617

$7.20

30a18

Gasket | 4X4

705401618

$18.49

30a19

Shim

705401769

$7.69

30a20

Shim

705401770

$7.09

30b

Flat Washer M10 | 4X4

250200014

$1.49

30c

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

30m

Front Pinion Cover | After May 30, 2014

705401792

$149.99
