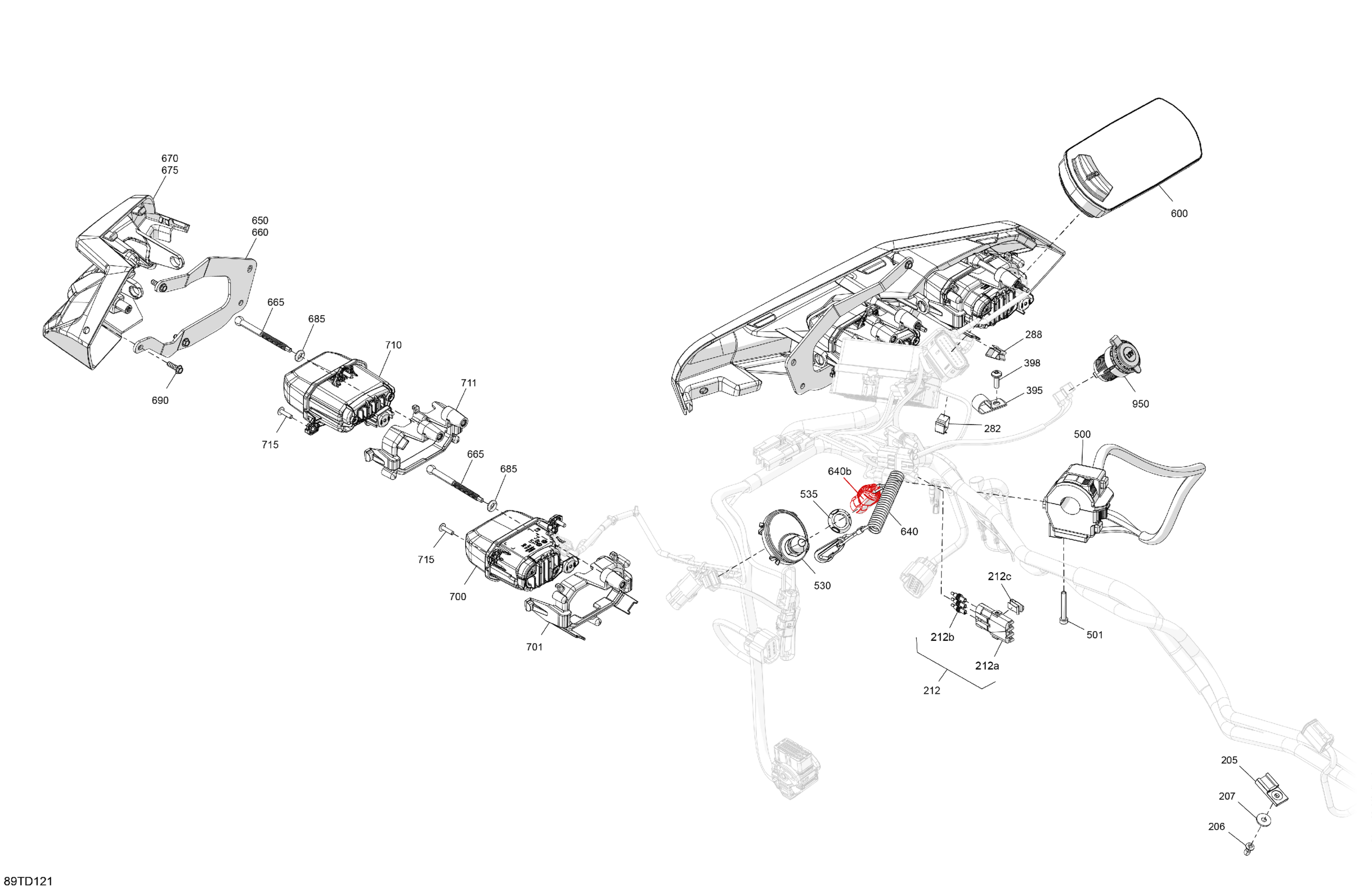

Can-Am Renegade 650 EFI - 4TRA - X MR Package - Catalyst Gray, 2024 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

212b

Wire Seal

278000216

$2.93

212c

Clip

710000992

$3.88

282

Clip

710010204

$1.40

288

Clip

710010204

$1.40

395

Open Clamp

518321570

$5.85

398

Torx Screw K50 X 16

250000720

$1.60

500

Switch Handle

710006134

$66.39

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal DESS One Wire

515179305

$69.37

535

Specialized Nut

278004274

$3.12

600

Multifunction Compact Gauge

710008298

$347.73

640

Key Dess Can-Am Ass'y | Includes 660 to 660b

710010247

$62.66

640b

Grey, Can-Am DESS Key

515179384

$53.70

650

LH Front Headlight Support

710008461

$35.04

660

RH Front Headlight Support

710008462

$35.04

665

Ajustment Screw

710005837

$5.90

670

Trim_Headlight Fl

705016529

$46.24

675

RH Front Headlight Trim

705016532

$59.67

685

O-Ring

293300192

$3.81

690

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

715

Torx-Truss Pt K40 X 16

250000759

$2.00

950

DC Outlet

710001248

$35.79
