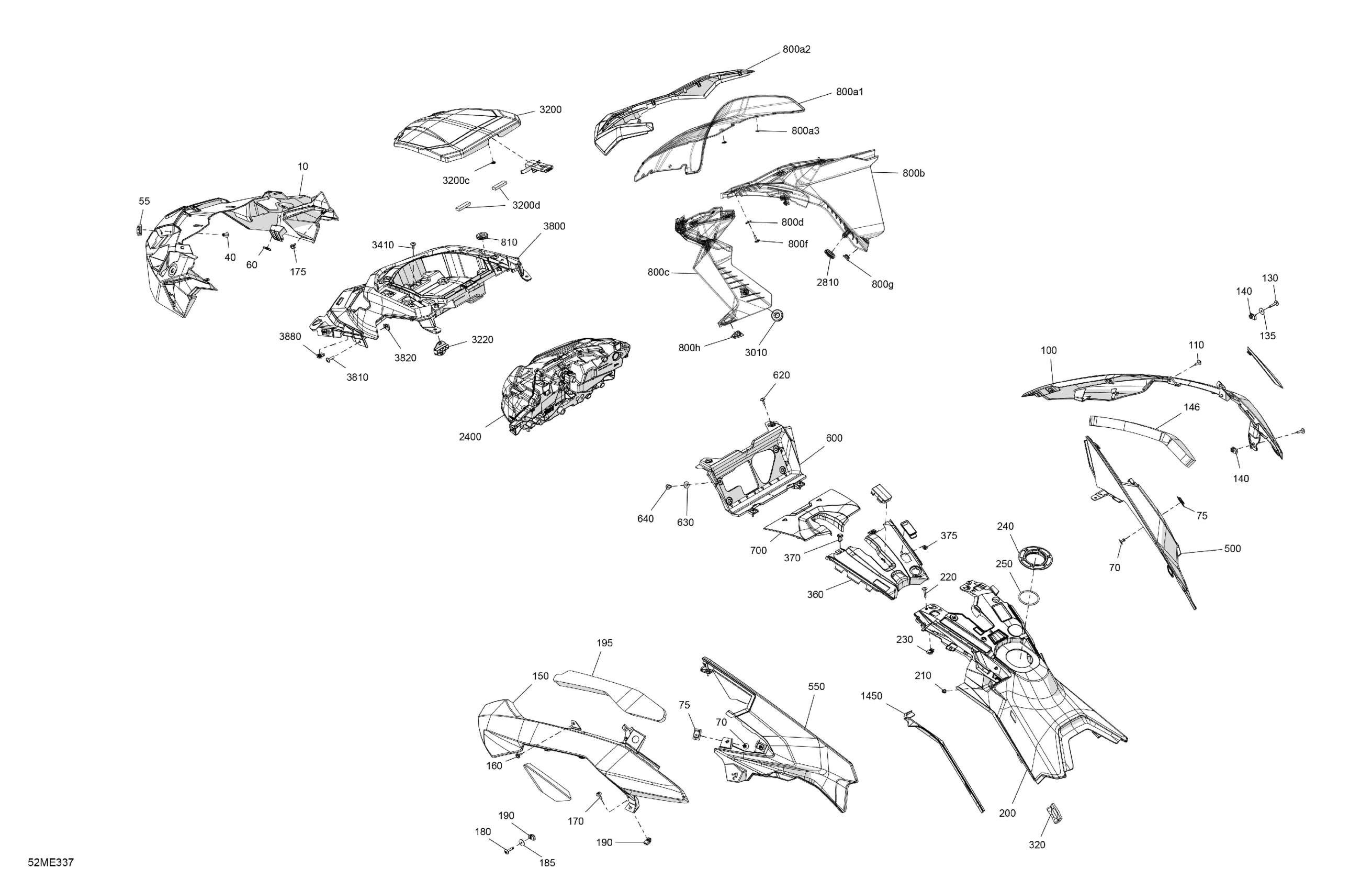

Ski-Doo North America - RENEGADE - 600R E -TEC - Adrenaline with Enduro Package - USSA - Deep Black - 137X15X1.25IR Track - 2025 07- Body - Hood Diagram

Description

Price

Center Hood

517307755

$214.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Rivet Plate

517305109

$4.99

Push Nut

508000853

$2.09

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Rivet Plate

517305109

$4.99

100

RH Front Hood

517307746

$214.99

110

Screw M4 X 16

250000725

$3.49

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$4.23

146

RH Front Hood Acoustic Insulation

517307948

$12.49

150

LH Front Hood

517307747

$214.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

175

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$4.23

195

LH Front Hood Acoustic Insulation

517307950

$13.99

200

Rear Console

517308760

$179.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

O-Ring

706002839

$1.01

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517307913

$31.99

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307751

$38.99

620

Screw M4 X 16

250000889

$3.09

630

Stainless Steel Flat Washer

234062670

$2.11

640

Torx Truss Screw M6 X 12

250000767

$2.00

700

Access Cover

517308427

$9.09

800a1

Windshield 440 MM

517307976

$159.49

800a2

Windshield Support

517307974

$39.99

800a3

Push Nut

732610072

$2.19

800b

RH Air Deflector

517307971

$32.99

800c

LH Air Deflector

517307972

$32.99

800d

Rubber Washer 4 MM

517306524

$2.32

800f

Screw M4 X 16

250000889

$3.09

800g

RH Stopper

517308989

$8.09

800h

LH Stopper

517308990

$8.09

810

Grommet

517303756

$4.09

1450

Molded Gasket

517308963

$5.49

2400

Headlight Ass'y

517309061

$569.99

2810

Grommet

517303756

$4.09

3010

Grommet

517303756

$4.09

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308231

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3880

Panel Nut M5 X 0.8

250000958

$4.23
