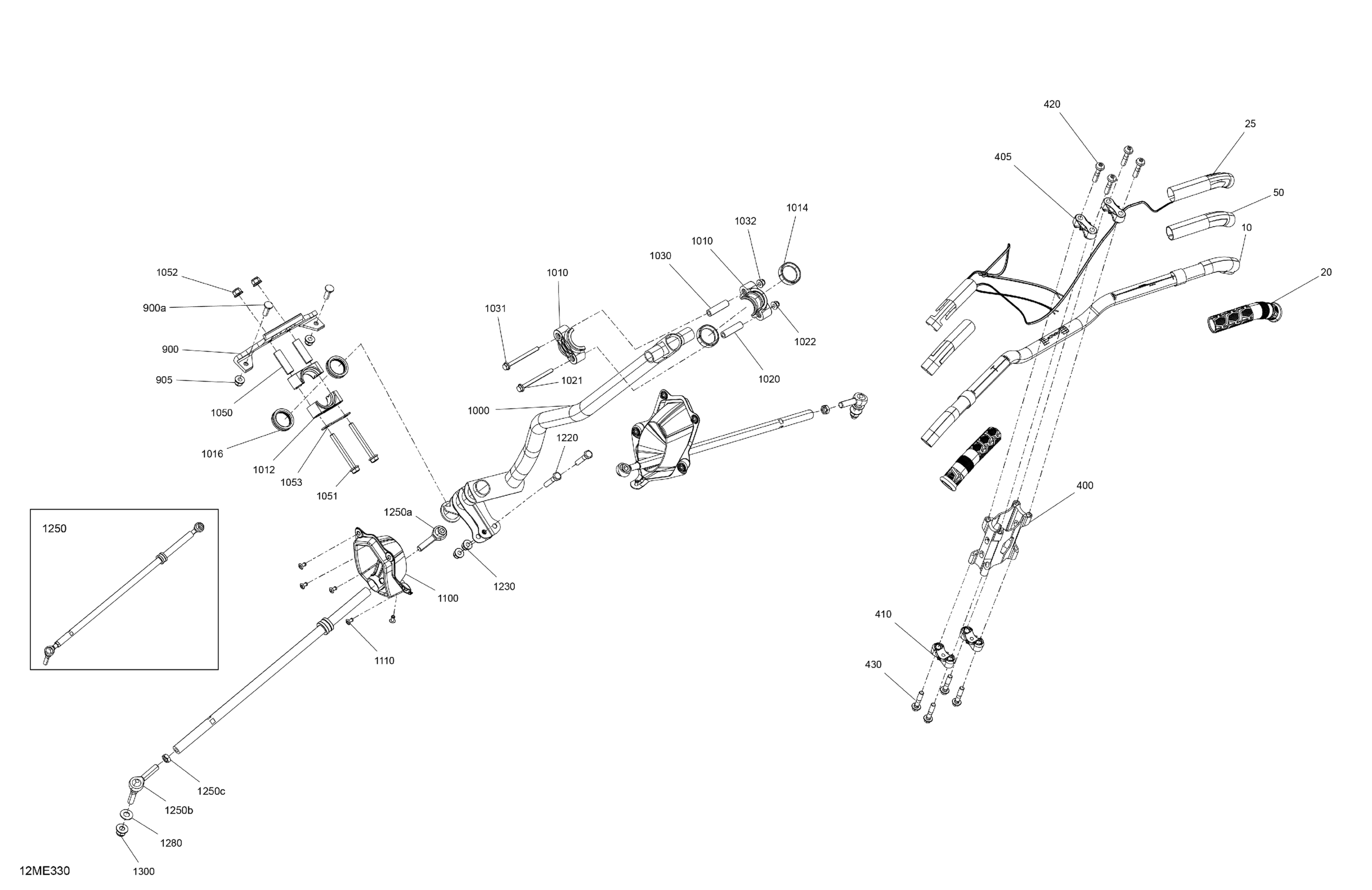

Ski-Doo North America - RENEGADE - 600R E -TEC - Adrenaline with Enduro Package - USSA - Deep Black - 137X15X1.25IR Track - 2025 03- Mechanic - Steering Diagram

Description

Price

Spartan Red, Handlebar

506153264

$121.99

Grip 148mm

506152560

$16.88

Heated Film

506152856

$48.99

Thermal Insulation

506153176

$6.09

400

Riser Kit 120

860201427

$60.49

405

Steering Support

506152894

$14.49

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

900

Support Plate | Includes 900 to 900a

506152787

$37.99

900a

Clinch Stud

250300038

$4.29

905

Hex. Elastic Flange Nut M8

233281416

$1.48

1000

Main Tube

506153024

$189.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152937

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1220

Hex. Screw M8 X 40

207084044

$1.15

1230

Hex. Elastic Flange Nut M8

233281416

$1.48

1250

Tie Rod Ass'y | Includes 1250 to 1250c

506153188

$71.99

1250a

LH Threaded Ball Joint

506152344

$41.49

1250b

RH Threaded Ball Joint

506152684

$44.49

1250c

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
