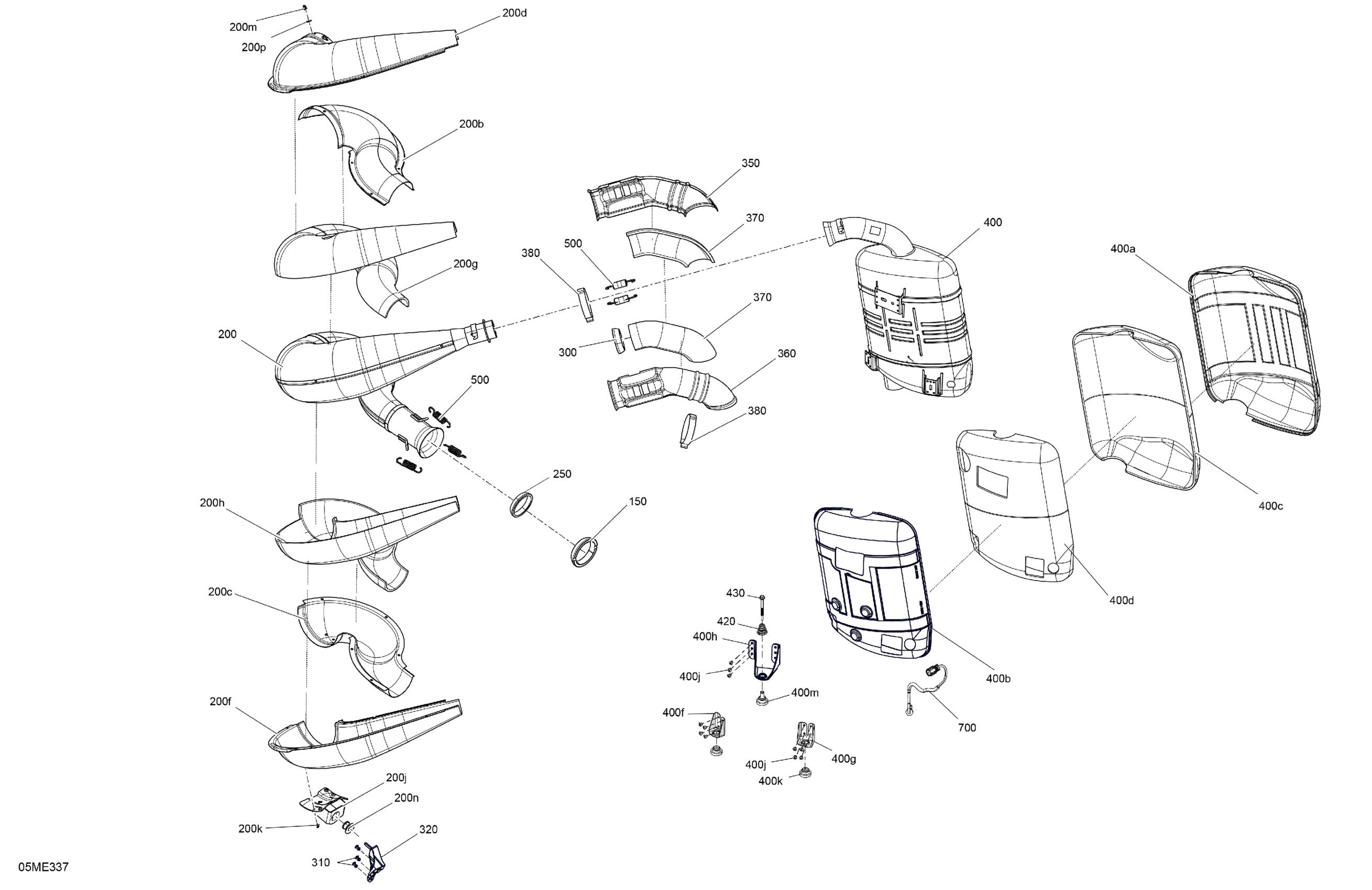

Ski-Doo North America - RENEGADE - 600R E -TEC - Adrenaline with Enduro Package - USSA - Deep Black - 137X15X1.25IR Track - 2025 02- Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

200

Tuned Pipe Ass'y | Includes 200 to 200p

514056407

$752.49

200b

Shell

514056281

$39.99

200c

Shell

514056282

$36.99

200d

Upper Rear Shell

514056420

$82.99

200f

Rear Lower Aluminum Shell

514056141

$82.99

200g

Glass Wool

514056422

$20.99

200h

Glass Wool

514056352

$7.90

200j

Plate

514055844

$5.90

200k

Avex Rivet

390909200

$0.30

200m

Avex Rivet

390909200

$0.30

200n

Vibration Damper

514056375

$11.65

200p

Washer 3/16

514055537

$1.01

200q

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

250

Seal

514055965

$19.49

300

Exhaust Gasket

514055294

$24.99

310

Ornit Rivet 6,5 X 14.5

293150266

$2.40

320

Overmolded Exhaust Support

514056346

$11.54

350

Front Shield

514055558

$40.99

360

Rear Shield

514055559

$40.99

370

Wool Glass Tail

514056381

$4.44

380

Clip

514056035

$16.18

400

Exhaust Muffler | Includes 400 to 400m

514056428

$784.49

400a

RH Deflector

514055980

$58.99

400b

LH Deflector

514056315

$63.99

400c

Glass Wool

514056353

$19.99

400d

Glass Wool

514056354

$8.39

400f

Exhaust Support

514056246

$17.39

400g

Rear Muffler Support

514056038

$6.39

400h

Exhaust Support

514056248

$18.49

400j

Pop Rivet 3/16 X ,425

293150293

$0.35

400k

Stopper

514055203

$20.49

400m

Stopper Ass'y

514056138

$13.22

400p

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Exhaust Temperature Sensor

514056266

$137.99
