Partiron

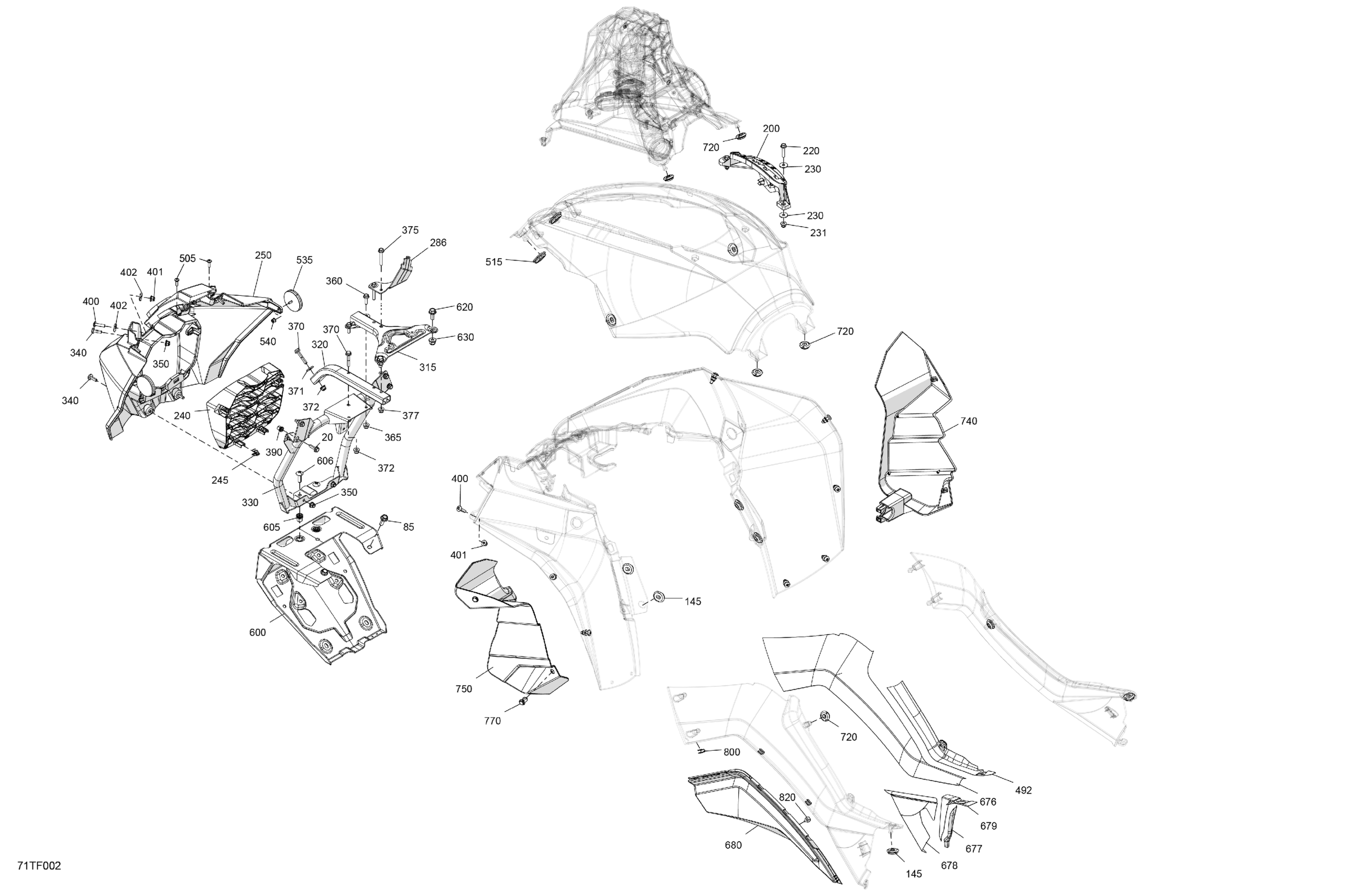

Can-Am RENEGADE - 4X4 - XMR - 650 EFI - 5TTA - Catalyst Gray - 2026 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

145

Oval Washer

705000321

$5.61

200

Lever Indicator

705003838

$28.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

231

Flange Elastic Nut M6

233261434

$4.44

240

Air Inlet Grille

705016533

$26.99

245

Clip

517306478

$1.09

250

Front Fascia

705016535

$45.99

286

fuse Box Support

705018076

$35.99

315

Bracket

705003599

$24.49

320

Upper Sectional Bent Tube

705016534

$109.99

330

Front Fascia Support

705017182

$144.99

340

Torx Screw M6 X 20

250000712

$2.11

350

Flange Elastic Nut M6

233261434

$4.44

360

Hex. Flange Screw M6 X 20

207662054

$1.01

365

Flange Elastic Nut M6

233261434

$4.44

370

Hex. Flange Screw M6 X 35

207663544

$0.90

371

Flat Washer

224061201

$1.37

372

Flange Elastic Nut M6

233261434

$4.44

375

Hex. Flange Screw M6 X 40

207664044

$2.22

377

Flange Elastic Nut M6

233261434

$4.44

390

Insert

293450275

$12.99

400

Torx Screw M6 X 25

250000758

$2.11

401

Flange Elastic Nut M6

233261434

$4.44

402

Flat Washer

224061201

$1.37

492

Heat Shield

705010559

$8.89

505

Torx Screw K50 X 16

250000720

$1.69

515

Oblong Grommet

705003668

$5.79

535

Amber Reflector

705017809

$14.49

540

Hex. Flange Elastic Nut M5

233251414

$1.04

600

Front Skid Plate

705017338

$317.99

605

Insert Half Hex Body M8 x 1.25

293450307

$2.69

606

Torx Truss M8 X 25

250000874

$2.11

620

Hex. Flange Screw M8 X 20

207682044

$1.15

630

Hex. Flange Elastic Nut M8

233281434

$2.11

676

Reflective Sheet

705005620

$12.99

677

Heat Shield

705010557

$10.49

678

Reflective Sheet | Outlander

705005622

$3.89

679

Heat Shield

705010558

$10.49

680

Panel Extension

705004988

$15.49

720

Grommet

705003264

$4.09

740

RH Front Wheel Arch Protector

705017922

$26.99

750

LH Front Wheel Arch Protector

705017926

$26.99

770

Tuflok Plastic Rivet

293150230

$1.47

800

Clip

414479100

$1.90

820

Rubber Bumper

293830005

$8.09
